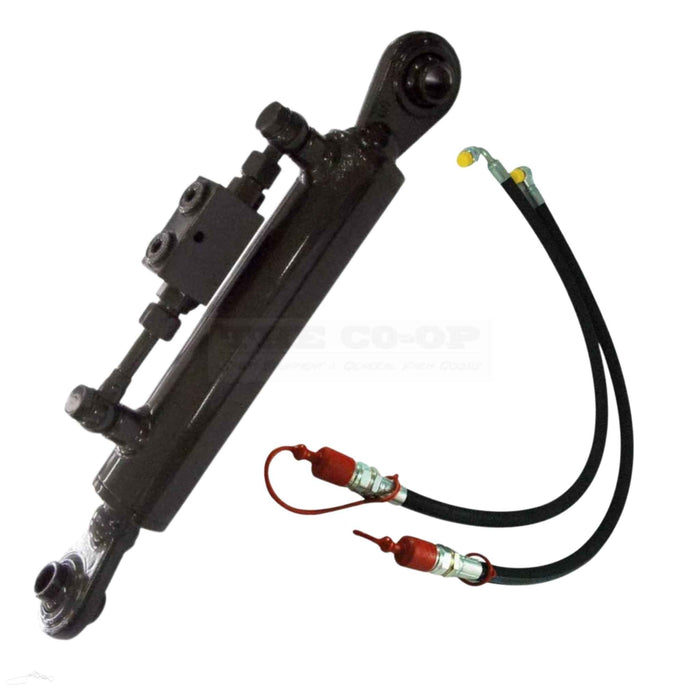

Cat 2 Hydraulic Top link with Hose Kit (550/830mm Stroke)

Sold out
Original price $492.00 - Original price $492.00
Original price
$492.00
$492.00 - $492.00
Current price $492.00

Category 2 Hydraulic Top Link with double-piloted check valve (Lock out) prevents cylinder drift and holds cylinder in position. This Standard feature makes our hydraulic top link the best in the market!

The following two measurements are general guidelines, calculated on a working pressure of 150 Bar (2175 psi):

  • Pushing capacity: 3040 Kg (6700 lbs)
  • Pull capacity: 1950 Kg (4300 lbs)

Detail

Category: 2 Pin (d): 25.4mm (1")
Eye length (A): 65mm
Min length: 530mm (21 5/8")
Max length: 810mm (32 11/16")
Stroke: 280mm (11 1/16"")
Cylinder bore : 50mm (2")
Rod : 30mm (1 3/16")

Features

  • Double-piloted check valve
  • Ports 3/8" BSP (Includes BSP male to NPT male adapters)
  • Double-acting cylinder
  • High-quality chrome plated & polished rod
  • Honed & finished steel tube
  • Top quality seals
  • Pressure tested
  • 1 year warranty
  • Color - graphite

Made in Italy
