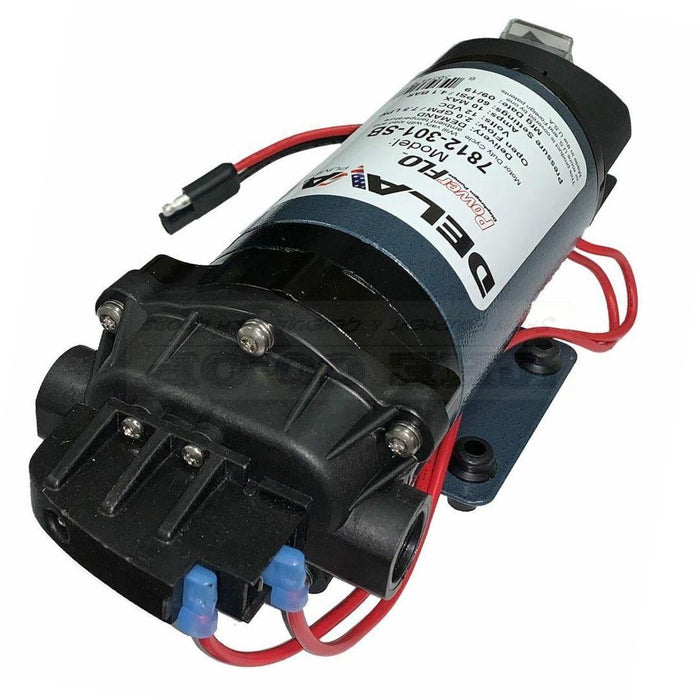

Delavan 7812-301 pump image

Delavan 7812 Pump with on/off switch (7.5 L/min 4 Bar)

Sold out
$345.20
$345.20 - $345.20
$345.20
$130.00
$130.00 - $130.00
$130.00

Features:

• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• On/Off Switch
• 100% Factory tested
• 2 Year warranty from date of purchase

Pump:

• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 60°C Max.
• Priming Capabilities: 3m
• Max. Flow: 7.5 L/min
• Pressure Shut-Off: 4 Bar (60 PSI)
• Inlet/Outlet Ports: 3/8” FNPT
• Weight: 2.8 Kg

Motor:

• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 10
• Duty Cycle: See Heat Rise graph

Materials of Construction:

• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

NSF/ANSI Certified:

• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act

Need a suction filter for this pump CLICK HERE
