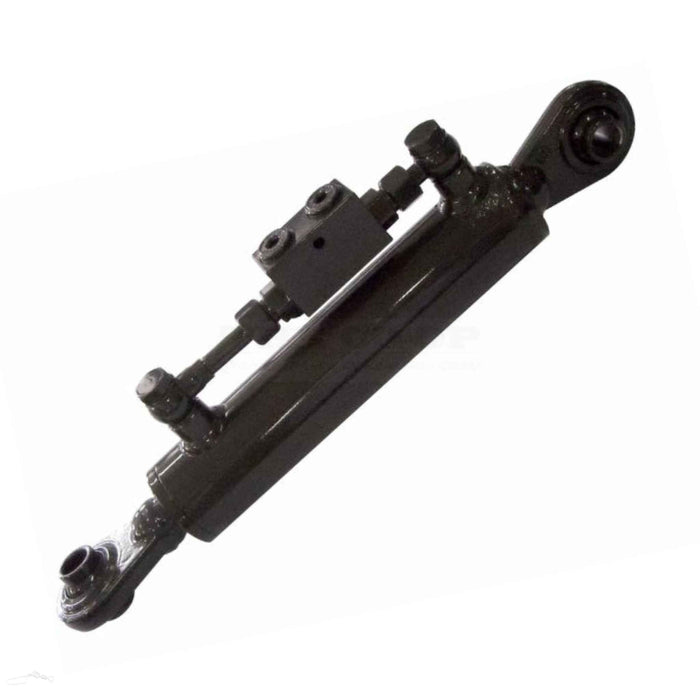

Cat 1. Hydraulic Top link with hose kit (530/810mm Stroke)

Category 1 Hydraulic Top Link with double-piloted check valve (Lock out) prevents cylinder drift and holds cylinder in position.

The following two measurements are general guidelines, calculated on a working pressure of 150 Bar (2175 psi):

• Pushing capacity: 3040 Kg (6700 lbs)
• Pull capacity: 1950 Kg (4300 lbs)

Detail

Category: 1Pin (d): 19mm (3/4")
Eye length (A): 60mm
Min length: 530mm (20 7/8")
Max length: 810mm (31 7/8")
Stroke: 280mm (11")
Cylinder bore : 50mm (2")
Rod : 30mm (1 3/16")

Features

• Double-piloted check valve
• Ports 3/8" BSP (Includes BSP male to NPT male adapters)
• Double-acting cylinder
• High-quality chrome plated & polished rod
• Honed & finished steel tube
• Top quality seals
• Pressure tested
• 1 year warranty
• Color - graphite
