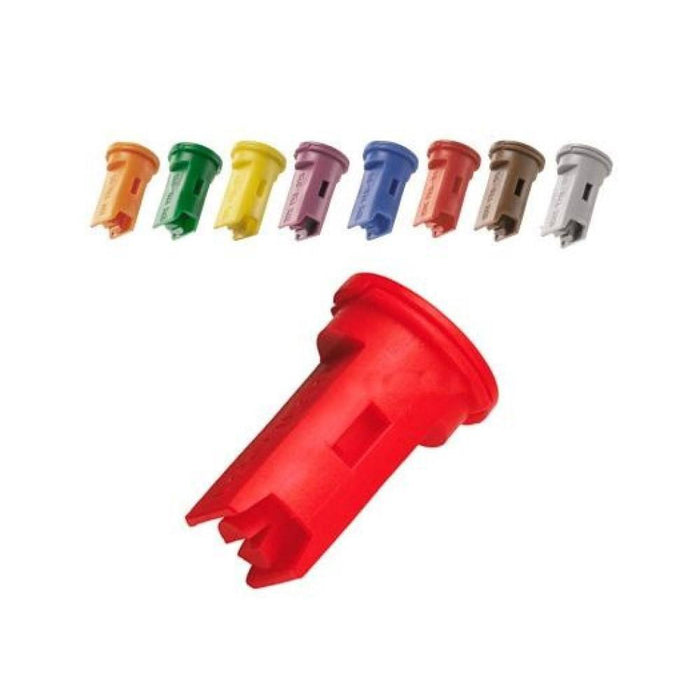

Lechler IDK Compact Air Induction - Low Drift fan Spray tips

Very Low drift, compact air injector flat spray nozzle with wide droplet spectrum from Ultra coarse to medium (pressure dependent).

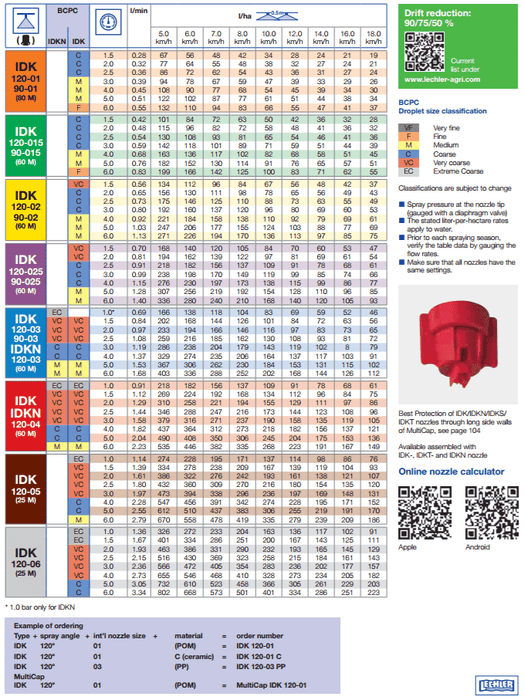

Boom spraying rate from 47 to 283 L/Ha at 10 Kph using 3 Bar pressure (this is for spray booms with nozzle spacing of 50cm). For more Spray boom calibration chart figures CLICK HERE (chart opens in a new screen)

• Fits Standard TeeJet style Nozzle cap
• Use to replace TeeJet AIXR
• Air-aspirating flat- boom spray nozzle
• wide operating pressure range
• Very low drift potential and loss-reducing effect in pressure range up to 3.0 bar (according to size)
• At pressures above 3 bar- less drift resistance than other well-known nozzles- i.e.- coarse to medium droplet size characteristic
• Very compact design (8 mm width across flats- 22 mm long)
• Fits all bayonet cap systems with 8 mm AF and threaded caps
• Combines with IDKS end nozzle (of equal size)- for sharply defined edges

• Made of moulded POM* resin (a polymer ensuring high chemical stability and an exceptionally long useful life).

*POM or Polyoxymethylene (Acetal) is a high strength, low friction engineering plastic that has excellent wear properties in both wet and dry environments and is chemically resistant to hydrocarbons, solvents, and neutral chemicals.
