Which Boom Sprayer Nozzle Bodies do I need? there's so many sizes
When it comes to selecting the right boom sprayer nozzle bodies, the variety of sizes and compatibility can be overwhelming. Different brands like TeeJet, Arag, and Geoline offer interchangeable nozzle caps, while Hardi and Wilger have unique bodies that require conversion caps for compatibility with TeeJet style nozzles.
What are the Pipe Size Measurements for Boom Sprayer Nozzle Bodies?
Pipe sizes for boom sprayer nozzle bodies are typically measured in imperial BSP (British Standard Pipe) sizing. This measurement system can be confusing for those more familiar with metric measurements like millimeters (mm).
What is BSP and how did BSP come about?
BSP was developed by Sir Joseph Whitworth in 1841, aiming to create a standardized, self-sealing thread connection for pipes. BSP stands for British Standard Pipe, a common thread standard for connecting pipes and fittings, particularly in the United Kingdom and Commonwealth countries. The BSP system defines the thread form and size, not the actual physical dimensions of the pipe. BSPP threads are parallel, while BSPT threads are tapered.
Does BSP measure internal or external diameter?
BSP sizing is based on the nominal bore of the pipe, which is the approximate internal diameter. This means that the BSP size designation (e.g., 1/2") does not correspond to the actual external diameter of the male thread or the internal diameter of the female thread. For example, a 1/2" BSP thread might have an external diameter of approximately 20.955mm (0.825")
How do Imperial BSP Pipe Sizes Compare to Metric Measurements in mm?

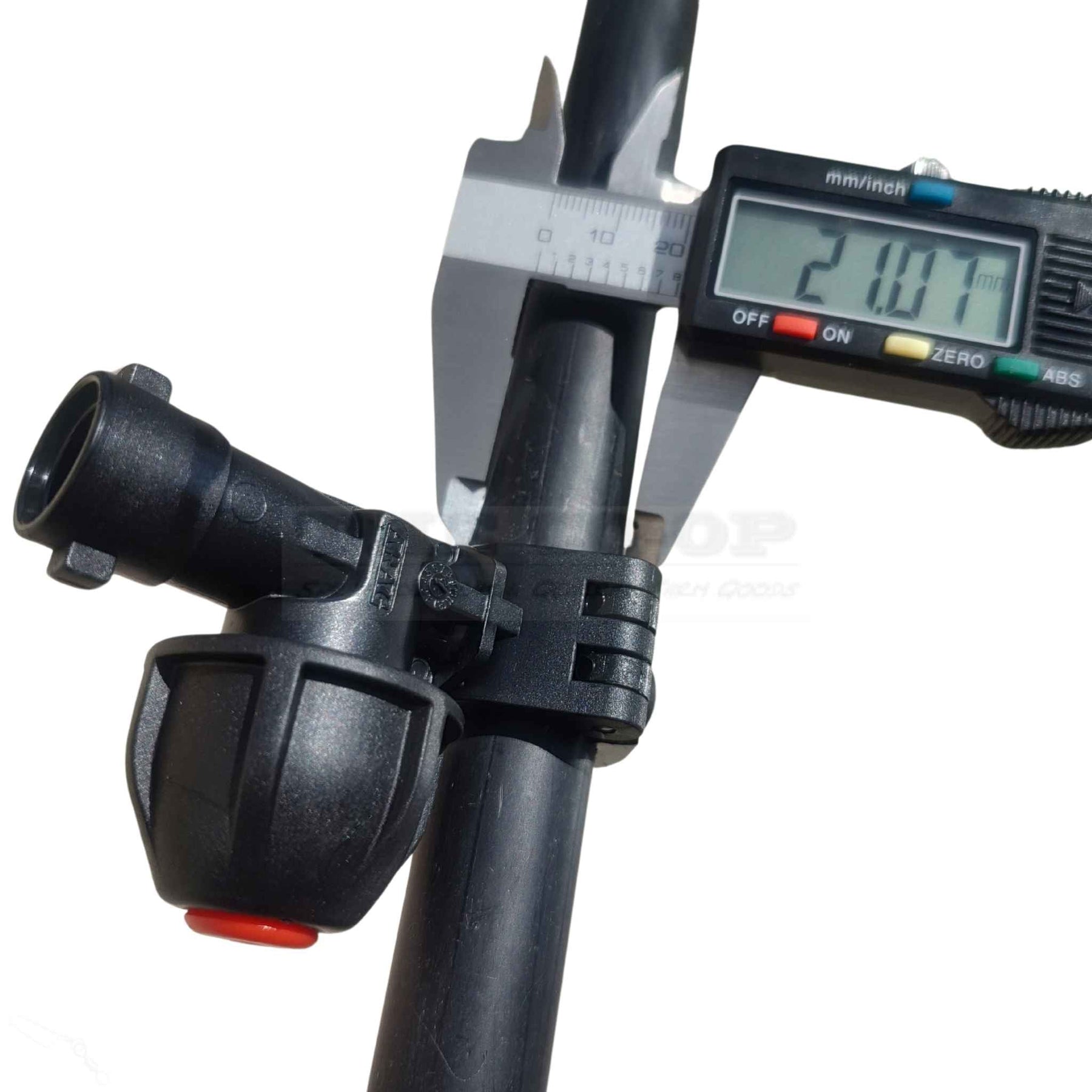

Imperial BSP pipe sizes do not directly correlate to millimetre measurements. However, it's essential to understand the conversion to ensure compatibility with different components. For example, a 1/2 inch BSP pipe is approximately 21.4 mm in diameter, while a 3/4 inch BSP pipe is around 26.7 mm and 1" is 33.6mm
What is the Compatibility Between Nozzle Bodies from Different Brands?
TeeJet, Arag, and Geoline offer interchangeable nozzle caps that fit the same standard size. This interchangeability provides flexibility for users who may have a mix of equipment from these brands. On the other hand, Hardi and Wilger nozzle bodies are unique and do not directly interchange with other brands without the use of conversion caps.
Do Hardi and Wilger Nozzle Bodies Require Conversion Caps for Compatibility?
Yes, to use TeeJet style nozzles with Hardi and Wilger nozzle bodies, conversion caps are necessary. These conversion caps allow for the standard TeeJet nozzles to be attached to the unique bodies of Hardi and Wilger equipment, ensuring proper functionality and performance.
Being aware and understanding the compatibility and sizing differences between boom sprayer nozzle bodies is crucial for selecting the correct product to purchase along with efficient and effective spraying operations. By selecting the right components and ensuring proper compatibility, users can optimize their equipment for the best results in agricultural applications.
