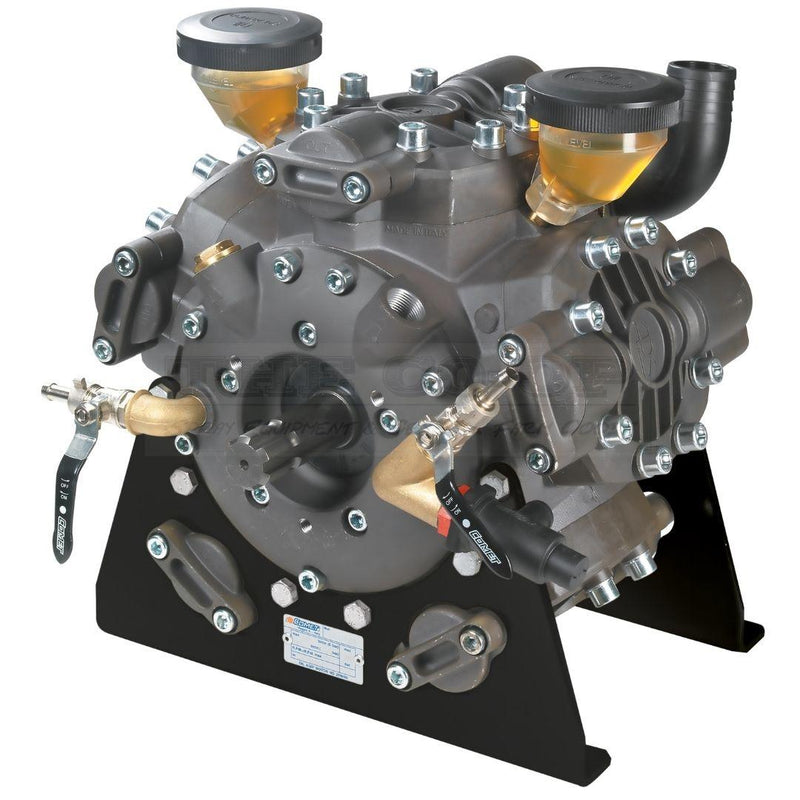

Genuine Silvan APS166 High Pressure Diaphragm Pump – Orchard, Vineyard & Pest Control
The Silvan / Comet APS166 is a heavy-duty, high-pressure five-diaphragm pump built for the most demanding commercial spraying operations — including large-scale orchard and vineyard air-blast spraying, broadacre pest control, and professional weed management. A step up from the APS121, the APS166 delivers greater flow capacity for high-volume rigs and multi-gun setups.
Built on the proven Comet APS platform, the APS166 features a 5-piston, semi-hydraulic, five-diaphragm design with an anodized aluminium crankcase and hardened stainless steel valve seats. It delivers up to 50 bar (725 PSI) and a rated flow of 163 L/min at a maximum shaft speed of 550 RPM. The Z6 spline input and output shafts allow direct PTO connection and simultaneous drive of ancillary equipment such as a blower fan — ideal for air-assist orchard and vineyard rigs.
The APS166 is self-priming, dry-run safe, and compatible with a wide range of agricultural chemicals including liquid fertilisers, pesticides, herbicides, fungicides, and suspension concentrates — making it equally suited to a large vineyard spray program or a commercial pest control fleet.
Features
- 5-piston, semi-hydraulic, five-diaphragm pump — high-volume output for large commercial rigs
- Maximum pressure: 50 bar (725 PSI) — handles high-pressure orchard and canopy penetration requirements
- Rated flow: 163 L/min at 550 RPM — suited to multi-gun and high-volume spray setups
- Z6 spline PTO shaft (1 3/8") input and output — drives blower fan simultaneously on air-assist rigs
- Anodized aluminium body with hardened stainless steel valve seats — corrosion-resistant for chemical compatibility
- Self-priming and dry-run safe — no damage if the tank runs low in the paddock
- Compatible with pesticides, herbicides, fungicides, liquid fertilisers, suspension products, and de-icing materials
- Large-capacity oil bath crankcase — extended service intervals for contractor use
- Maximum input: 11.3 kW (15.1 HP)
- Supplied with hose connections, mounting base plates, and 1 3/8" six-spline shaft
- 1-year warranty on manufacturer defects
Product Specs
