Brown - Polymer – Lechler IDK Compact Air Induction - Low Drift fan Spray tips

High Precision German quality manufacture.

When drift costs you coverage and compliance, the Lechler IDK (POM) is the nozzle that delivers. A compact air induction flat fan tip engineered for very low drift across a wide pressure range — from ultra-coarse at low pressure to medium droplets at higher pressures. Trusted by broadacre farmers across Australia for herbicide, fungicide, and insecticide applications.

Key Features

• Very low drift potential — proven performance
• Wide operating pressure range — 1 to 6 bar
• Compact design: 8 mm width across flats, 22 mm long
• Fits standard TeeJet-style nozzle caps and all bayonet cap systems with 8 mm AF and threaded caps
• Direct replacement for TeeJet AIXR — same calibration rates
• Pairs with IDKS end nozzle (same size) for sharply defined boom edges

Application Rate

At 10 km/h and 3 bar with 50 cm nozzle spacing: 235 L/Ha depending on tip size.

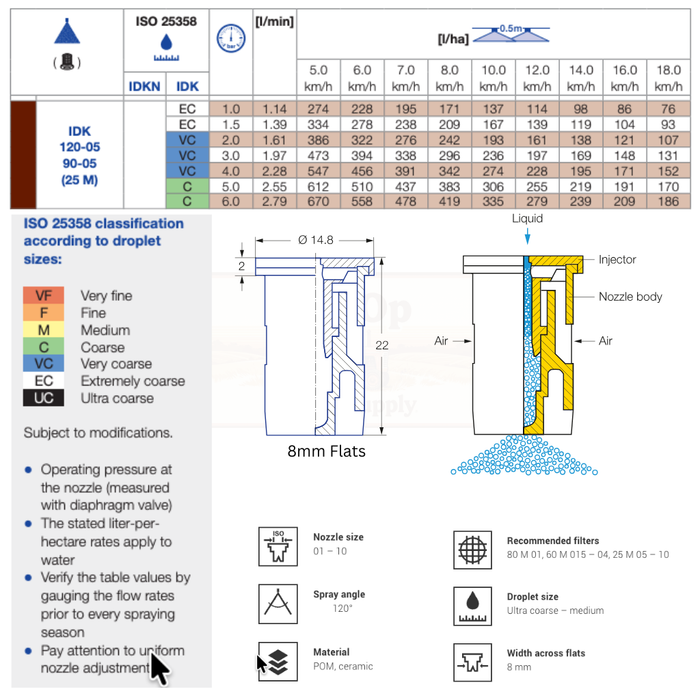

→ Download the full calibration chart (PDF)

Material

• Polymer (POM) — High-strength Polyoxymethylene (Acetal) resin. Excellent chemical resistance to hydrocarbons, solvents, and neutral chemicals. Low friction, long service life in wet and dry conditions.

• Brown — 05 (2.00 L/min)

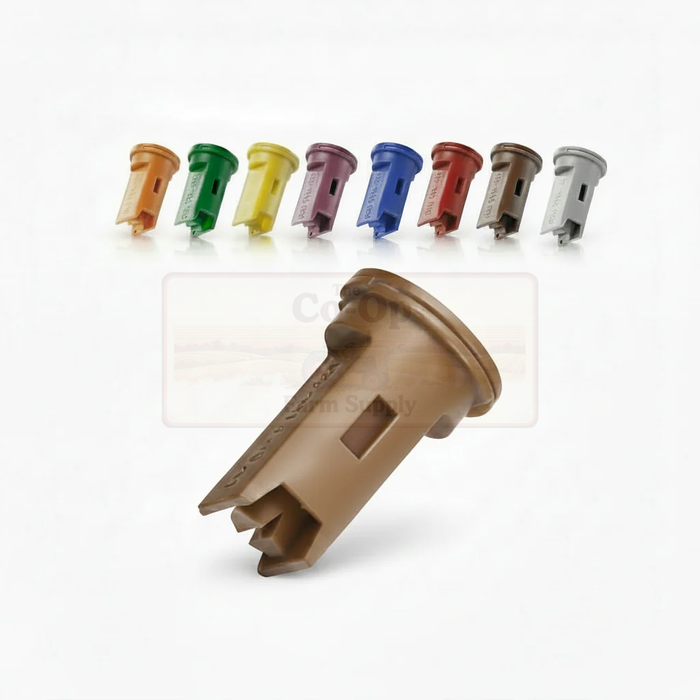

Other sizes available

• Orange — 01 (0.40 L/min)
• Green — 015 (0.60 L/min)
• Yellow — 02 (0.80 L/min)
• Violet — 025 (1.00 L/min)
• Blue — 03 (1.20 L/min)
• Red — 04 (1.60 L/min)
• Grey — 06 (2.40 L/min)
• White — 08 (3.20 L/min)
• Aqua — 10 (4.00 L/min)

Suitable Applications
