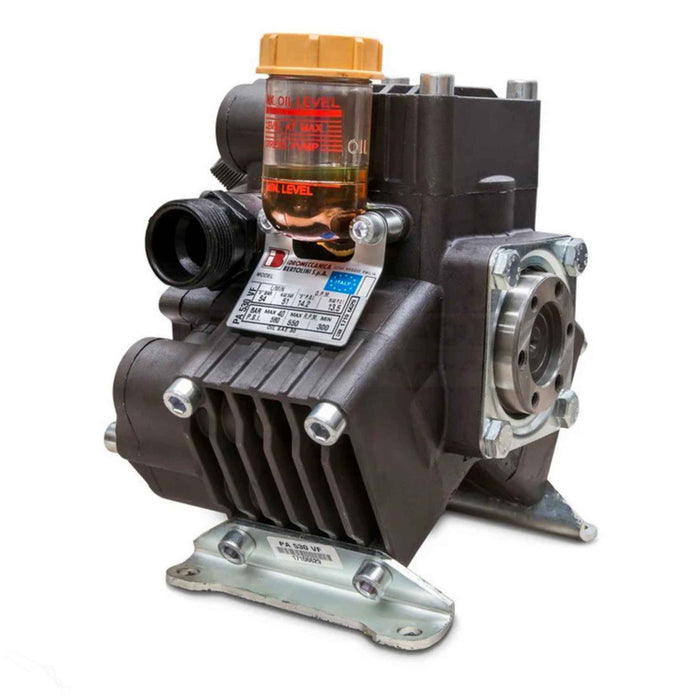

Bertolini PA530-VF Diapraghm Pump.

The Bertolini PA530 is designed for semi high pressure agricultural spraying applications, Pesticide, Boom Spraying, Spot Spraying applications.

3 piston semi-hydraulic diaphragm pumps engineered for a smoother and quieter operation.

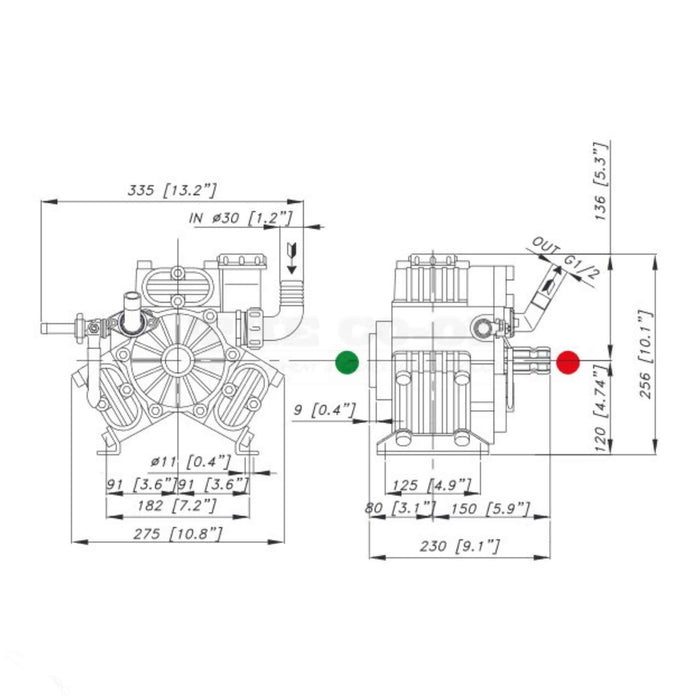

Medium pressure pump (up to 40 bar - 580 P.S.I.) and medium flow rate (54L/min), in light alloy, compact design and fitted with mounting rails.

All moving parts are completely submerged in oil. Piston sleeves are made of self-lubricating cast iron; 2 piston rings for each piston are used to deliver high volumetric efficiency. All parts in contact with spray material are anodized and the check valves are in stainless steel.

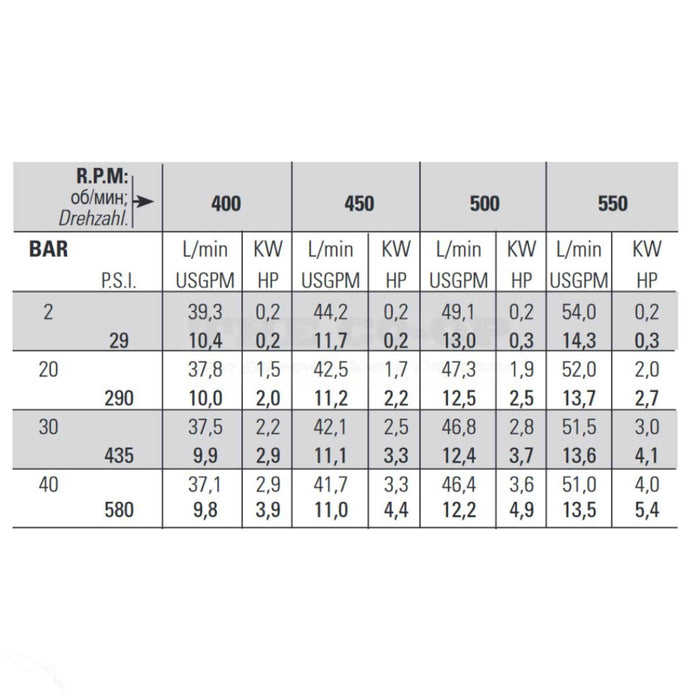

• 54 L/min
• 40Bar (580 PSI)
