Lower Link Implement Pin 28mm x 149mm – Cat. 2, 3/4" UNF Thread | Sparex S.197

Lower Link Implement Pin – 28mm x 149mm, Cat. 2

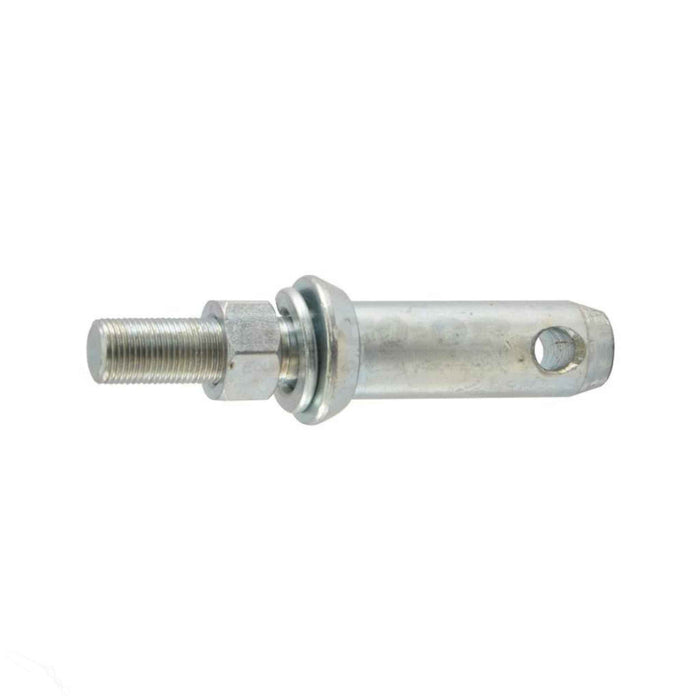

Quality EN8 steel lower link implement pin (Part No. S.197) for Category 2 three-point linkage. Features a 3/4" UNF threaded end for secure implement mounting, making it a reliable direct-fit replacement for a wide range of tractors.

Specifications

• Pin Ø: 28mm (1-1/8")
• Working Length: 60mm (2-3/8")
• Overall Length: 149mm (5-7/8")
• Thread Size: 3/4" UNF
• Thread Length: 54mm
• Hole Ø: 12mm (1/2")
• Material: EN8 Steel
• Pin Type: Implement Attachment
• Category: Cat. 2 (Ø28mm)
• Duty: Standard

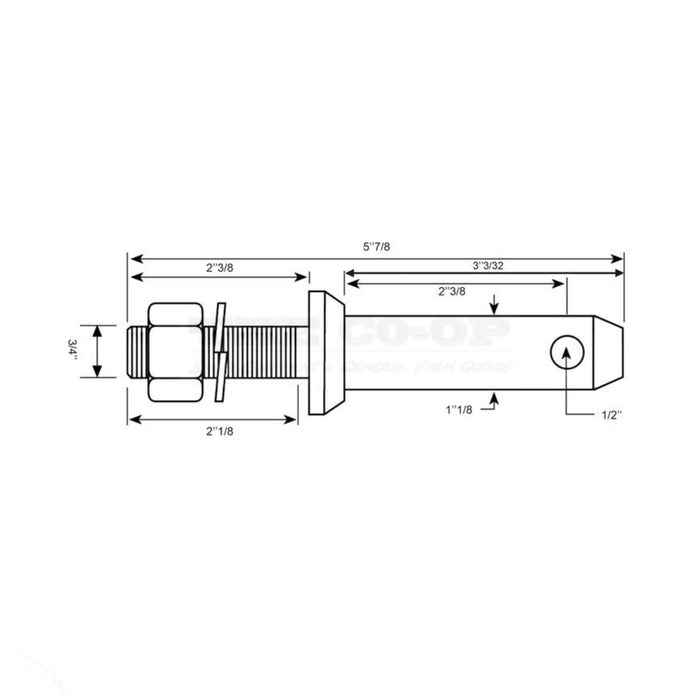

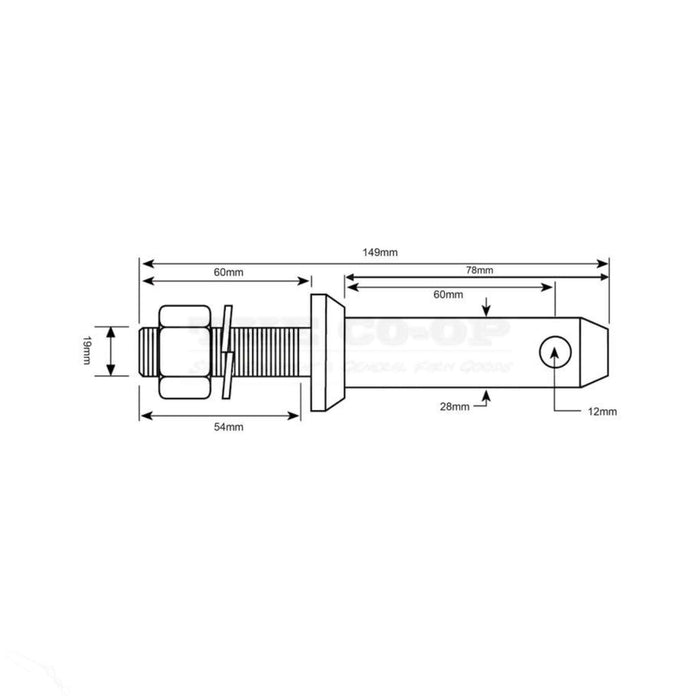

Diagram Specifications

• (A) Pin Ø: 28mm (1-1/8")
• (B) Working Length: 60mm (2-3/8")
• (C) Overall Length: 149mm (5-7/8")
• (E) Hole Ø: 12mm (1/2")
• (F) Thread Length: 54mm
• (G) Thread Size: 3/4"
