Radiator – Suitable for Case IH / IH 248, 258, 385, 484, 485, 584, 585, 684, 685, 784, 785, 884, 885 & More

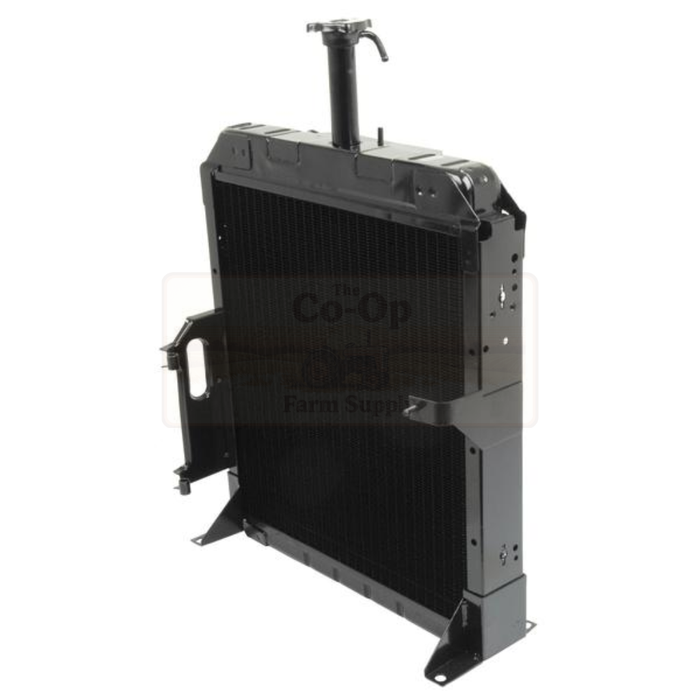

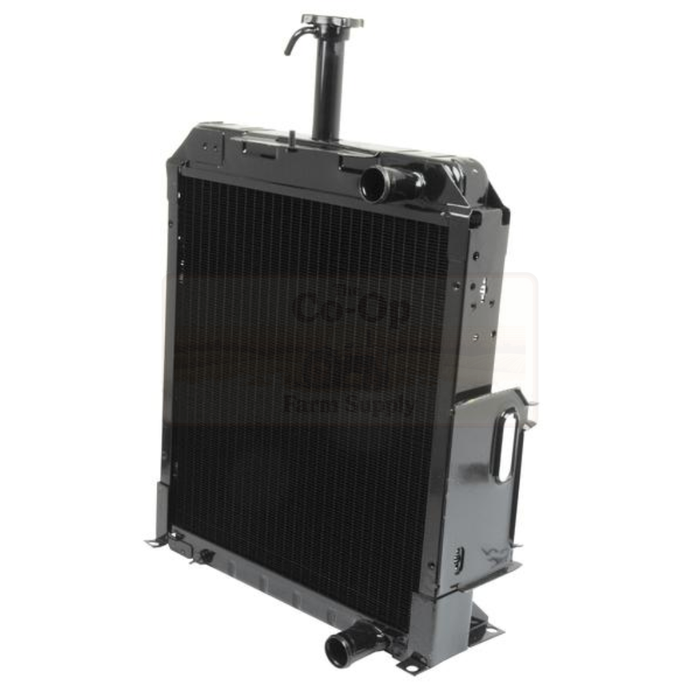

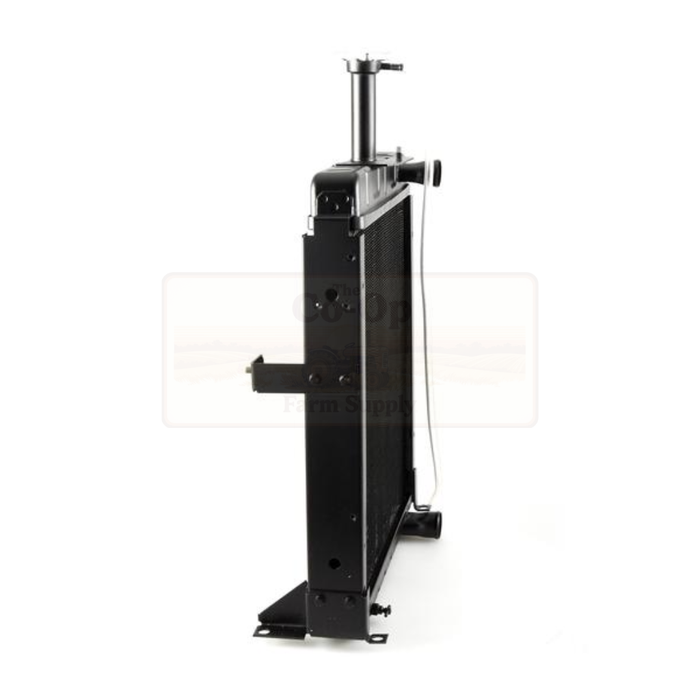

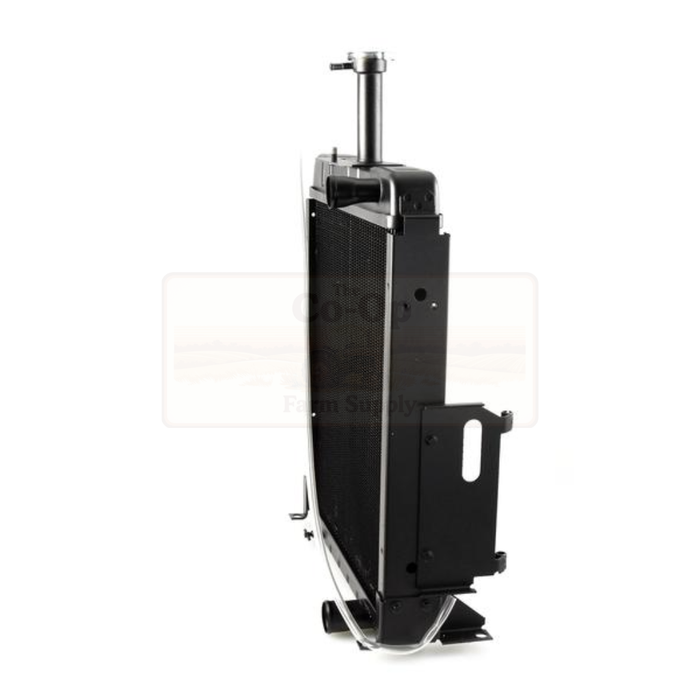

Direct-Fit Replacement Radiator for Case IH / International Harvester 248, 258, 385, 484–885XL Series Tractors

This heavy-duty replacement radiator is engineered as a direct-fit solution for a wide range of Case IH and International Harvester tractors across the 400, 500, 600, 700, 800, and 900 series. Built to OEM specifications, it restores full cooling system performance without modification — keeping your tractor running at the right temperature through long days of hard work in the paddock.

Why Replace Instead of Repair?

A repaired radiator is a temporary fix. Soldered or patched cores are prone to re-failure under the thermal cycling and vibration loads of agricultural use. A quality replacement radiator restores full cooling capacity, protects your engine from heat stress, and gives you confidence that the job is done right — not just done.

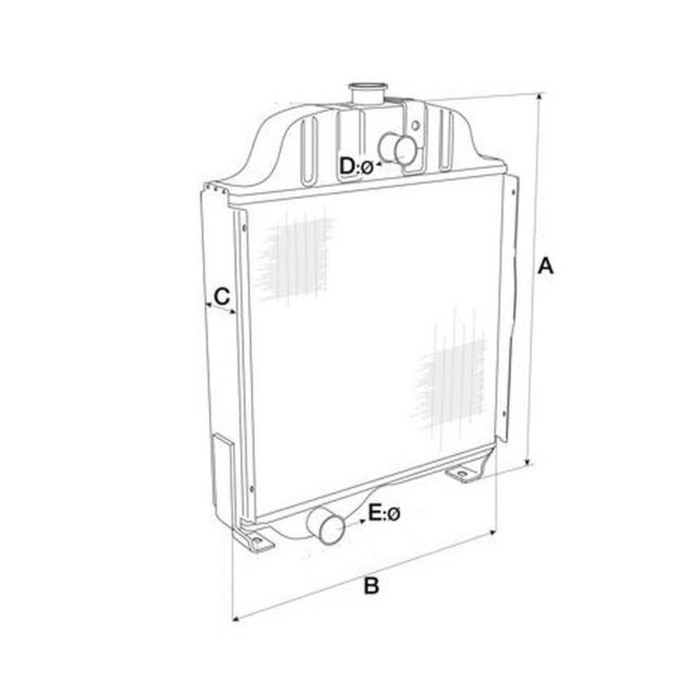

Specifications

• A (Overall Height): 570mm
• B (Overall Width): 485mm
• C (Thickness): 70mm
• D (Inlet): Ø38mm
• E (Outlet): Ø38mm

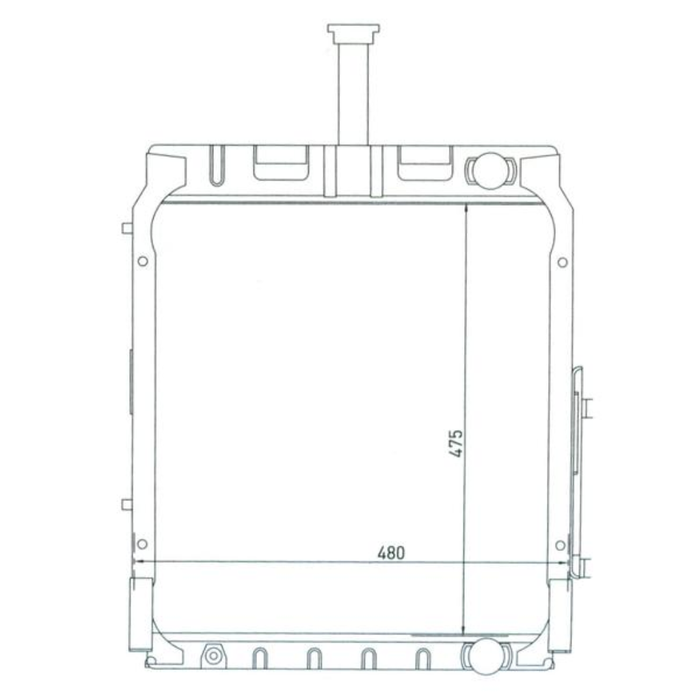

• Core Height: 465mm
• Core Width: 445mm (17-33/64")
• Core Thickness: 70mm (2-3/4")
• Rows: 3 Row
• With Intercooler: No
• Supplied with Radiator Cap: Yes

OEM Part Numbers

Suitable For Make/Model
