Radiator – Suitable for John Deere 1030, 1630, 1830, 2020, 2030, 2040, 2120, 2130

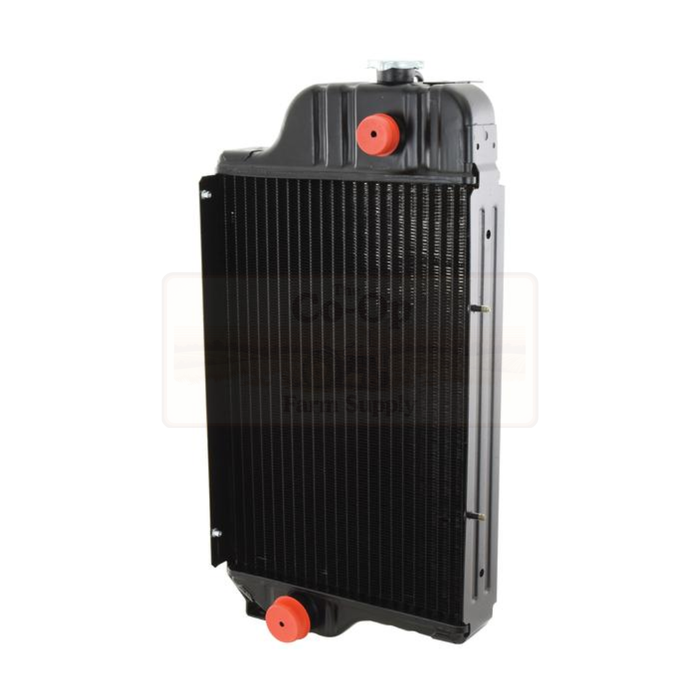

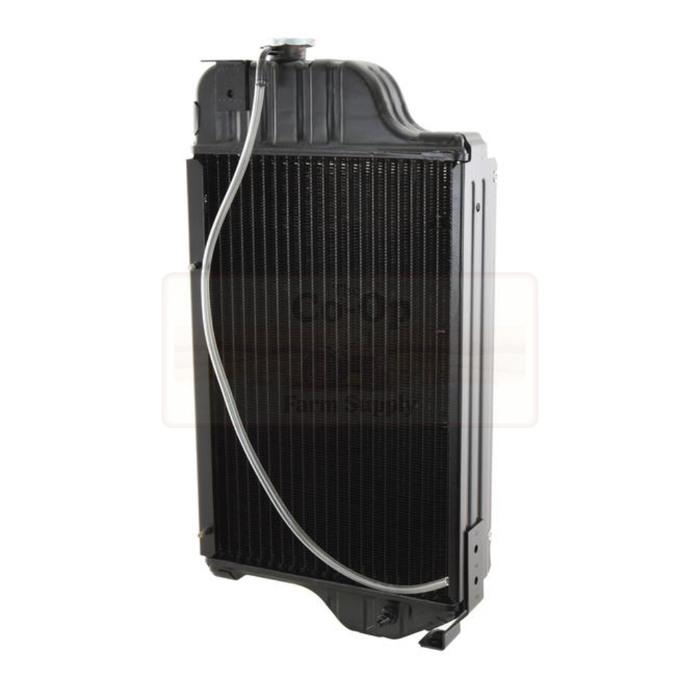

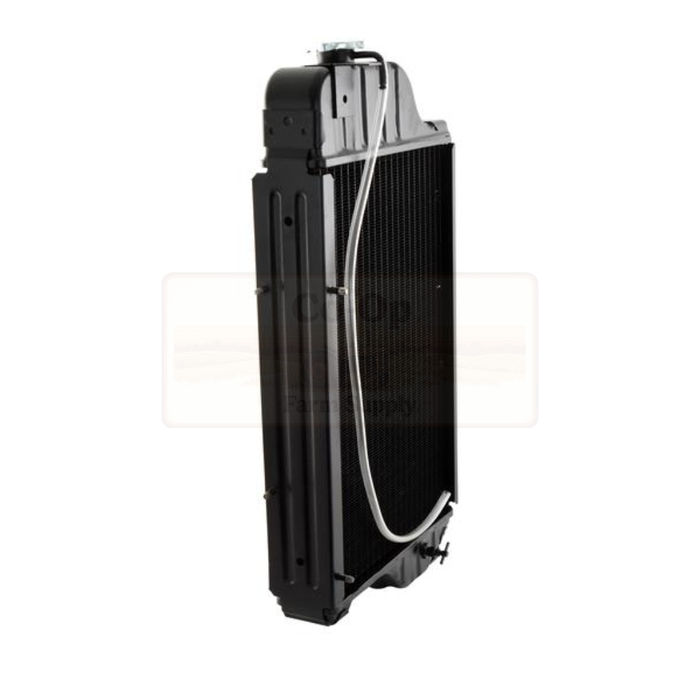

Direct-Fit Replacement Radiator for John Deere 1030, 1630, 1830, 2020, 2030, 2040, 2120 & 2130 Tractors

This heavy-duty replacement radiator is engineered as a direct-fit solution for John Deere 65-series tractors. Built to OEM specifications, it restores full cooling system performance without modification — keeping your tractor running at the right temperature through long days of hard work in the paddock.

Why Replace Instead of Repair?

A repaired radiator is a temporary fix. Soldered or patched cores are prone to re-failure under the thermal cycling and vibration loads of agricultural use. A quality replacement radiator restores full cooling capacity, protects your engine from heat stress, and gives you confidence that the job is done right — not just done.

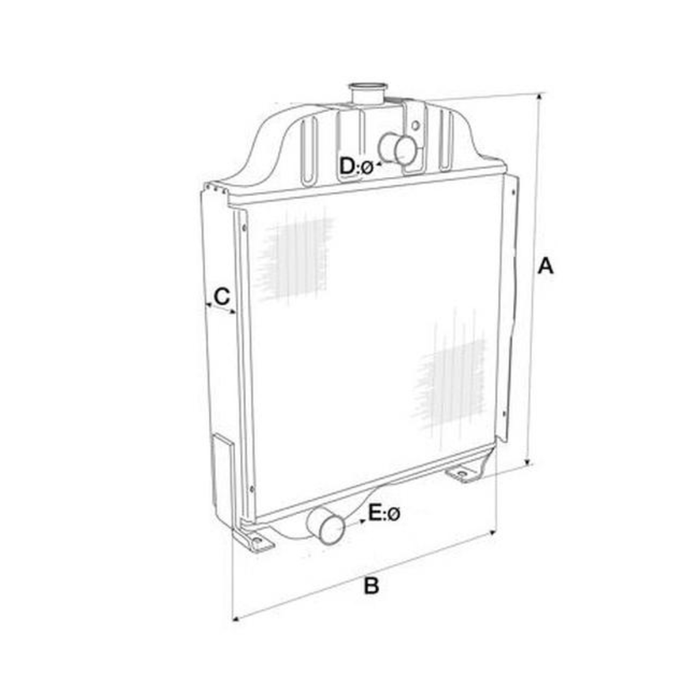

Specifications

• A (Overall Height): 685mm
• B (Overall Width): 350mm
• C (Thickness): 110mm
• D (Inlet): Ø38mm
• E (Outlet): Ø47mm

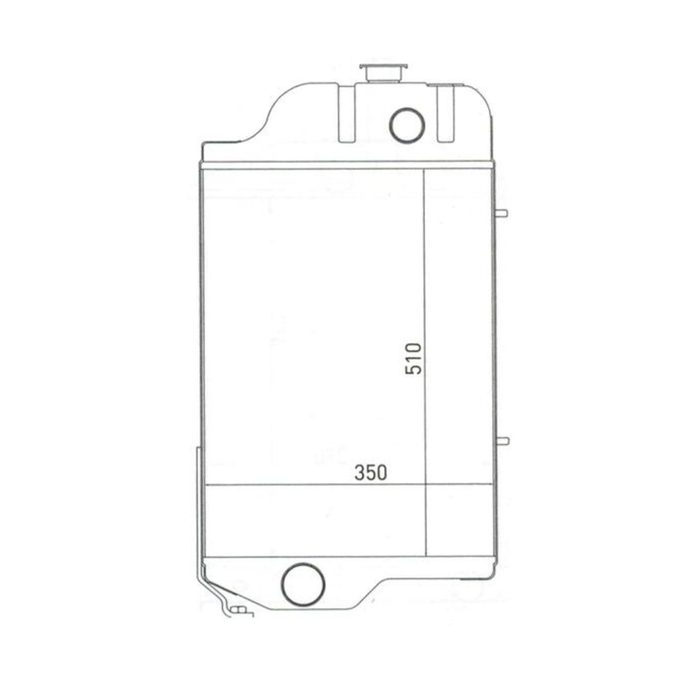

• Core Height: 510mm
• Core Width: 352mm (13-55/64")
• Core Thickness: 80mm (3-5/32")
• Rows: 4 Row
• With Intercooler: No
• Radiator Cap: S.8453 (supplied)
• Notes: Supplied with Radiator Cap

OEM Part Numbers

Suitable For Make/Model
