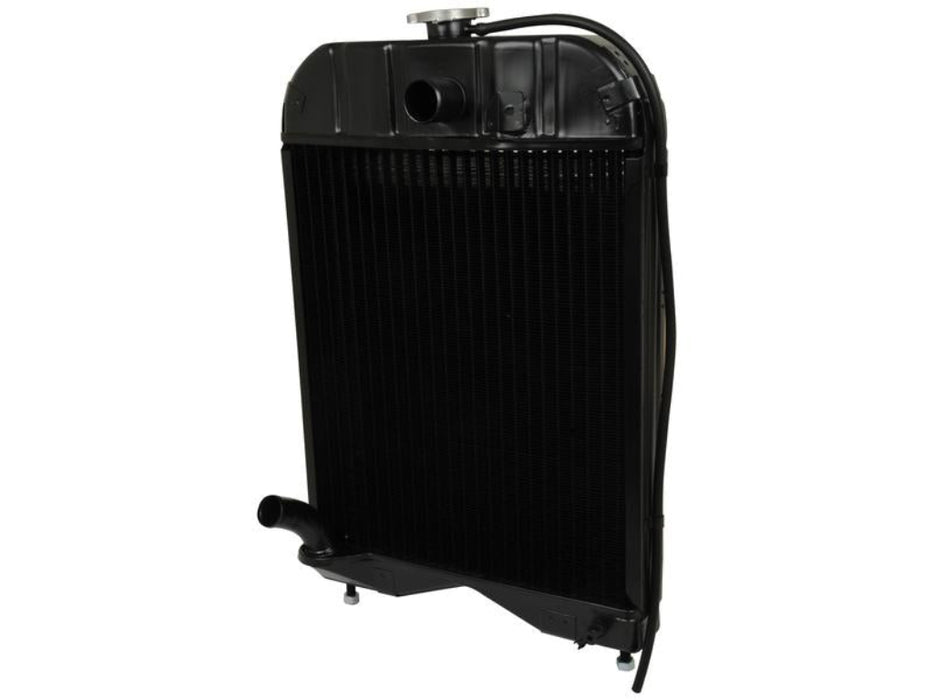

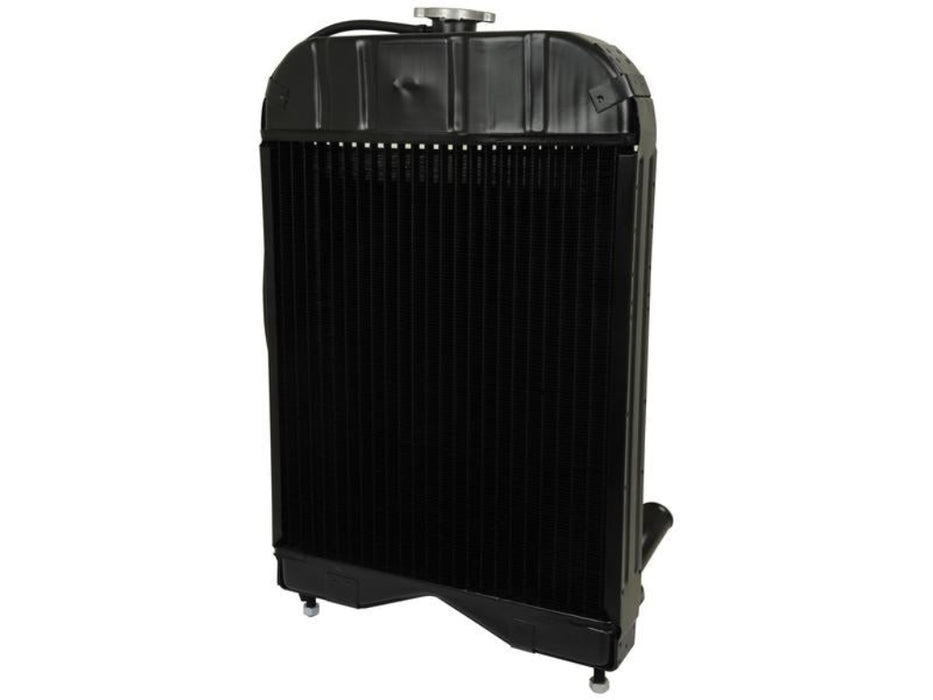

Radiator – Suitable for Massey Ferguson 35, FE35 & Perkins
Radiator – Suitable for Massey Ferguson 35, FE35 & Perkins
Keep your Massey Ferguson tractor running at peak temperature with this direct-fit replacement radiator. Engineered to OEM specifications with a 3-row core for reliable cooling performance. Designed for the Perkins 23C 4-cylinder diesel engine with a straight top hose connection. Supplied complete with radiator cap (63104).
Why Replace Instead of Repair?
A repaired radiator is a temporary fix and may even reduce coolant flow — a replacement is a long-term solution. Patched cores and re-soldered tanks are prone to re-failure, especially under the heat and pressure cycles of hard-working tractors. A new radiator restores full cooling capacity, protects your engine from overheating damage, and gets you back in the paddock faster. When downtime costs money, replacement pays for itself.

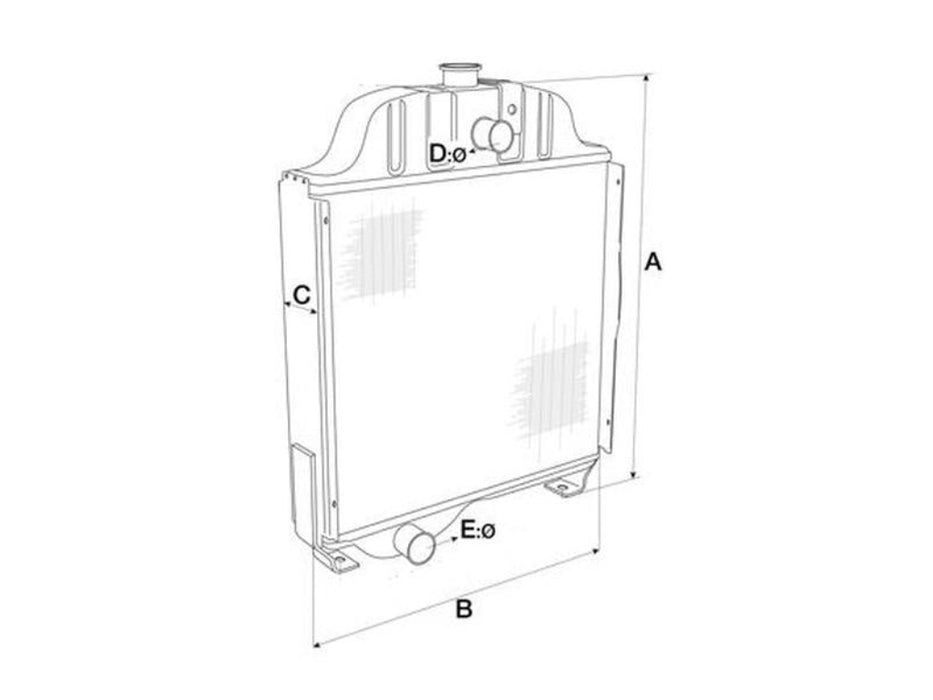

Specifications
- Overall Height (A): 583mm
- Overall Width (B): 405mm
- Thickness (C): 66mm
- Inlet Diameter (D): Ø38mm
- Outlet Diameter (E): Ø35mm
- Core Height: 443mm
- Core Width: 397mm (15-5/8")
- Core Thickness: 61mm (2-13/32")
- Number of Rows: 3
- With Intercooler: No
- Supplied with Radiator Cap: Yes (63104)
- Notes: Fits Perkins 23C 4-cylinder diesel engine. Straight top hose connection. When replacing an early radiator with angled top hose connection, use 40015 hose.
