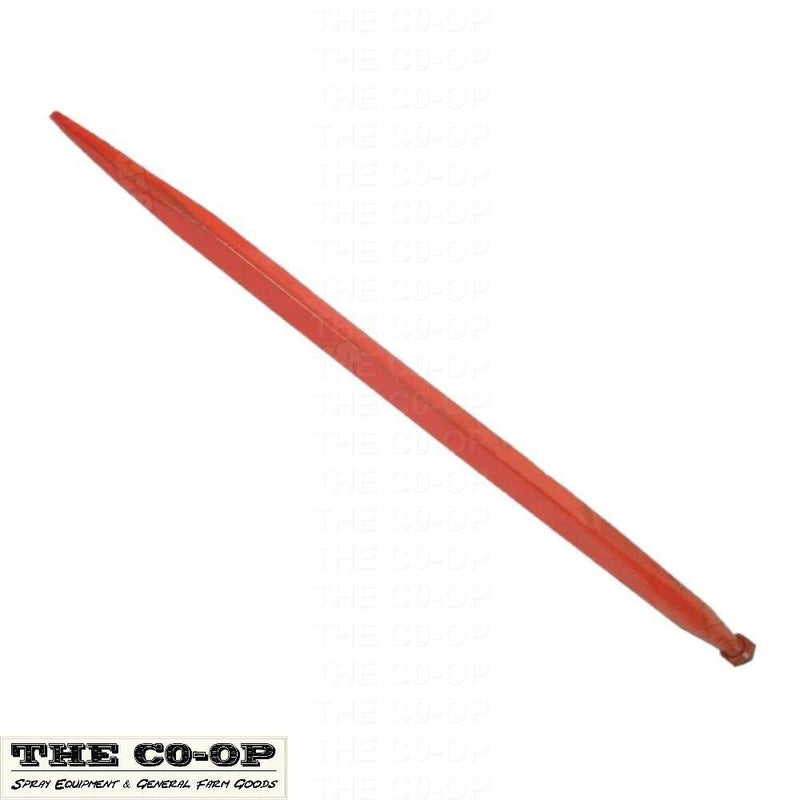

Loader Tine - Straight 1,100mm, Thread size: M28 x 1.5 (Square)
Original price
$212.30
-
Original price
$212.30
Original price
$212.30
$212.30
-
$212.30
Current price
$212.30
The only choice when you are seeking the highest quality,
SHW Round Bale Spear/ Tines are made from High Quality Spring Steel, rolled, made in Germany,
Hardened and tempered to 45-49 HRC
Permanent Quality control along the production process assures consistent high Quality
At SHW Every Spear is hand straightened in the final Production Process.
SHW Bale tines/Spears are found on original equipment across the world.
Specifications:
Fitting: Conus 2
Max. Tine Ø44mm
Max. Tine Ø44mm
A (mm) - 1100
B (mm) - 330
Brand - SHW
Colour - Red
Conus Reference - K013
Fitting - Conus 2
HD Bush - S.19836
Maximum Tine Ø (mm) - 44
Maximum Torque (Nm) - 700
Nut Included - es
Nut - S.77030
Primary OE Reference - KK241166
Profile - Square
STD Bush - S.1841
Thread size - M28 x 1.50
Thread type - Metric
Tine Length (ins) - 43
Tine Length (mm) - 1100
Type - Straight
Warning: Nuts must be retightened according to the instructed torque after 5 hours of operation using a torque-controlled spanner.
