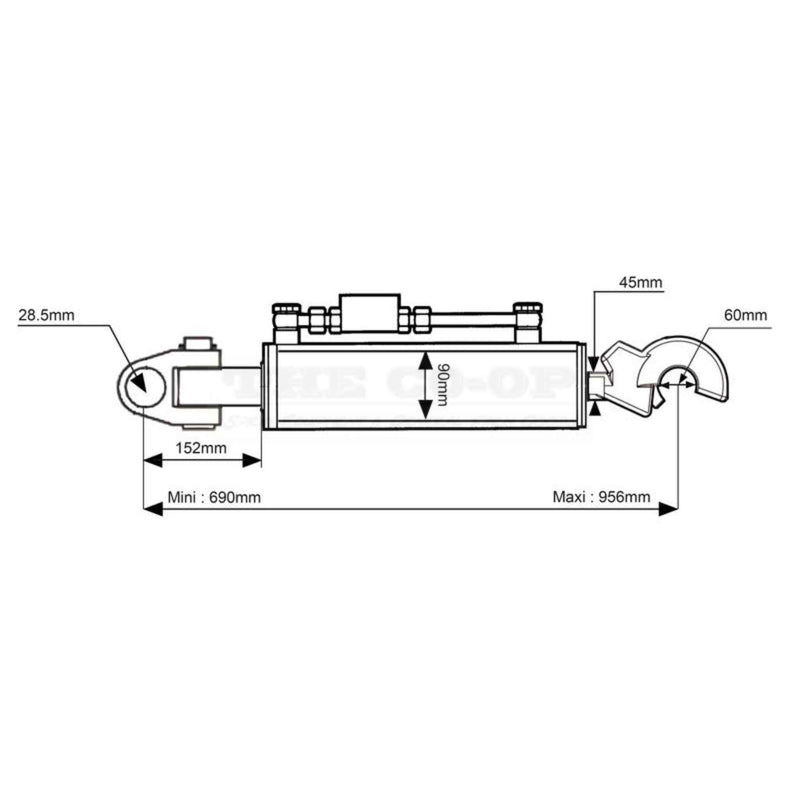

Hydraulic Top Link (Cat.3) Knuckle and Q.R CBM Hook, 690-956mm. measurements
on tractor image
on tractor image
on tractor image
top link kit image
top link kit tractor knuckle connection image
top link kit image implement hook end image
Hydraulic Top Link (Cat.3) Knuckle and Q.R CBM Hook, 690-956mm. measurements
on tractor image
on tractor image
on tractor image

Hydraulic Top Link (Cat.3) Knuckle and Q.R CBM Hook, 690-956mm.

$1,078.53 - $1,078.53
$1,078.53
$1,078.53 - $1,078.53
$1,078.53

Suitable for Tractors up to HP/Kw 200hp (147kW)
Min. Length : 690mm, Max. Length :956mm,
Supplied with : Hose set, chain & ball, marker label with knuckle & pin.

Category Implement End - Category 3 Q.R CBM Hook
Category Tractor End - Cat 3 (32mm) Knuckle
Cylinder Bore - 90mm
Rod Ø - 45mm
Lift @180 bar - 8770Kg
Thrust @180 (bar) - 11700Kg
