Starter Motor – 12V, 2.6kW Gear Reduced (Mahle) | Suitable for Deutz-Fahr

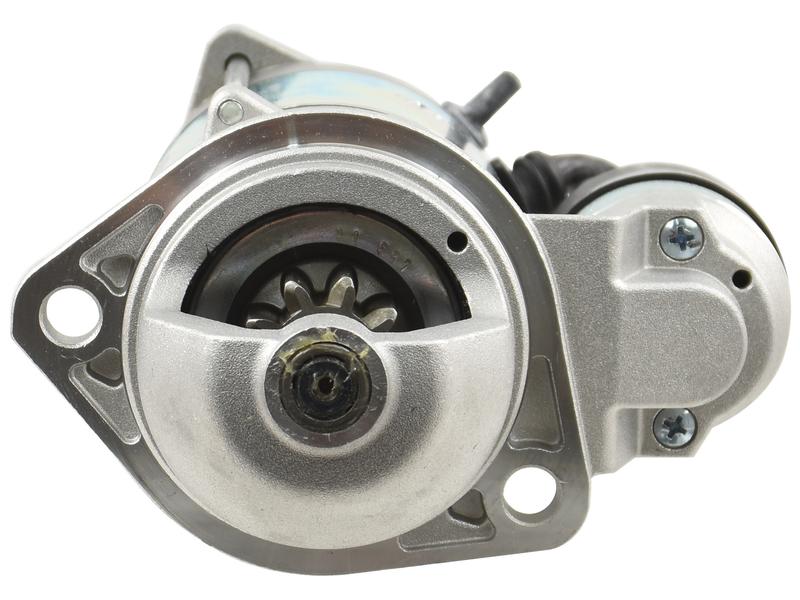

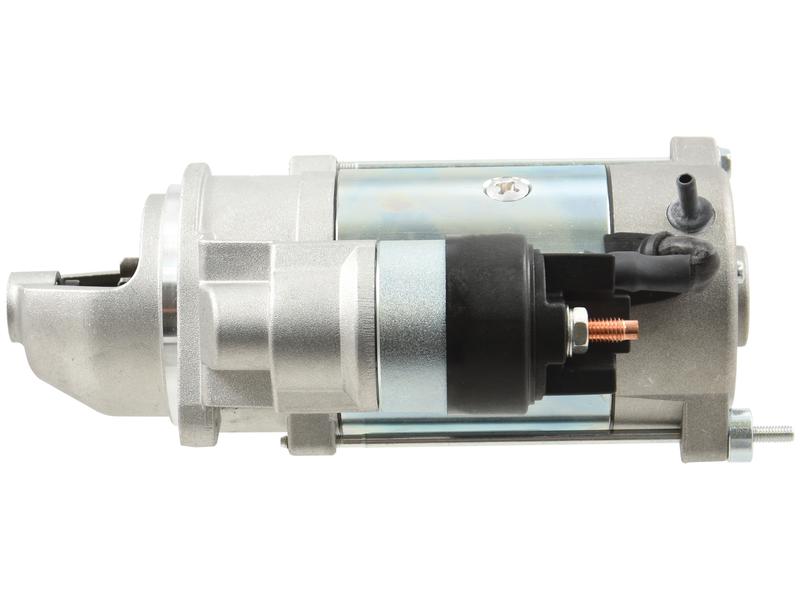

A heavy-duty 12V, 2.6kW gear-reduced starter motor from Mahle, engineered as a direct-fit replacement for Deutz-Fahr BF4L1011, F3L1011 and F4L1011 engines. The gear-reduced design delivers strong, reliable cranking torque with a compact footprint.
Specifications
- Voltage: 12V
- Power: 2.6kW
- Number of Teeth: 9
- Number of Flange Holes: 2
- Drive Type: Gear Reduced
- Bell Opening: LH
- Brand: Mahle

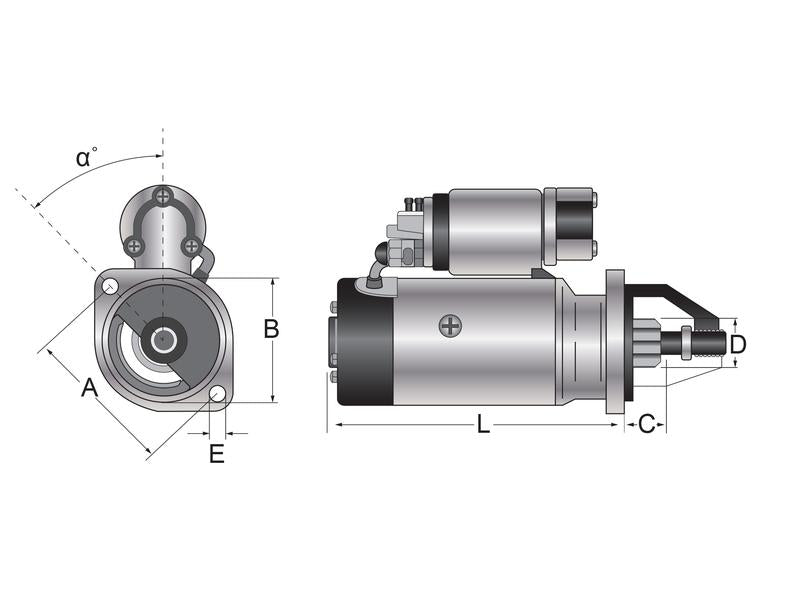

- A (mm): 105
- Angle (a): 35°
- B (mm): 82.5
- C (mm): 25.5
- D (mm): 34.8
- E (mm): 10.9
- Height: 152.4mm
- Length: 311.2mm
- Length from Front Mounting Face to Rear: 205mm
- Mounting Hole: 10.9mm
- Distance Between Teeth: 14.4mm
- Outer Diameter of Battery Terminal: 7.8mm
OEM Part Numbers
Deutz-Fahr
01183599, 01182382, 04300007, 01181751, 01182124
Iskra
IS1217
Lester
18951
Lucas
LRS01755
Suitable For Make/Model
Deutz-Fahr
BF4L1011, F3L1011, F4L1011
