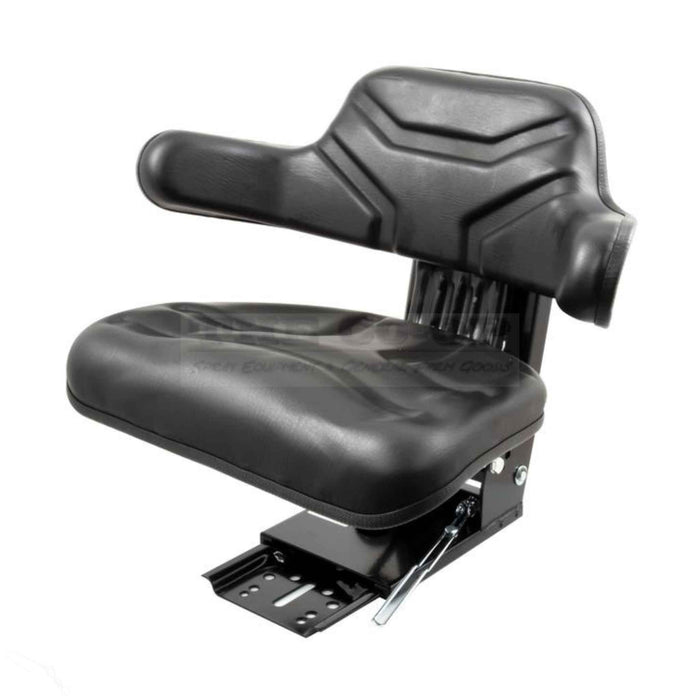

replacement CASE/IH tractor seat

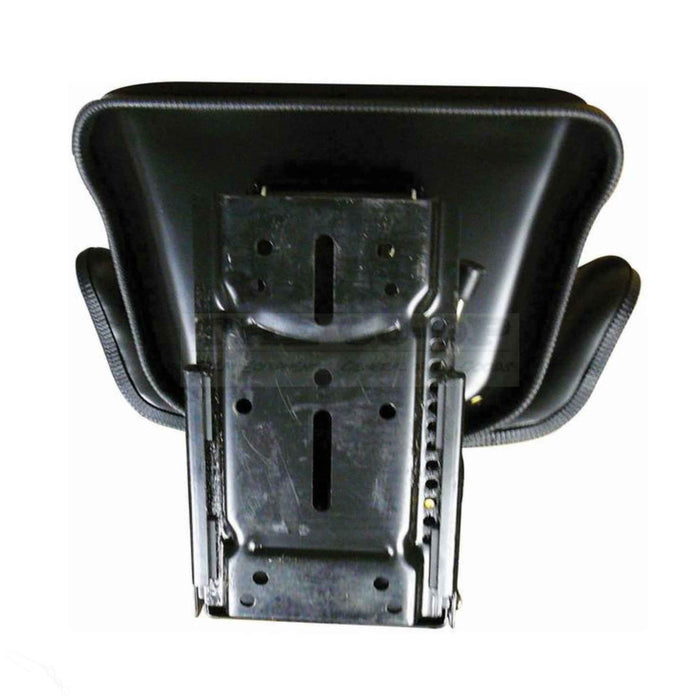

replacement CASE/IH tractor seat underside view dimensions

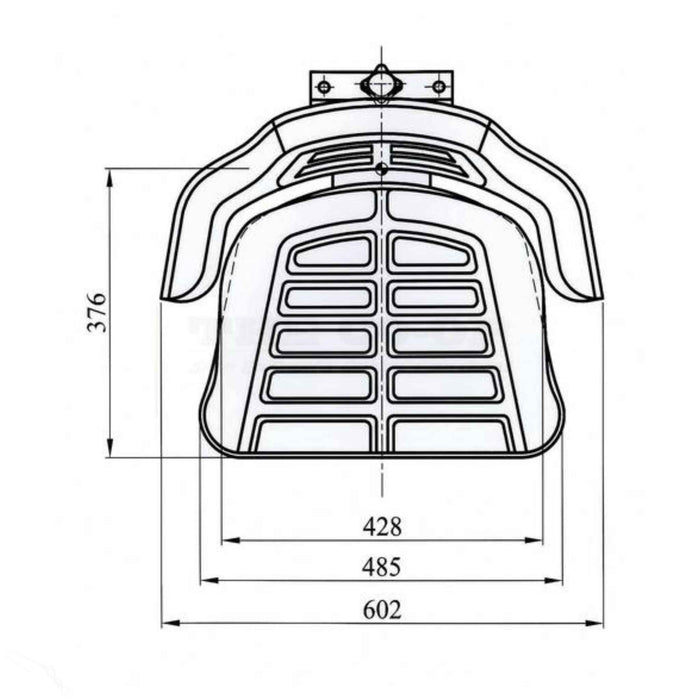

replacement CASE/IH tractor seat plan view dimensions

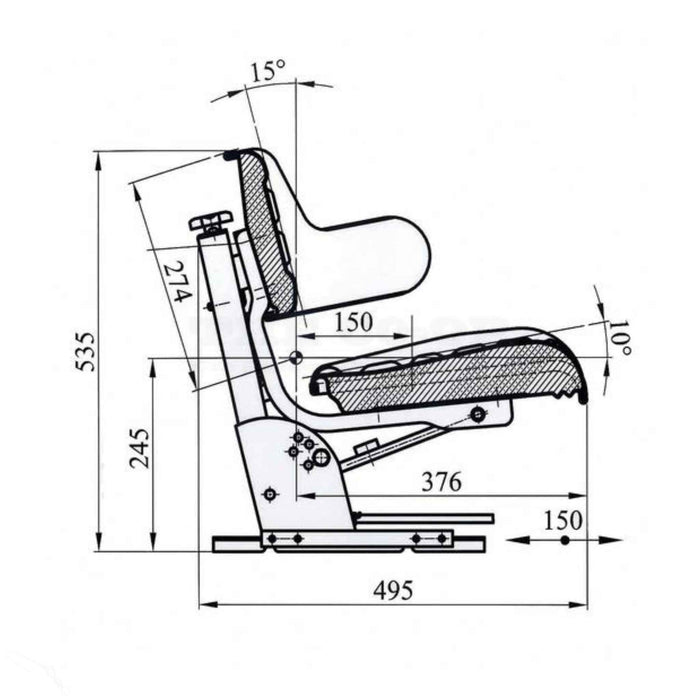

replacement CASE/IH tractor seat elevation view dimensions

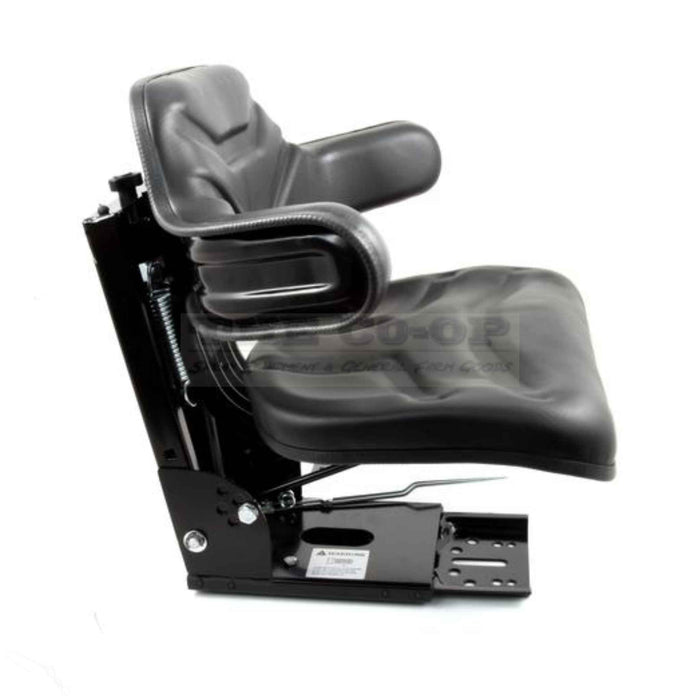

replacement CASE/IH tractor seat side view

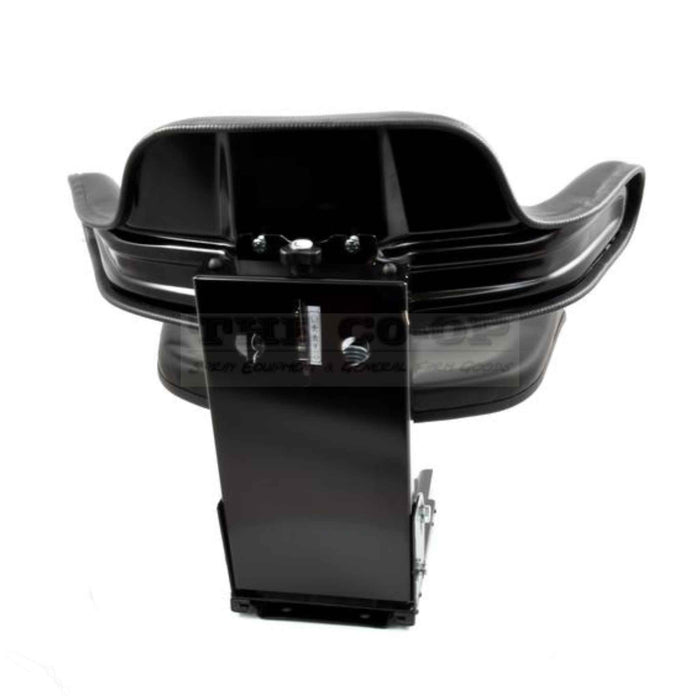

replacement CASE/IH tractor seat rear view

Suspension Seat Assembly – Case IH Universal Fit

$194.17 - $194.17
$194.17
$194.17 - $194.17
$194.17

All-Day Comfort for Your Case IH

Long hours in the tractor take a toll. This mechanical adjustable suspension seat is a direct-fit replacement for a wide range of Case IH and International Harvester tractors, absorbing the bumps and vibration of hard work to keep operators comfortable from first light to last run.

Key Features

  • Mechanical Suspension with 80mm stroke — smooths out rough ground and reduces operator fatigue
  • Manual Weight Adjustment up to 120kg — tailored support for a wide range of operators
  • 160mm Slide Travel — fore/aft adjustment to suit different cab layouts
  • 510mm Seat Width — generous, supportive platform for extended use
  • Adjustable Angle Base — dial in the perfect seating position
  • Seat Belt Fixing Point — safety-ready straight out of the box
  • Black Vinyl Upholstery — tough and easy to clean

Suitable For

Case IH / International Harvester: 454, 464, 574, 584, 585, 674, 684, 685, 784, 785, 885
