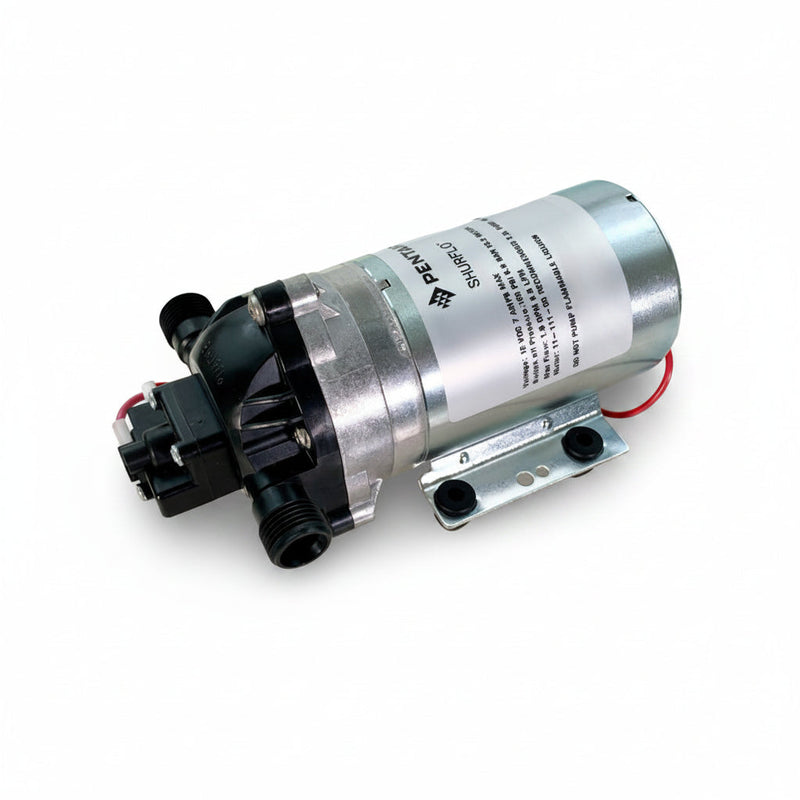

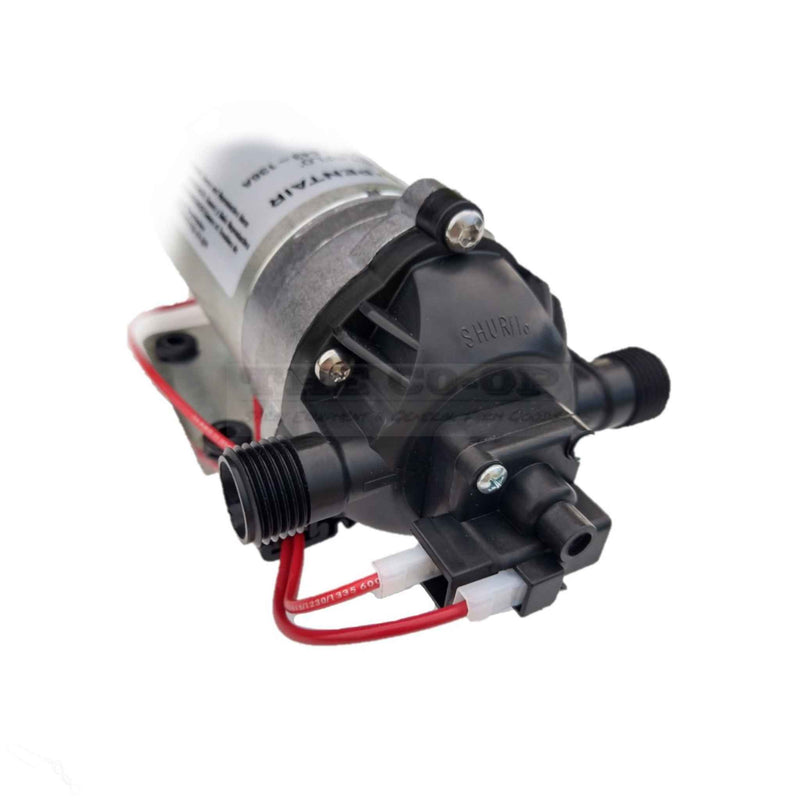

SHURflo 8000-543-138 Demand Pump - 6.8 L/min - 100psi (6.8 Bar) - 12V
The SHURflo 8000-543-138 is a high-pressure 12V self-priming demand pump built for agricultural and chemical spraying applications. Delivering 6.8 L/min at up to 100psi (6.8 Bar), it handles everything from spot spraying to small boom setups where higher operating pressure is required.
Self-priming to 2.4m (8 vertical feet) and safe to run dry, this pump is engineered for reliability in demanding paddock conditions. The built-in pressure cut-out switch means it runs on demand — automatically stopping when flow ceases and restarting when pressure drops — reducing wear and power draw.
Fitted with a Santoprene© diaphragm and Viton© valves, the 8000-543-138 offers excellent resistance to a wide range of agricultural chemicals, herbicides, and fertilisers, ensuring long service life season after season.
Specifications
- Flow rate: 6.8 L/min (open flow)
- Max pressure: 6.8 Bar (100 psi)
- Max current draw: 8.7A
- Outlet: 1/2" BSP male
- Diaphragm: Santoprene©
- Valves: Viton©
- Voltage: 12V DC with pressure cut-out switch
- Self-priming: up to 2.4m (8 ft) vertical lift
- Dry-run safe: Yes
Also known as: 361-8000
Note: We recommend using SHURflo hose connection fittings to ensure correct fitment, performance and reliability. Please read the booklet supplied with the pump.
