Lechler PRE 130-05 Pre-Flat Jet Nozzle – 95% Drift Reduction | Pre-emergence Nozzle

Lechler PRE 130-05 – Pre-Flat Jet Nozzle for Herbicide Pre-Emergence Application

Developed in collaboration with Syngenta, the Lechler PRE 130-05 is the world's first nozzle to achieve a German JKI registration in the new 95% drift reduction class for field spraying. Engineered specifically for lossless herbicide application pre-emergence, this nozzle delivers outstanding drift control across a wide operating pressure range — giving you the flexibility to treat paddock edges, border structures, and whole-area applications with confidence.

Drift Reduction Performance

• 1.5 to 5.0 bar → 95% drift reduction (JKI registered)
• Up to 6.0 bar → 90% drift reduction
• Full operating range: 1.5 to 8.0 bar

Key Advantages

• First JKI-registered nozzle in the 95% drift reduction class — sets a new industry benchmark
• Lossless output of pre-emergence herbicides at low pressure
• Extreme reduction of fine droplet share minimises spray drift to sensitive border areas and adjacent crops
• Wide pressure range enables flexible speed and water rate adjustment for maximum application efficiency
• Proven biological equivalence to ID-Air-Injector nozzles in large-area trials with clomazone-containing preparations (e.g. Colzor Trio pre-emergence)
• Simplified handling via nozzle-to-cap combination with Multijet Bayonet fitting
• Optimum lateral distribution: vk <7% (coefficient of variation) per JKI provisions across full 1.5–8 bar range
• Boom height: 0.4 to 0.6 m
• Wider 130° spray angle with guaranteed multi-overlap

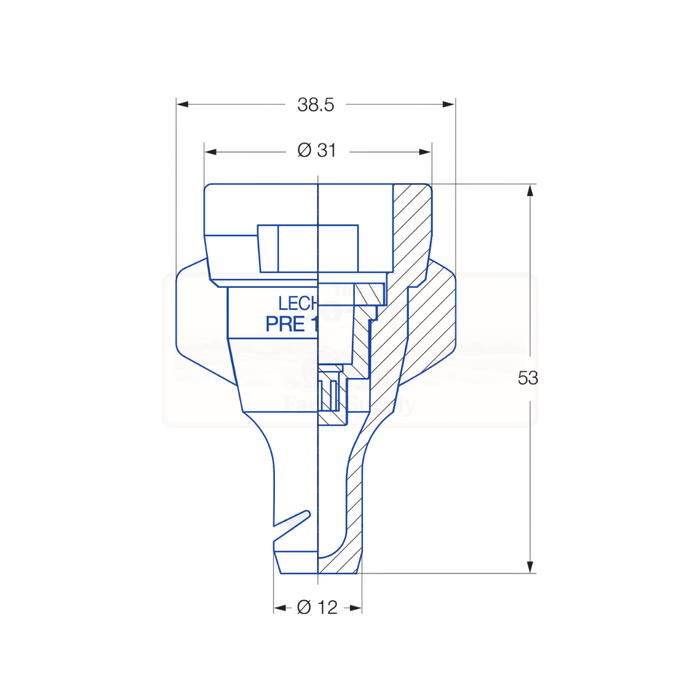

Specifications

• Model: PRE 130-05
• Spray Angle: 130°
• Operating Pressure: 1.5 – 8.0 bar
• Boom Height: 0.4 – 0.6 m
• Lateral Distribution (vk): <7%
• Fitting: Multijet Bayonet (nozzle-to-cap combination)
• JKI Registration: 95% drift reduction class
• Minimum Order Quantity: 10 units

OEM Part Numbers

Suitable For Applications

Pre-emergence herbicide field spraying

Liquid Fertilisers

Golf course

Note: Always refer to the chemical manufacturer’s application recommendations and label directions before use. Nozzle selection should be confirmed against the relevant product label and local regulatory requirements.
