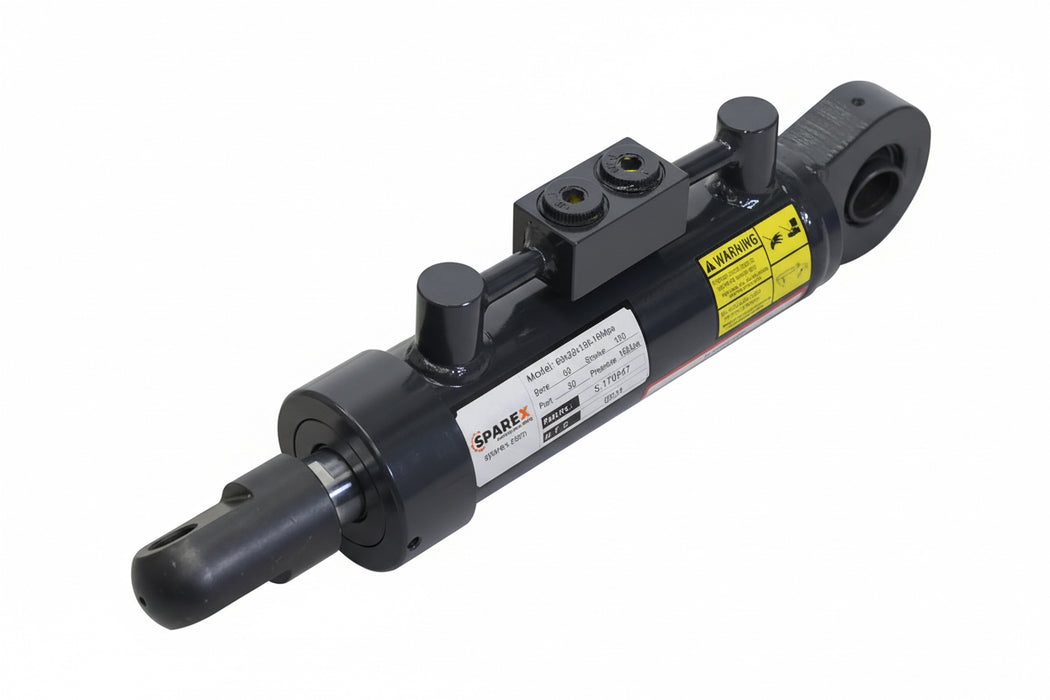

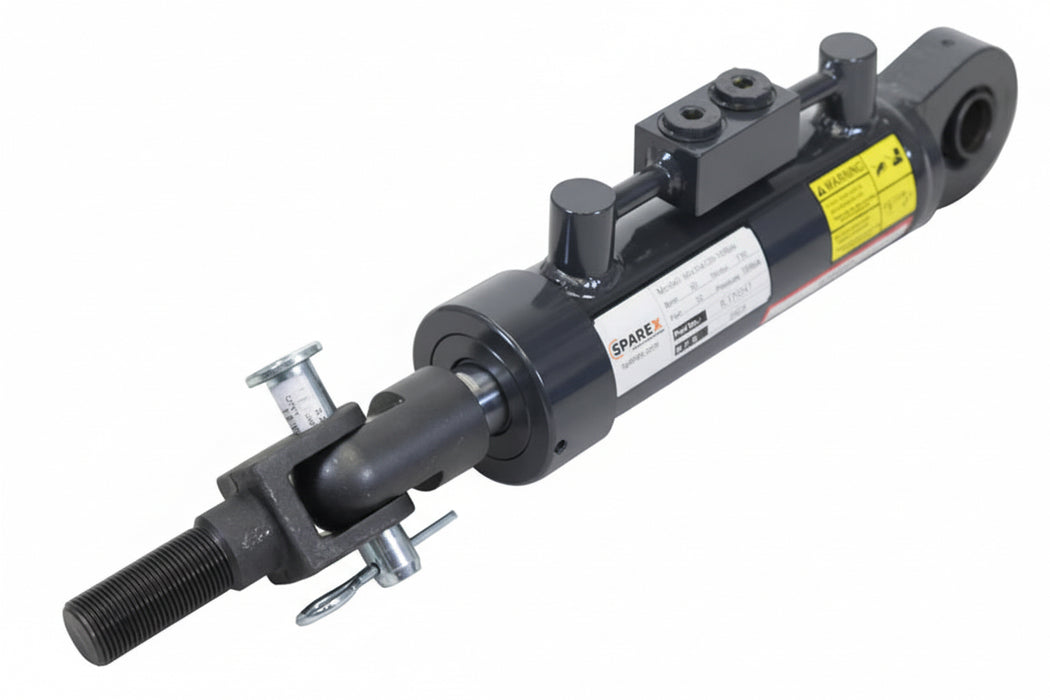

Hydraulic Stabiliser – 370–500mm, G3/8 Thread | Sparex S.170047

$735.46 - $735.46
$735.46
$735.46 - $735.46
$735.46

A heavy-duty hydraulic stabiliser designed for Cat 2 and Cat 3 tractor linkage applications. Recommended for use with Agco, CNH, and Claas tractors, this complete kit includes everything needed for installation — hoses, fittings, and knuckles supplied.

Specifications

  • Min. Length (Closed Centre): 370mm
  • Max. Length (Open Centre): 595mm
  • Maximum Extended Length: 500mm
  • Cylinder Bore: 60mm
  • Cylinder OD: 70mm
  • Cylinder Stroke: 225mm
  • Piston Rod Ø: 30mm
  • Piston Rod Exposed Length: 70mm
  • Fixing Hole Ø: 25.4mm
  • Hole Ø: 20mm
  • Thread Size: G3/8
  • Working Pressure: 160 bar
  • Push @ 180 bar: 4,524 kg
  • Pull @ 180 bar: 3,393 kg

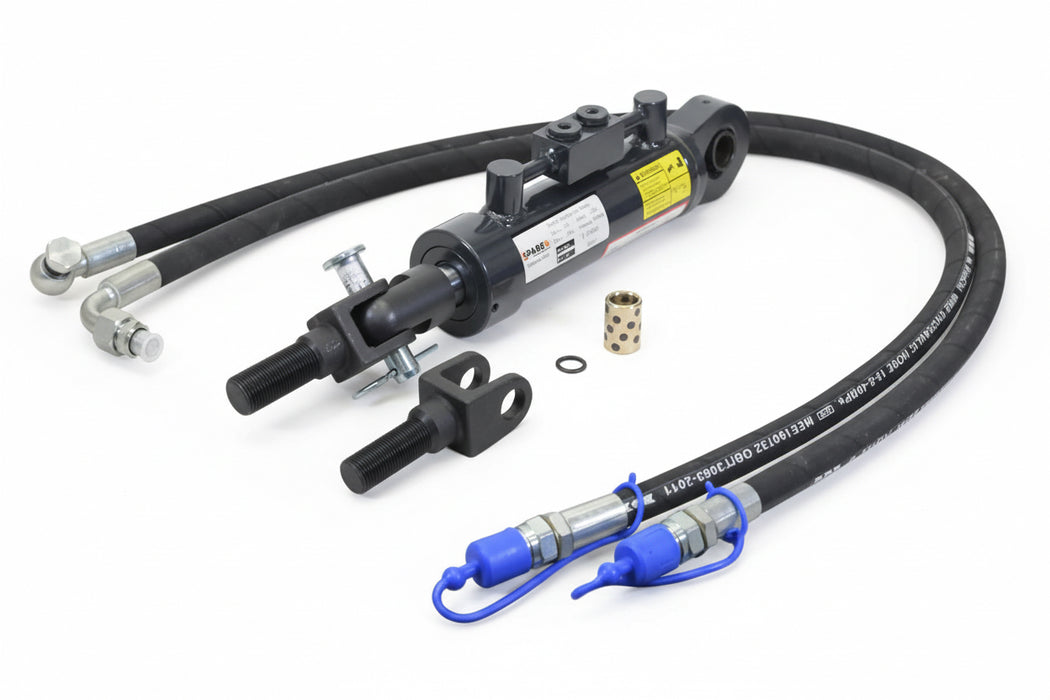

Kit Includes

  • Hydraulic cylinder x1
  • 1400mm hydraulic hose with fittings x2
  • M24 thread knuckle x1
  • M27 thread knuckle x1
  • 25.4mm to 19mm reducer bush x1

Notes

Recommended for Agco, CNH, and Claas tractors with Cat 2 and Cat 3 linkage applications.
