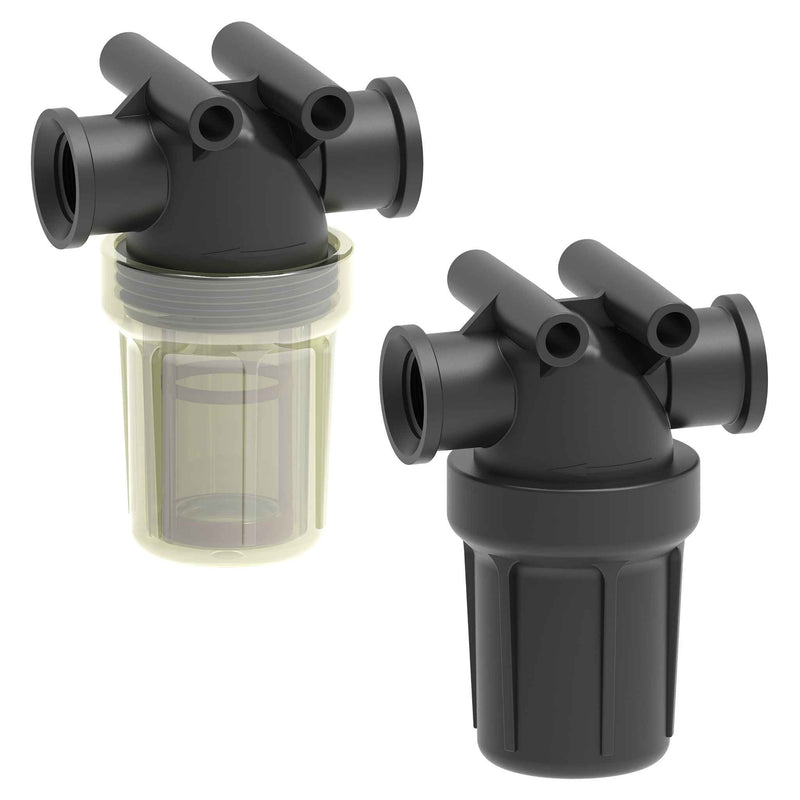

1/2" BSP-F Mini Inline Pressure filter
1/2" BSP-F Inline Pressure filter, boom or spot spray, particle filter
These InLine filters have been designed to be fitted on the circuits of machines enabling better delivery flow-rate to sections.
The increasing request of high volumes of Minature filter able to work at high pressures (up to 10 bar) and featuring large inner passages.
Thanks to the high flow-rate of up to 55L/min and to the minimum pressure drop, allows designing circuits a maximum compactness and efficiency.
Ideal for connection inline on Spraying, irrigation or watering systems.
Easily installed on each section of a boom sprayer these can eliminate the need for individual nozzle filters in many circumstances.
Supplied with a Stainless steel 50 mesh screen as standard, other mesh sizes avaialable on request at time of ordering are 32, 80 & 100 Mesh.
- Female threads 1/2" BSP
- Fixing points on both sides
- Clear or Black filter bowl.
- 1/2" BSP Female threads .
- Max. working pressure 10 bar (145 PSI) .
- Filtering capacity 55 l/min to 0.5 bar.
- Stainless steel cartridge 27 x 69 mm .
- Fibreglass-reinforced polypropylene body .
- EPDM gaskets
Made in Italy
