Silvan Stage C Inline Pressure Filter 1/2" BSP - 100 L/min Capacity

Premium Italian-engineered inline pressure filter designed for agricultural spray systems, irrigation circuits, and liquid transfer applications requiring reliable particle filtration on the pressure side of pumping systems.

Key Specifications

• Flow Capacity: Up to 100 L/min maximum
• Port Size: 1/2" BSP female threaded connections
• Maximum Working Pressure: 14 bar (203 PSI)
• Filter Screen Dimensions: Ø 40 x 90 mm
• Mesh Options: 32, 50, 80, or 100 mesh stainless steel screens

Construction & Materials

• Durable polypropylene body for chemical resistance
• Stainless steel mesh screens for corrosion resistance
• Fixing points on both sides for secure mounting
• Italian manufacturing quality and precision

Available Configurations

Screen Only (Replacement): 32, 50, 80, or 100 mesh stainless steel screens for existing filter housings

Complete Filter Assembly: Full filter unit with housing and screen in 32, 50, 80, or 100 mesh configurations

Mesh Selection Guide

• 32 Mesh (Red): Coarse filtration, maximum flow
• 50 Mesh (White): Medium filtration, balanced performance
• 80 Mesh (Blue): Fine filtration, enhanced protection
• 100 Mesh (Green): Finest filtration, maximum component protection

Technical Notes

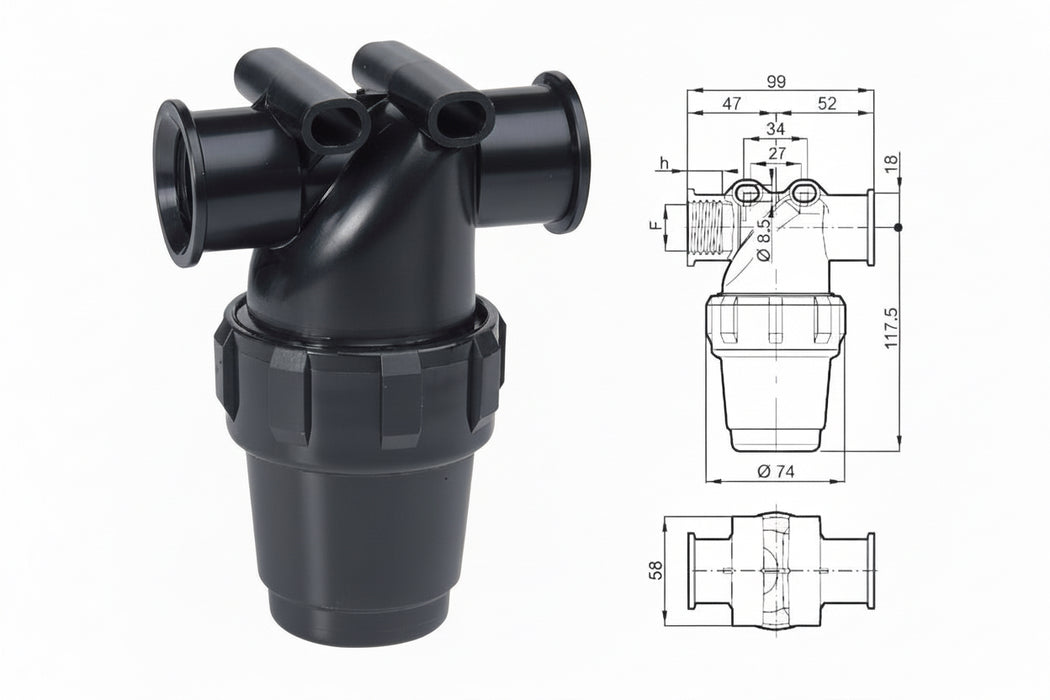

Dimensional Reference: Height (h) = 21 mm | Female Port (F) = 1/2" BSP

This Stage C filter is designed for pressure-line applications. For suction-side filtration, see our Stage B suction filter range.
