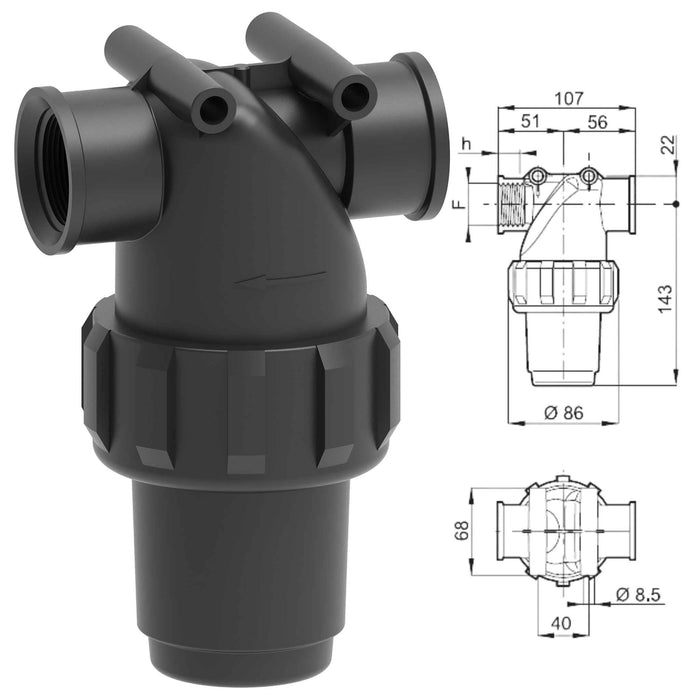

1" BSP Inline Pressure filter

ARAG Pressure Line filters 1" Female threaded mount have been designed to be fitted on the circuits of spray machines enabling better delivery flow-rate to sections.

Thanks to the high flow-rate of 150-160 l/min and to the minimum pressure drop, allows designing circuits a maximum compactness and efficiency.

Ideal for connection inline on Sprayng, irrigation or watering systems.

Easily installed on each section of a boom sprayer these can eliminate the need for individual nozzle filters in many circumstances.

Mesh sizes avaialable are 32, 80 & 100 Mesh.

Details:

• G 1 threads
• Max. working pressure 14 bar (200 PSI)
• Filtering capacity 150·160 l/min
• Cartridge  38 x 125 mm
• Fixing points on both sides
• Polypropylene body
• EPDM gaskets
• 32, 50, 80 & 100 mesh options
