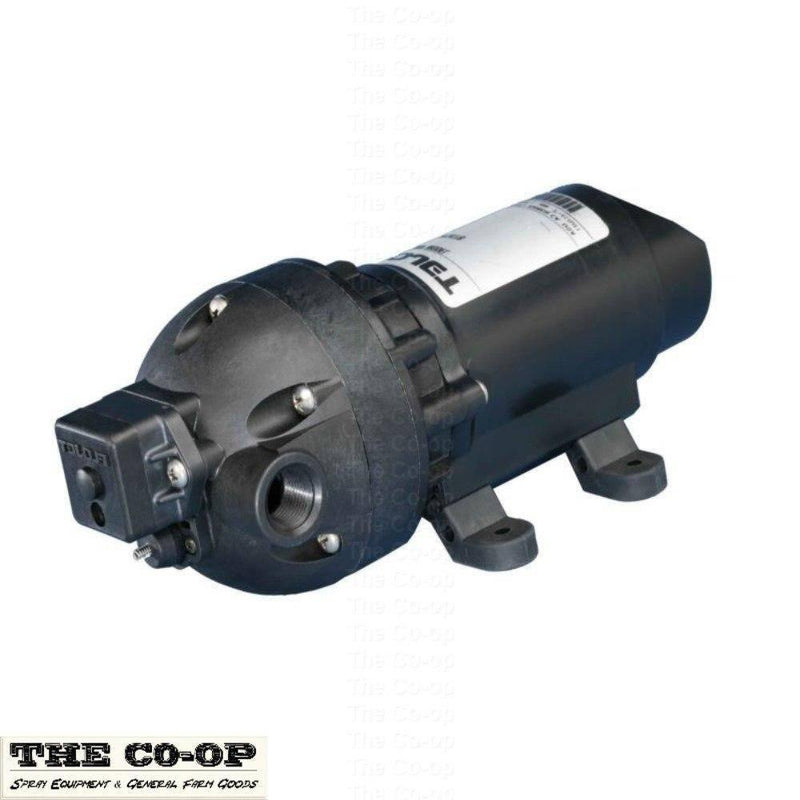

Flojet 3501-503 8L/min

by FloJet
Original price $259.88 - Original price $259.88
Original price
$259.88
$259.88 - $259.88
Current price $259.88

FLOJET Industrial Triplex Low Pressure Series 12v pumps are designed for a wide range of applications and are constructed from a selection of materials suitable for handling a broad range of chemicals. The Triplex Low Pressure diaphragm pumps are selfpriming and can run dry without harm. They are intended for intermittent duty cycles but can be run continuously for short periods of time. The higher the duty cycle,the shorter the expected life of the pump. Typical pump uses are liquid transfer, spraying, cooling, circulation, filtration and dispensing.

• Compact automatic demand pump
• Sealed pressure switch and motor
• Self-priming, pump can be located above supply tank
• Can run dry for extended periods of time without damage
• Flow rates to 2.0 GPM (7.6 l/min) and operating pressure to 50 psi (3.4 bar)
• Fitted with 4 Bar (60 PSI) Pressure Switch
• Internal bypass for smooth running even at low flows
• On/off rocker switch on pump body
• Viton valves, Santonprene diaphragm

Specifications:

Flow Rate                          7.8 lpm
Motor                                 Permanent magnet TENV (non-ventilated)
Pump Design                    Three Chamber
Voltage                                12 Vdc
Amp Draw                            8 amp
Pressure Switch Setting    2.0-4.1 bar 30-60 psi
Max. Operating Pressure   3.4 bar 50 psi
Max. Fluid Temperature      54 °C 130 °F
Self Priming                          Up  to 2.4m vertical height
Port(s)                                    3/8” NPTF
Wetted Parts                          Housing – Reinforced Polypropylene
Elastomers                            Santoprene®, Viton®
Weight                                    1.5 kg
