Hydraulic Top Link Cat 2/3 Q.R CBM Hook, 667-903mm
Sold out
Original price
$3,723.26
-
Original price
$3,723.26
Original price
$3,723.26
$3,723.26
-
$3,723.26
Current price
$3,723.26
Suitable for Tractors up to HP/Kw 180hp (135kW)

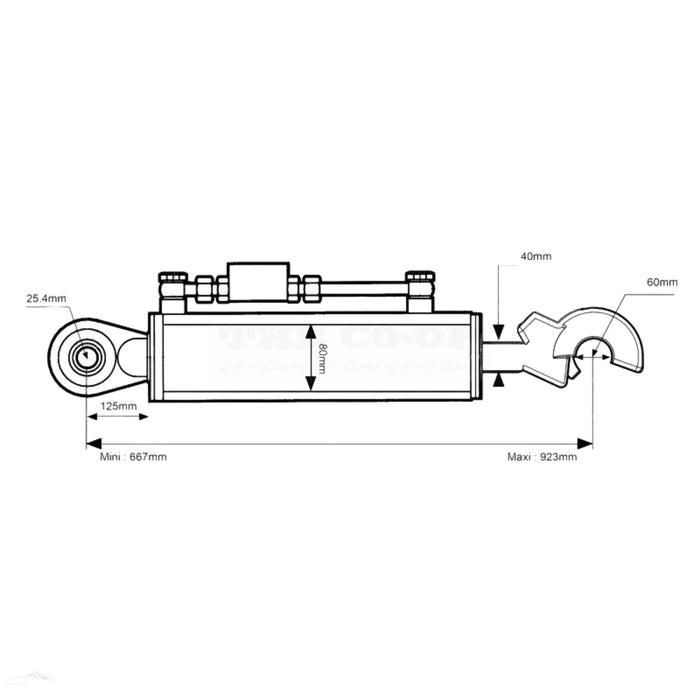

Min. Length : 667mm, Max. Length :903mm,
Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Min. Length : 667mm, Max. Length :903mm,
Supplied with : Hose set, chain & ball, marker label with knuckle & pin.
Category Implement End - Category 3 Q.R CBM Hook
Category Tractor End - Cat 2 (1") Ball
Cylinder Bore - 80mm
Rod Ø - 40mm
Lift @180 bar - 6930 Kg
Thrust @180 (bar) - 9240Kg
