ARAG Relief & Manual Dump Valve with T5 fork coupling - 871T502

Take full control of your spray system with the ARAG 871T502 manual control valve with electric relief. Designed and manufactured in Italy by ARAG — one of the world's leading suppliers of sprayer components — this valve serves as the main on/off and pressure-regulating valve on self-propelled and trailed crop sprayers.

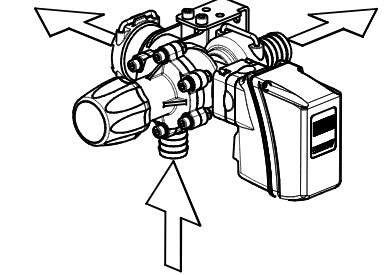

The 871T502 pairs a low-power 12V electric on/off actuator with an adjustable maximum-pressure relief valve. When the main valve is closed or the set pressure is exceeded, the relief valve automatically bypasses flow back to the tank, protecting the pump, hoses, and boom from over-pressure while maintaining a stable, consistent spraying pressure.

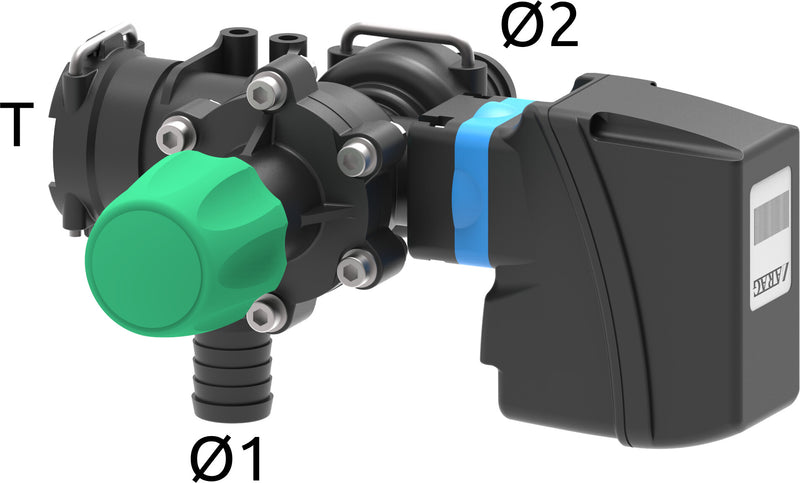

The valve body is fitted with a T5 fork connection for quick and secure integration into ARAG control units, and is available with your choice of inlet hosetail: 19 mm, 25 mm, 30 mm, or 32 mm, or 3/4″, 1″, or 1 1/4″ hose fittings.

Key features

• Electric on/off main valve with integrated, adjustable electric relief valve

• Maximum working pressure: 20 bar (290 PSI)

• Flow rate: up to 150 L/min (relief valve capacity rated at 3 bar)

• T5 fork connection for direct fitting to ARAG control units

• Fibreglass-reinforced Nylon® body for strength and corrosion resistance

• Internal parts in Delrin® and AISI 303 stainless steel

• Viton® gaskets — resistant to crop protection chemicals and liquid fertilisers

• Low power consumption, suited to 12V sprayer electrical systems

• Choice of inlet hosetail sizes: 19 / 25 / 30 / 32 mm or 3/4″ / 1″ / 1 1/4″

Specifications

Applications

• Trailed and self-propelled broadacre sprayers

• Orchard and vineyard sprayers

• Slashers, fire fighting and general liquid transfer systems using ARAG control units

NOTE:

Inlet hose connection sizes to be added (19 mm / 25 mm / 30 mm / 32 mm / 3/4″ / 1″ / 1 1/4″).
