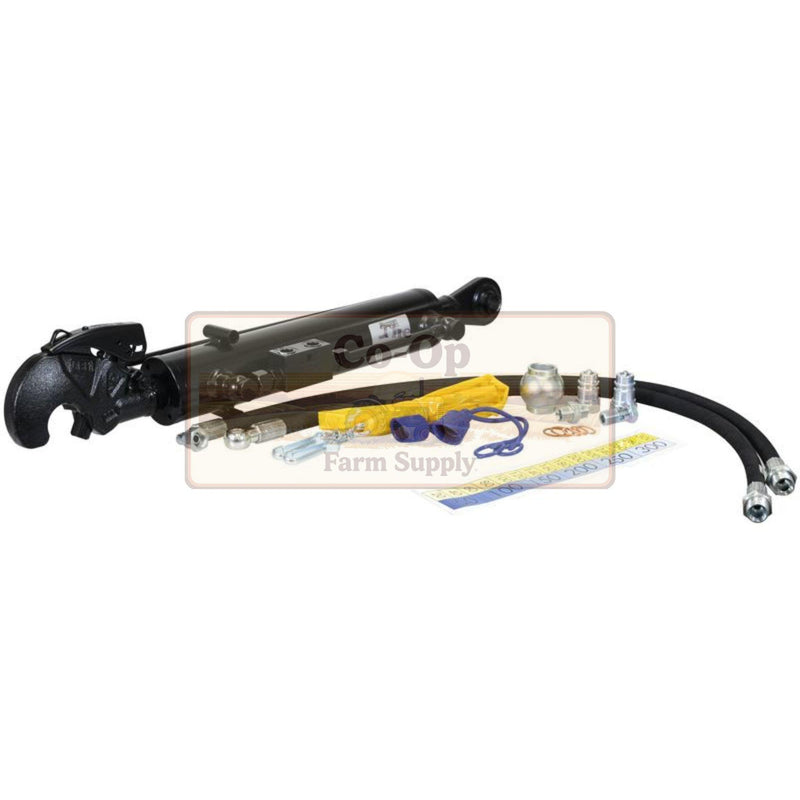

A hydraulic tractor Top Link hitch kit with a black metal hitch assembly, black hydraulic hoses, yellow and blue mounting hardware, and small metal fittings, displayed on a white background with a faint Farm Supply watermark.

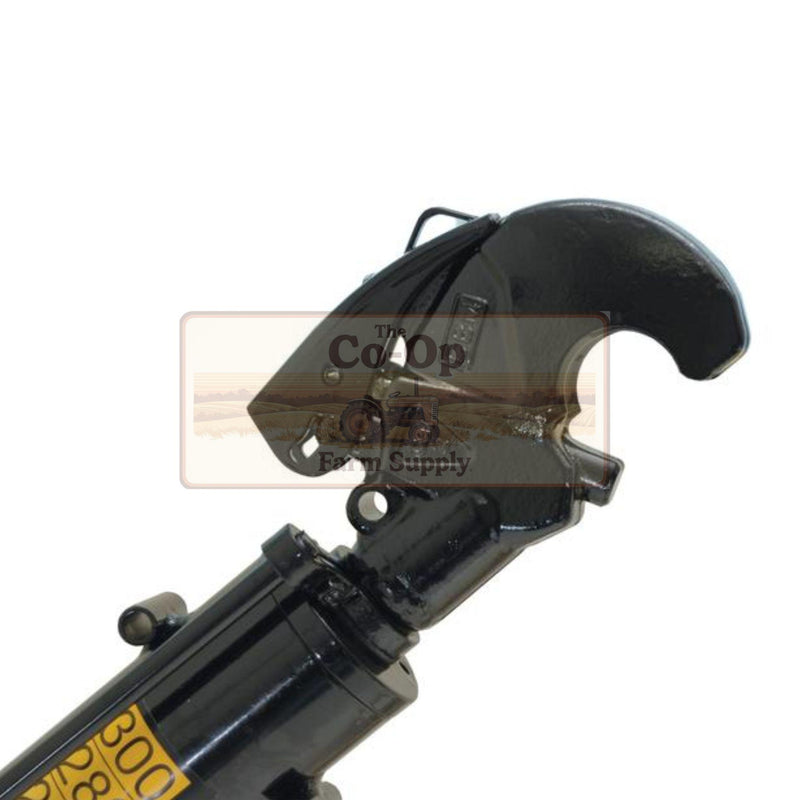

A close-up of a black hydraulic line clamp with a curved jaw, featuring a yellow label on the cylinder and a semi-transparent watermark overlay.

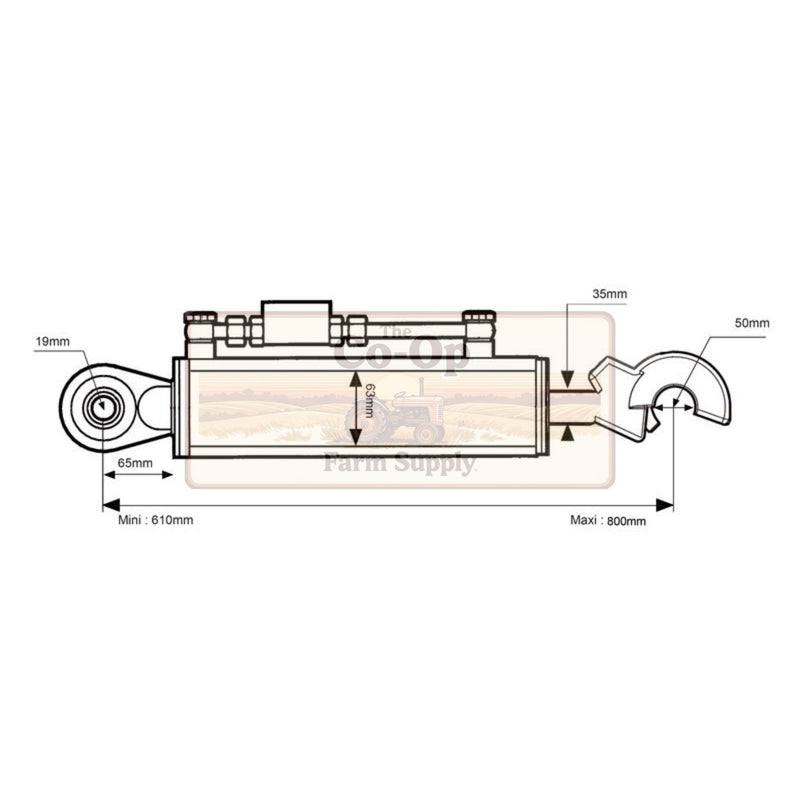

Technical dimension diagram of a cylindrical mechanical component with mounting holes and measurement labels, shown on a white background with a faint Farm Supply watermark.

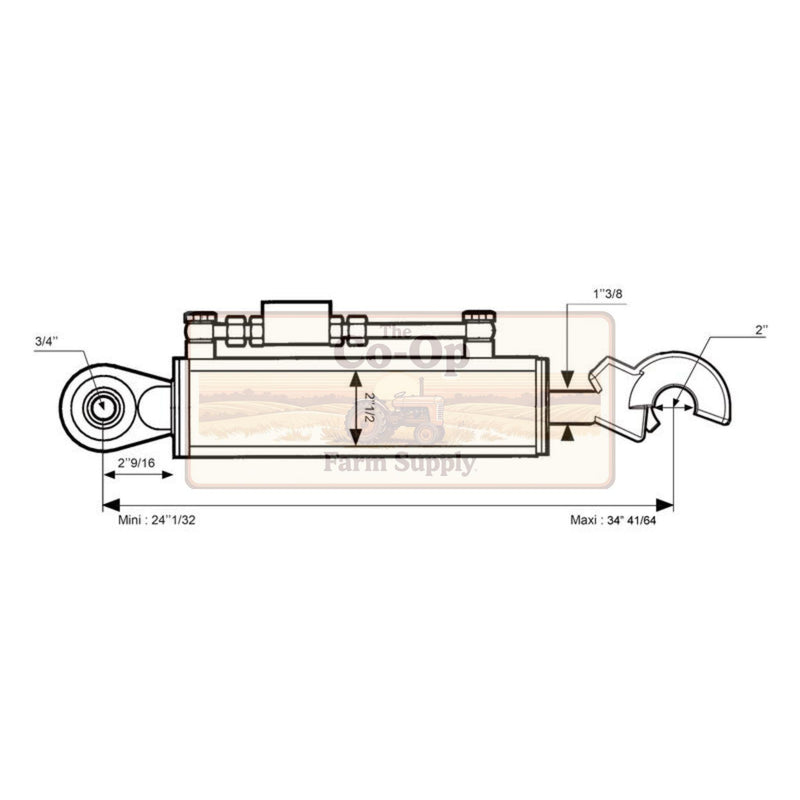

Technical dimension drawing of a cylindrical farm implement or attachment with roller and hook ends, showing measurements such as 3/4", 1 1/3 8", 2", 2 9/16", and min/max dimensions on a white background.
A hydraulic tractor Top Link hitch kit with a black metal hitch assembly, black hydraulic hoses, yellow and blue mounting hardware, and small metal fittings, displayed on a white background with a faint Farm Supply watermark.
A close-up of a black hydraulic line clamp with a curved jaw, featuring a yellow label on the cylinder and a semi-transparent watermark overlay.
Technical dimension diagram of a cylindrical mechanical component with mounting holes and measurement labels, shown on a white background with a faint Farm Supply watermark.
Technical dimension drawing of a cylindrical farm implement or attachment with roller and hook ends, showing measurements such as 3/4", 1 1/3 8", 2", 2 9/16", and min/max dimensions on a white background.

Hydraulic Top Link – Cat.1/2 (Ø19/25mm) Ball & Q.R CBM Hook, 63mm Bore

$798.38 - $798.38
$798.38
$798.38 - $798.38
$798.38

Sparex Hydraulic Top Link – Cat.1/2 (Ø19/25mm) Ball & Q.R CBM Hook

This heavy-duty hydraulic top link is a direct-fit replacement designed for Category 1/2 three-point linkage systems. Featuring a ball tractor end (Ø19mm) and a quick-release CBM hook implement end (Ø25mm), it delivers precise depth control and fast implement changeovers in demanding paddock conditions. Supplied complete with hose set, chain & ball, and marker label.

Specifications

  • Minimum Length: 610mm (24")
  • Maximum Length: 880mm (34-5/8")
  • Cylinder Bore: 63mm (2-3/8")
  • Rod Ø: 35mm
  • Tractor End: Ball (Ø19mm – Cat.1)
  • Implement End: Q.R CBM Hook (Ø25mm – Cat.2)
  • Category: 1/2 (Ø19/25mm)
  • Check Valve Position: Side
  • Lift @ 180 bar: 3,960 kg
  • Thrust @ 180 bar: 5,730 kg
  • Suitable for Tractors up to: 100hp (74kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)

OEM Part Numbers

Ford / New Holland

47387705, 84204061, 47364027

Suitable For Make/Model

Case IH / International Harvester

FARMALL 55C, FARMALL 65C, FARMALL 75C

Ford / New Holland

T3.50F, T3.55F, T3.60F, T3.65F, T3.70F, T3.75F, T3.80F, T3010, T3020, T3030, T3040, T4.55, T4.55 - POWERSTAR, T4.55S, T4.65, T4.65 - POWERSTAR, T4.65S, T4.75, T4.75 - POWERSTAR, T4.75S, TD3.50, TI4.55, TI4.65, TI4.75

Kubota

M8560, M9960
