Imovilli M30 diaphragm

Original price $1,040.90 - Original price $1,040.90
Original price
$1,040.90 - $1,040.90
Current price $1,040.90

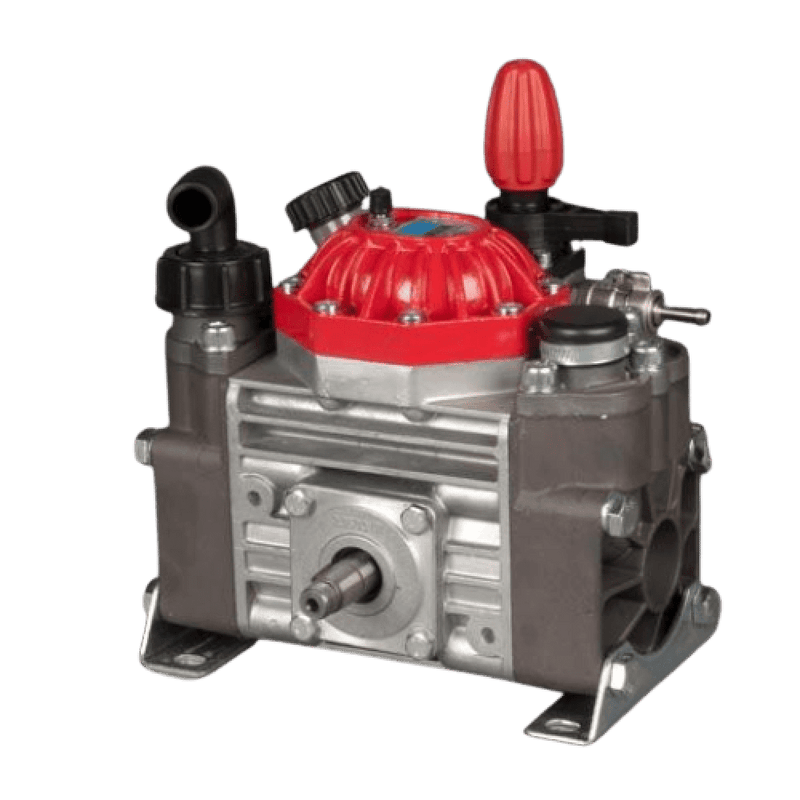

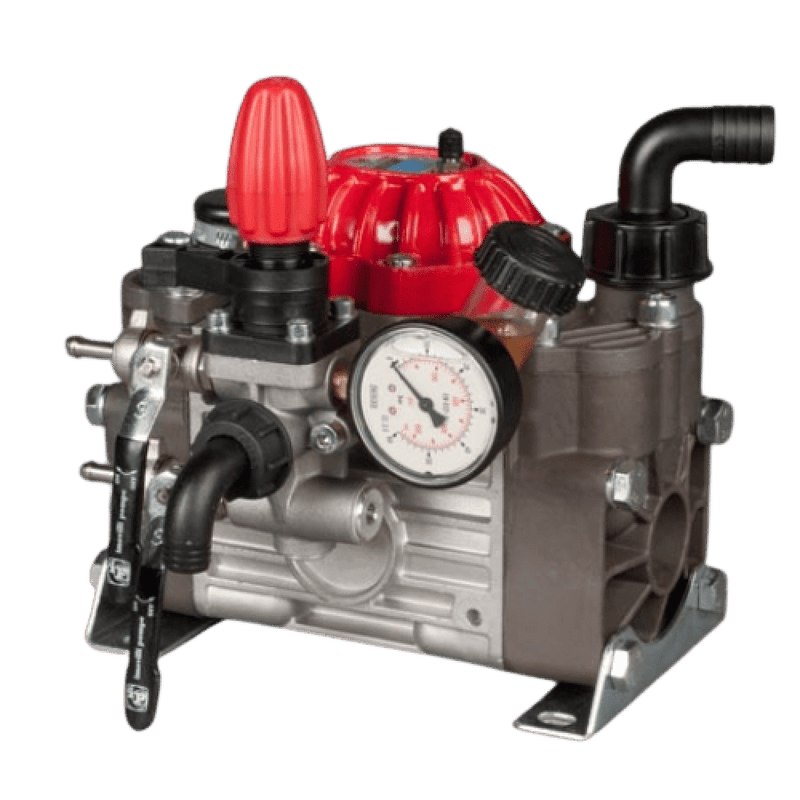

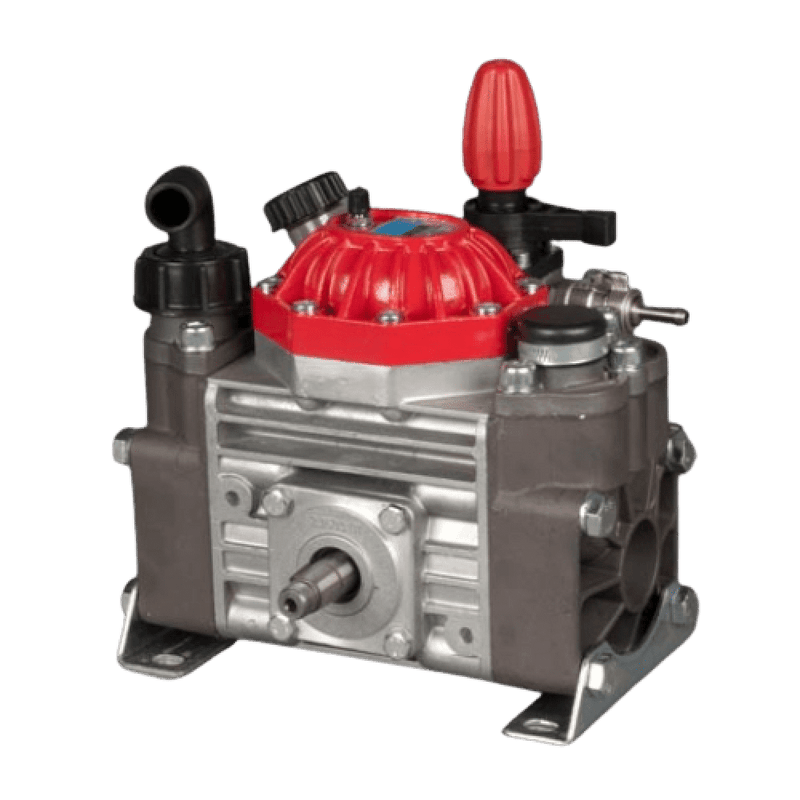

The Imovilli Pump M30 is a two diaphragm, semi-hydraulic, medium pressure pump that is commonly used for chemical spraying and disinfecting applications.

Includes a direct mounted pressure relief valve as standard.

Its internal manifolds, and all wetted parts consisting of an anodized anti-corrosion material make this pump ideal for use with certain agricultural chemicals.


  • Two diaphragm, semi-hydraulic pump
  • Aluminum pump body and manifolds
  • Anodized aluminum pump head
  • Stainless steel check valve
  • Synthetic resin valve cage
  • Nitril rubber diaphragms
  • Case hardened steel pump shaft
  • With pulsation dampener

Tech Data:


Max. Flow: 8.7 GPM
Max. Pressure: 435 PSI
Max. Pump Speed: 550 RPM
Max. Suction Lift: 10'
Power Requirement: 3 HP
Port Sizes: 1" inlet, 3/8" outlet
Shaft Size: 3/4" (20 mm) tapered
