Imovilli M50 Diaphragm Pump with control valve – 50 L/min | 40 Bar | PTO Drive | Spraying

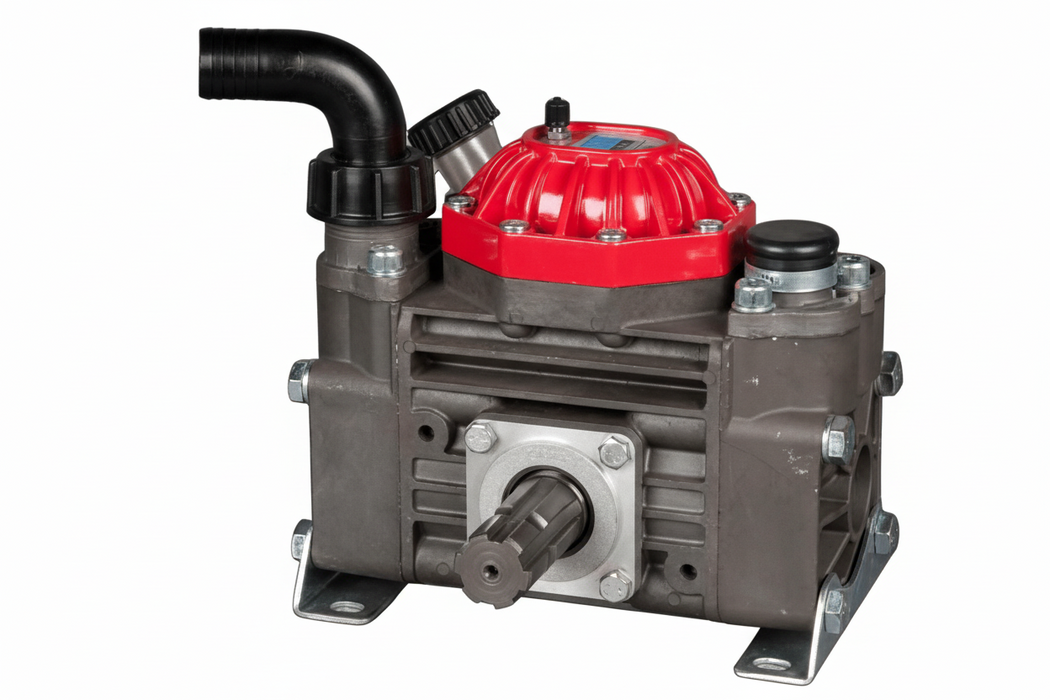

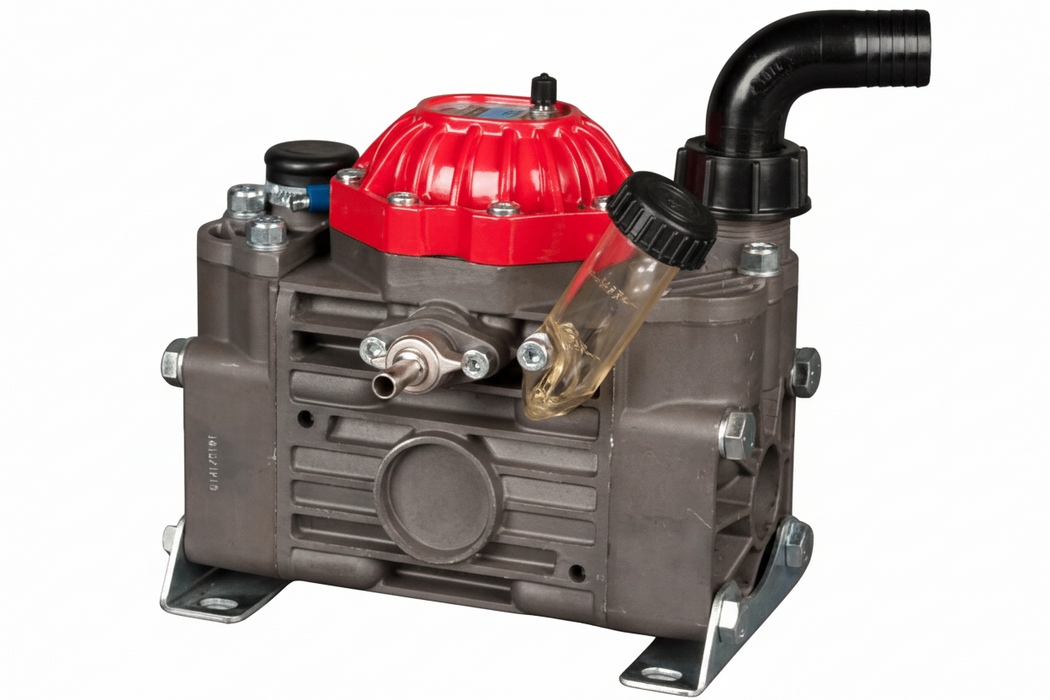

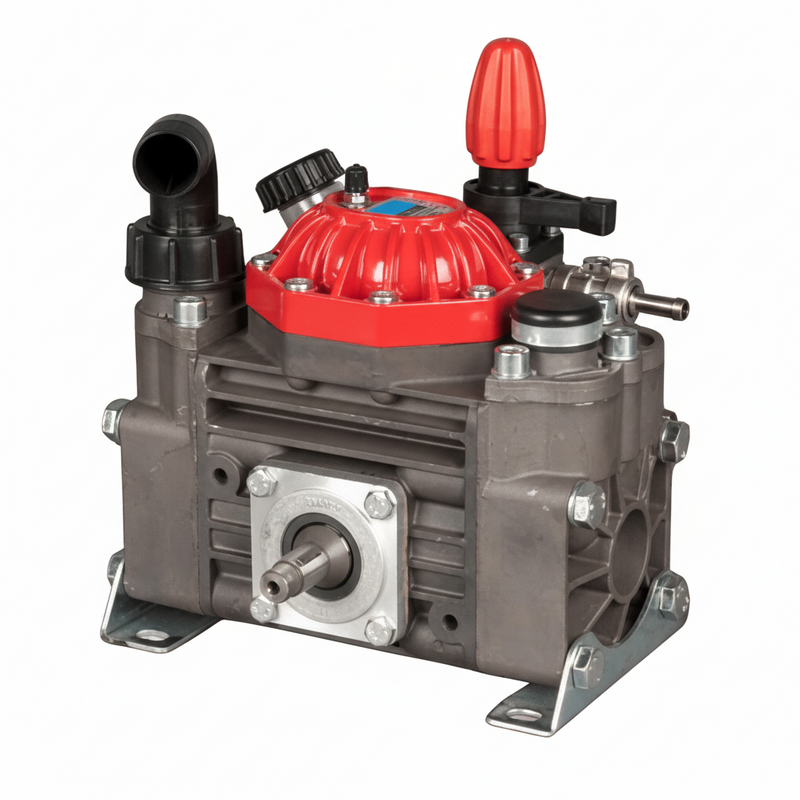

Imovilli M50 Diaphragm Pump – 50 L/min @ 40 Bar

The Imovilli M50 is a heavy-duty, semi-hydraulic two-diaphragm pump built for demanding spraying and disinfecting applications. With an anodized aluminium pump head, stainless steel check valves, and nitrile rubber diaphragms, it’s engineered to handle corrosive chemicals and high-pressure work without compromise. A pulsation dampener is included as standard, and all wet-end parts are anodized for long-term corrosion resistance. Made in Italy.

Specifications

• Max Flow Rate: 50 L/min
• Max Pressure: 40 Bar (580 psi)
• Max Pump Speed: 550 RPM
• Power Requirement: 5.5 HP
• Port Sizes: 1" inlet, 3/8" outlet
• Max Suction Lift: 3m
• Diaphragms: 2 x semi-hydraulic, nitrile rubber
• Pump Head & Body: Anodized aluminium
• Check Valves: Stainless steel with synthetic resin valve cage
• Pump Shaft: Case hardened steel
• Pulsation Dampener: Included

Variants

• I.3027.001 – 20mm taper input shaft (with control valve fitted)
• I.3027.003 – 1-3/8" male 6 spline (Z6) input shaft (with control valve fitted)

Applications

• Boom & broadacre spraying
• Orchard & vineyard spraying
• Disinfecting & sanitation
• Chemical & liquid fertiliser transfer
