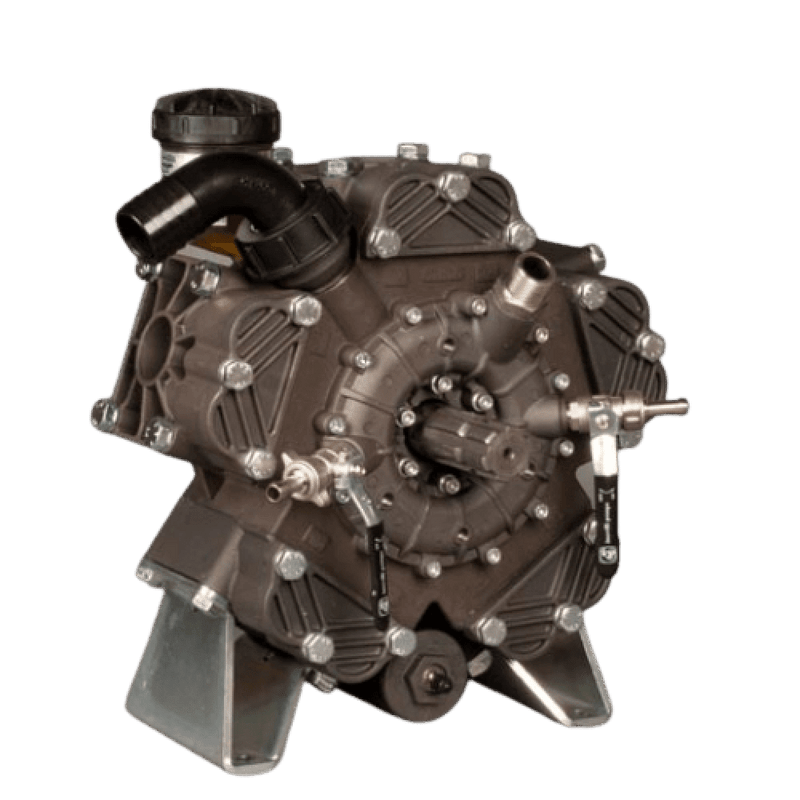

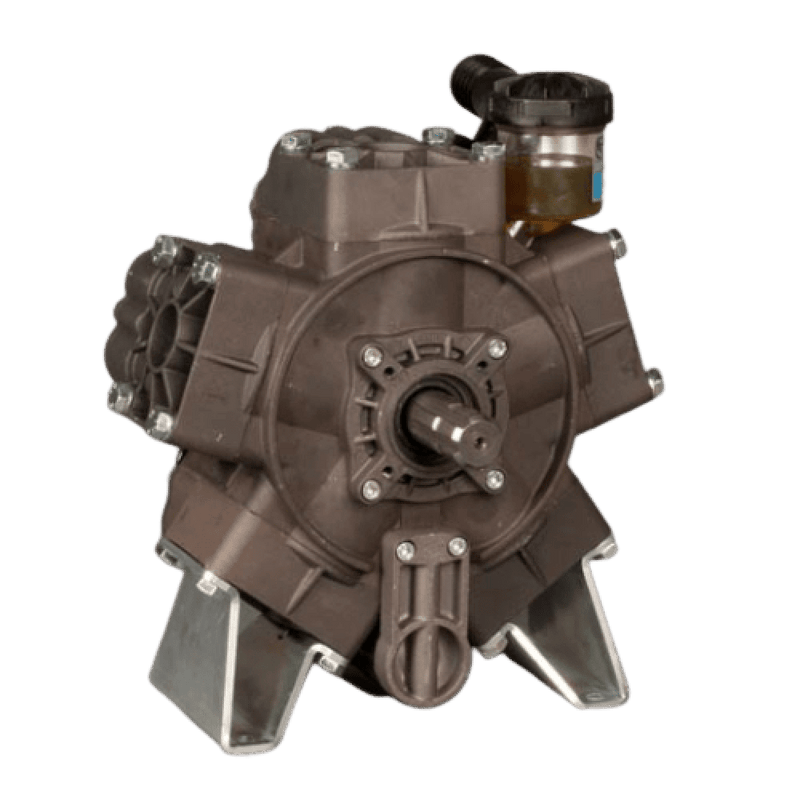

Imovilli M135 High Pressure Diaphragm Pump

Original price $2,276.00 - Original price $2,276.00
Original price
$2,276.00 - $2,276.00
Current price $2,276.00

The Imovilli Pump IP M135 Pump is a five diaphragm, semi-hydraulic pump that is well-suited for weed spraying and disinfecting applications.

Internal manifolds, and its all wetted parts consisting of anodized anti-corrosion material make this pump great to use with certain agricultural chemicals.


  • Five diaphragm, semi-hydraulic pump
  • Anodized aluminum pump body, pump head, and manifolds
  • Stainless steel check valve
  • Synthetic resin valve cage
  • Nitrile rubber diaphragms
  • Case hardened steel pump shaft
  • With pulsation dampener

Tech Data:

Max. Flow: 30.4 GPM
Max. Pressure: 725 PSI
Max. Pump Speed: 550 RPM
Max. Suction Lift: 10'Power Requirements: 16 HP
Port Sizes: 1-1/2" inlet, 3/4" outlet
Shaft Size: 1-3/8" male splined through shaft
