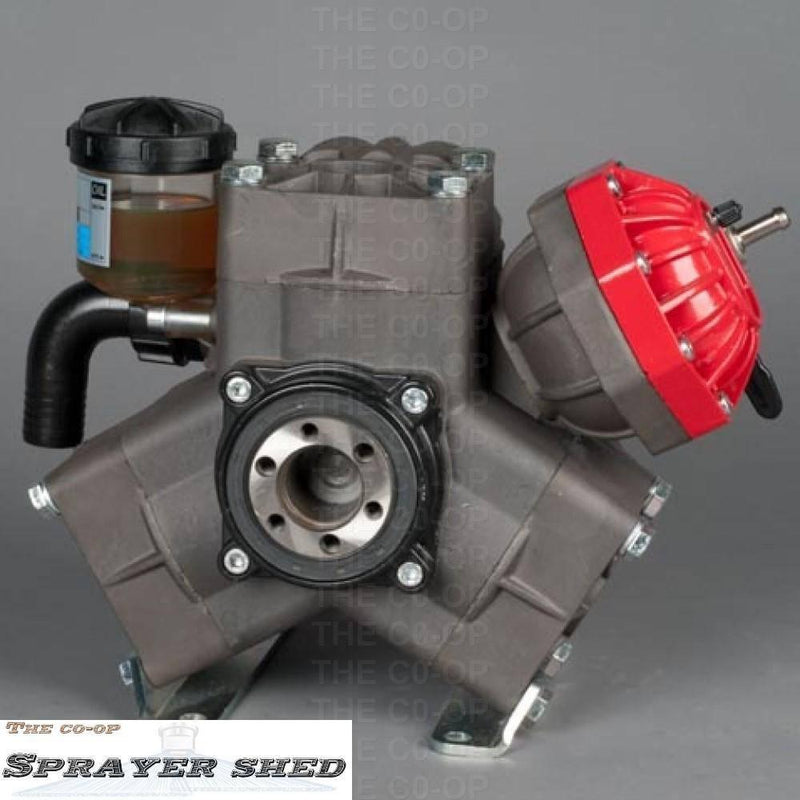

Imovilli M73 is capable of producing 70 l/min and 50 bar @ 550 RPM The 3 semi-hydraulic diaphragm pump, Internal manifolds, all wetted parts are anodized anti-corrosion and has an optional pressure control assembly (incorporated or remote).

Applications:

• Spraying
• Orchard Airblast
• Mistblowers

Versions:

Through shaft M 1"3/8 - M 1"3/8 splined

Special order models available at request:

1. Through shaft M 1"3/8 splined - flange with 6 bolts
2. Pump sets

Tech data:

Speed: 550 RPM max
Pressure: 50 bar max
Capacity: 70 l/1' max
Weight: 18 Kg
