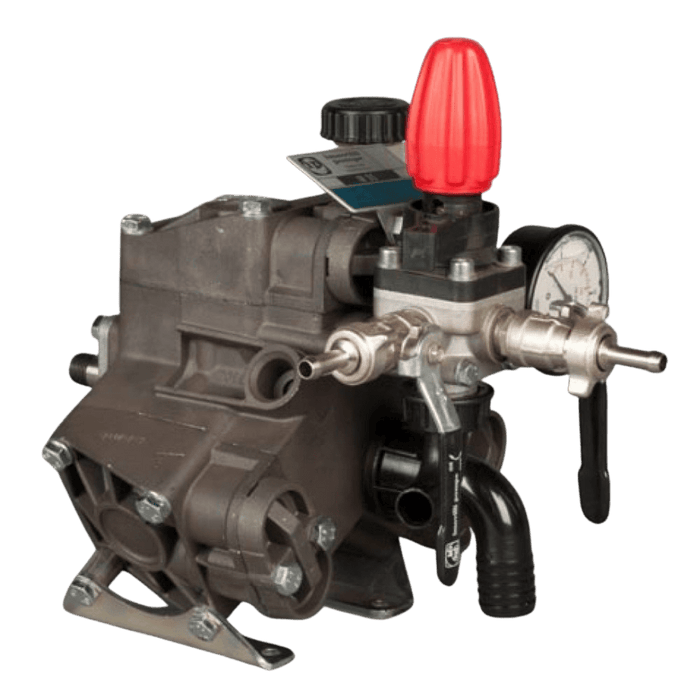

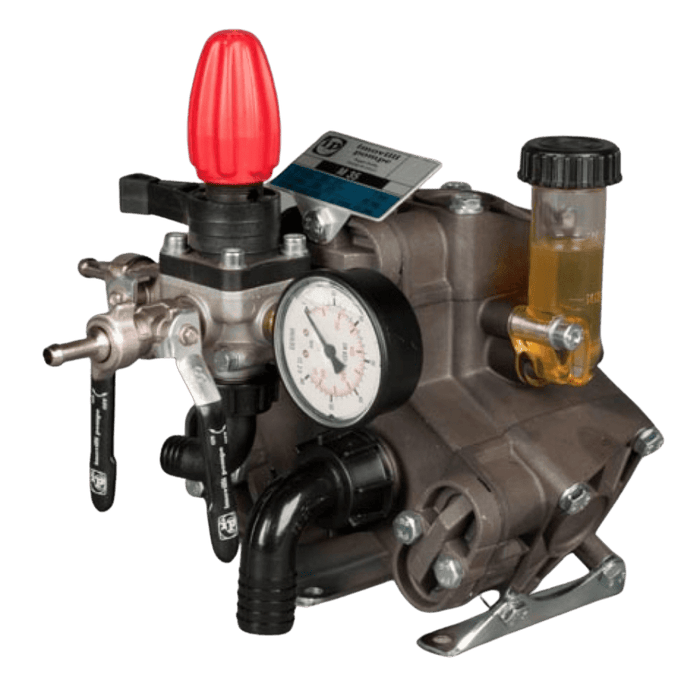

Imovilli M35 Pump 39 L/min @ 40 Bar
Imovilli M35 is a two diaphragm, semi-hydraulic, medium pressure pump that is commonly used for spraying and disinfecting applications.
The M35 Includes a relief valve.
Its internal manifolds, and all wetted parts consisting of an anodized anti-corrosion material make this pump ideal for use with certain agricultural chemicals.
- Max. Flow: 39 L/min
- Max. Pressure: 40 Bar
- Max. Pump Speed: 550 RPM
- Max. Suction Lift: 3m
- Power Requirement: 3 HP
- Port Sizes: 1" inlet, 3/8" outlet
- Shaft Size: 3/4" (20 mm) tapered
- Two diaphragm, semi-hydraulic pump
- Aluminum pump body and manifolds
- Anodized aluminum pump head
- Stainless steel check valve
- Synthetic resin valve cage
- Nitrile rubber diaphragms
- Case hardened steel pump shaft
- With pulsation dampener
