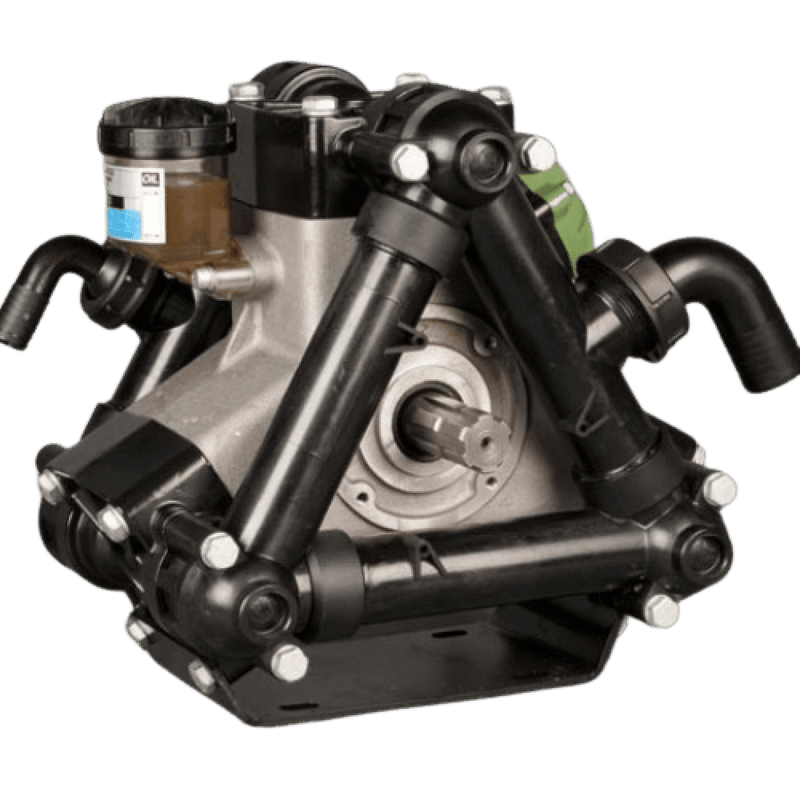

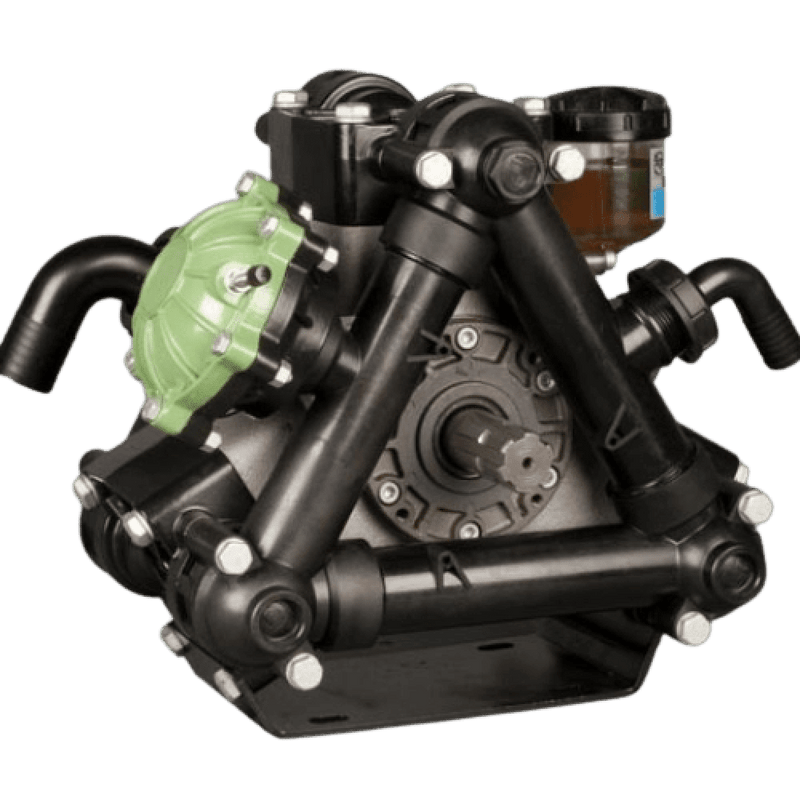

Imovilli D163 Diaphragm Pump, 165 L/min @ 20 Bar

Original price $2,010.79 - Original price $2,010.79
Original price
$2,010.79
$2,010.79 - $2,010.79
Current price $2,010.79

Imovilli D163, 165 L/min @ 20 bar - 550 Rpm, Three diaphragm semi-hydraulic pump, External manifolds, all wetted parts are in corrosion resistant materials, plastic coated aluminium pump heads. For use with remote control only.

Applications:

  • Row-crops spraying
  • Liquid fertilizing
  • Boom Spraying

Versions:

Male 1-3/8" input Shaft

Through shaft M 1" 3/8- M 1" 3/8 splined (pictured) special order only call 1300833538 for further detail and availablilty.

Technical Data:

  • Speed: 550 RPM max
  • Pressure: 20 bar max
  • Capacity: 165 l/1' max
  • Weight: 29,5 Kg
