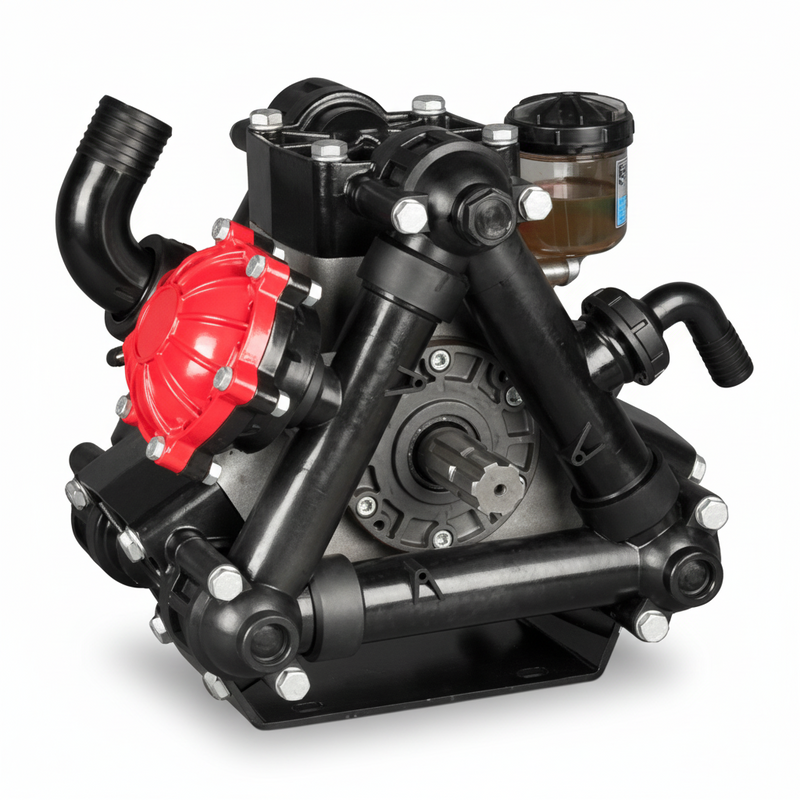

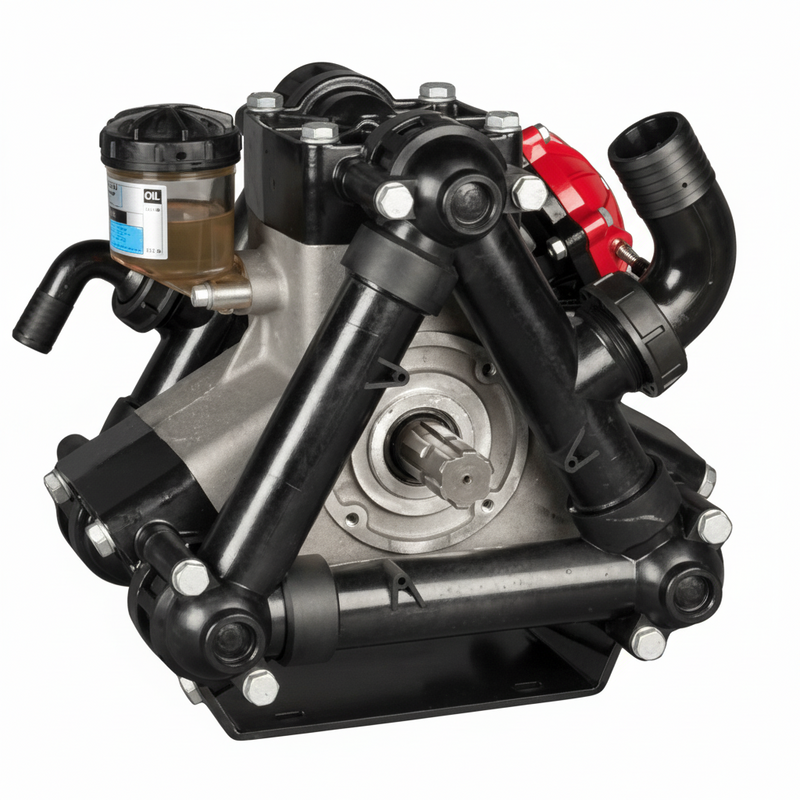

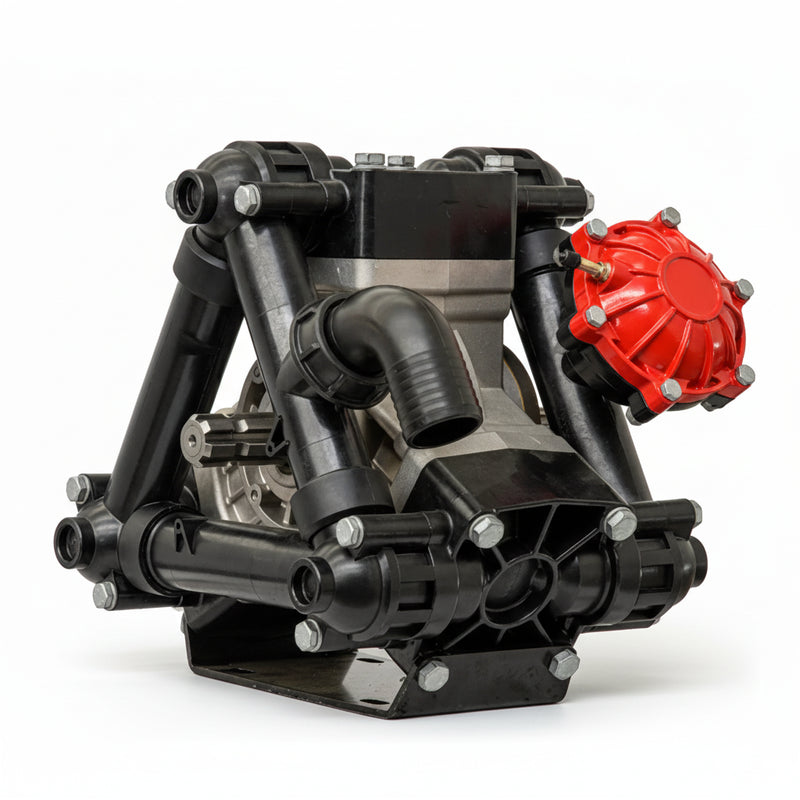

Imovilli D203 Three-Diaphragm Pump – 209 L/min @ 20 Bar

The Imovilli D203 is a heavy-duty, three-diaphragm piston-backed pump engineered for high-volume agricultural spraying applications. Running at up to 209 L/min at 20 bar and 550 RPM, it delivers consistent, reliable output in demanding field conditions.

Oil-immersed for extended service life, the D203 features external manifolds and plastic-coated aluminium pump heads — all wetted parts are manufactured from corrosion-resistant materials for long-term chemical compatibility. Designed for remote control operation only.

Applications

• Boom spraying
• Row-crop spraying
• Liquid fertilising

Technical Specifications

• Max Speed: 550 RPM
• Max Pressure: 20 bar
• Max Capacity: 209 L/min
• Input/Output: M 1" 3/8 through shaft – Output M 1" 3/8 6 spline
• Weight: 32 kg
