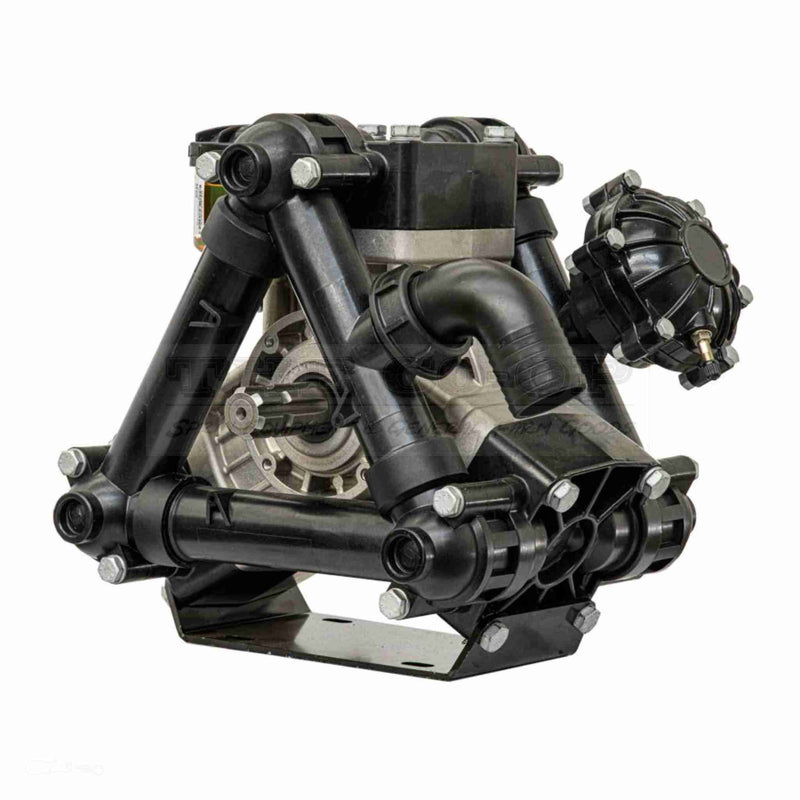

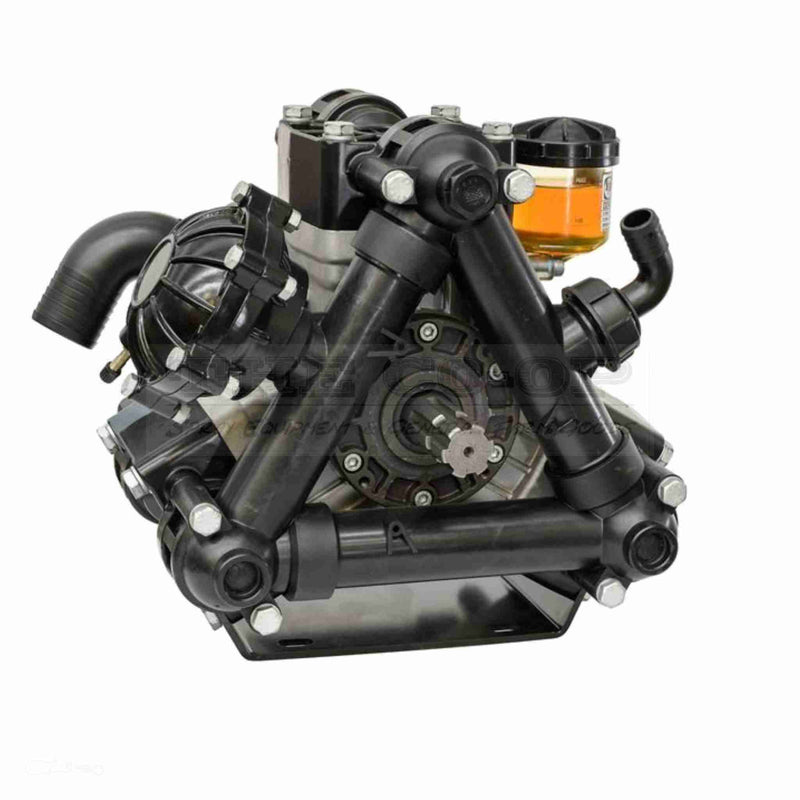

Imovilli D243 Diaphragm Pump 235 L/min 20 Bar – PTO Through Shaft

Imovilli D243 Diaphragm Pump – 235 L/min | 20 Bar

The Imovilli D243 is a heavy-duty, three-diaphragm, piston-backed oil-immersed pump designed for high-volume agricultural spray applications. With external manifolds, fully corrosion-resistant wetted parts, and plastic-coated aluminium pump heads, it delivers exceptional reliability under continuous field conditions. Designed for use with remote pressure control only.

Key Features

• 3 Piston-Backed Oil-Immersed Diaphragms – for smooth, high-volume output and long service life
• External Manifolds – easy access for servicing and maintenance
• Chemical-Resistant Construction – all wetted parts in corrosion-resistant materials
• Plastic-Coated Aluminium Pump Heads – lightweight and durable
• Through Shaft Drive – input and output 1-3/8" 6 spline (Z6)
• Remote Pressure Control – designed for remote-mounted pressure control valve

Applications

• Boom spraying
• Row crop spraying
• Liquid fertilisation

Specifications

• Max Flow Rate: 235 L/min
• Max Pressure: 20 Bar
• Max Pump Speed: 550 RPM
• Drive: Through shaft – Input & Output 1-3/8" 6 Spline (Z6)
• Part No: 3084.001
• Weight: 34 kg
