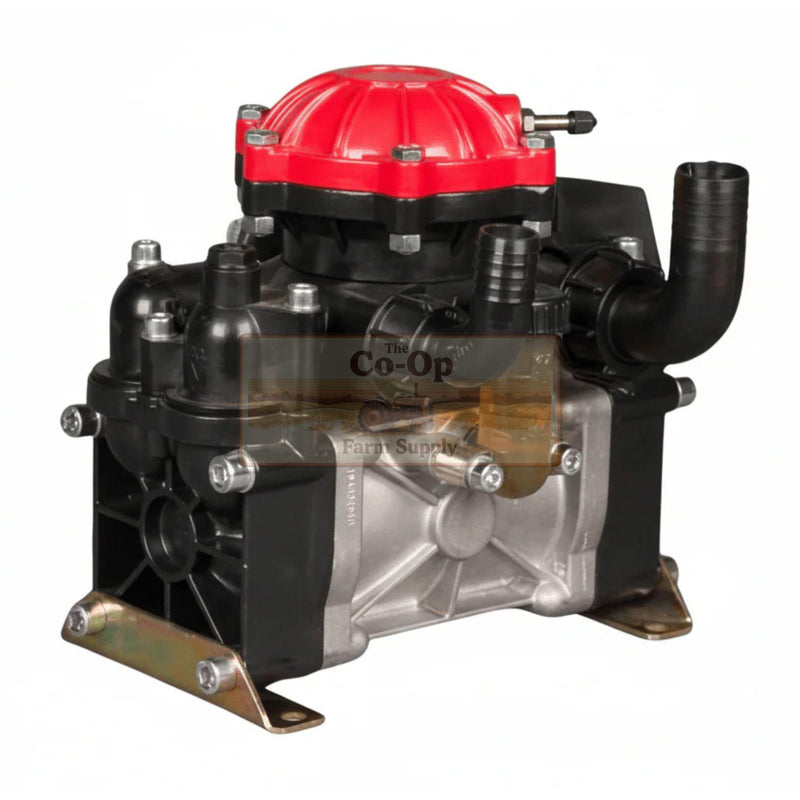

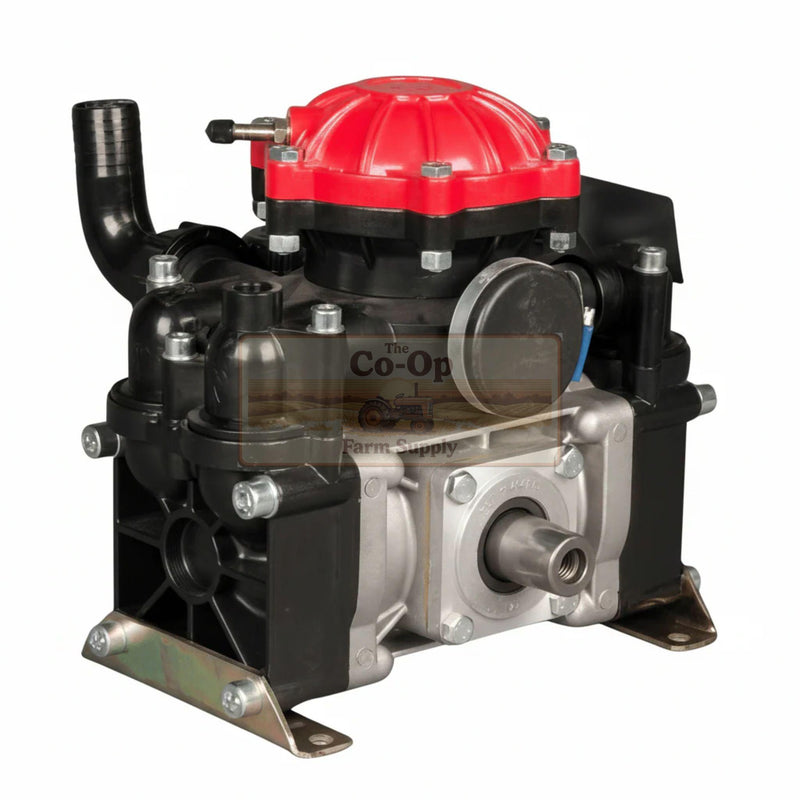

Imovilli D82 Diaphragm Pump 79 L/min 20 Bar – 30mm Taper shaft for Engine Drive

Imovilli D82 Diaphragm Pump – 79 L/min | 20 Bar

The Imovilli D82 is a two-diaphragm, semi-hydraulic high-pressure pump built for demanding agricultural spray applications. With external manifolds, fully corrosion-resistant wetted parts, and plastic-coated aluminium pump heads, it's engineered for long service life in the field. Self-priming.

Higher operating pressure makes it equally suited to tree spraying and root feeding applications alongside standard boom and row crop work.

Key Features

• 30mm tapered shaft - designed for reduction gearbox engine drive or pulley drive
• Self-Priming – up to 1.8m suction lift
• Two Semi-Hydraulic Diaphragms – Heavy duty rubber for chemical resistance
• External Manifolds – reinforced resin for easy servicing
• Corrosion-Resistant Wetted Parts – stainless steel check valves, synthetic resin valve cage
• Plastic-Coated Aluminium Pump Heads – lightweight and durable
• Visual Oil Level Sight Glass
• Case-Hardened Steel Pump Shaft

Applications

• Weed control
• Commercial roadside vegetation spraying
• Boom spraying
• Row crop spraying
• Tree spraying
• Root feeding
• Liquid fertilisation

Specifications

• Max Flow Rate: 79 L/min
• Max Pressure: 20 Bar
• Max Pump Speed: 550 RPM
• Power Requirement: 3.8 HP
• Max Suction Lift: 1.8m
• Inlet Port: 1-1/4"
• Outlet Port: 3/4"
• Weight: 12 kg
