Pressure filter. 3/4" ports
- Female threads 3/4" BSP
- Max. working pressure 14 bar
- Filtering capacity 80 ~100 l/min
- Cartridge Ø38 x 89 mm
- Fixing points on both sides
- Polypropylene body
- 32, 50, 80 & 100 Stainless Steel mesh options

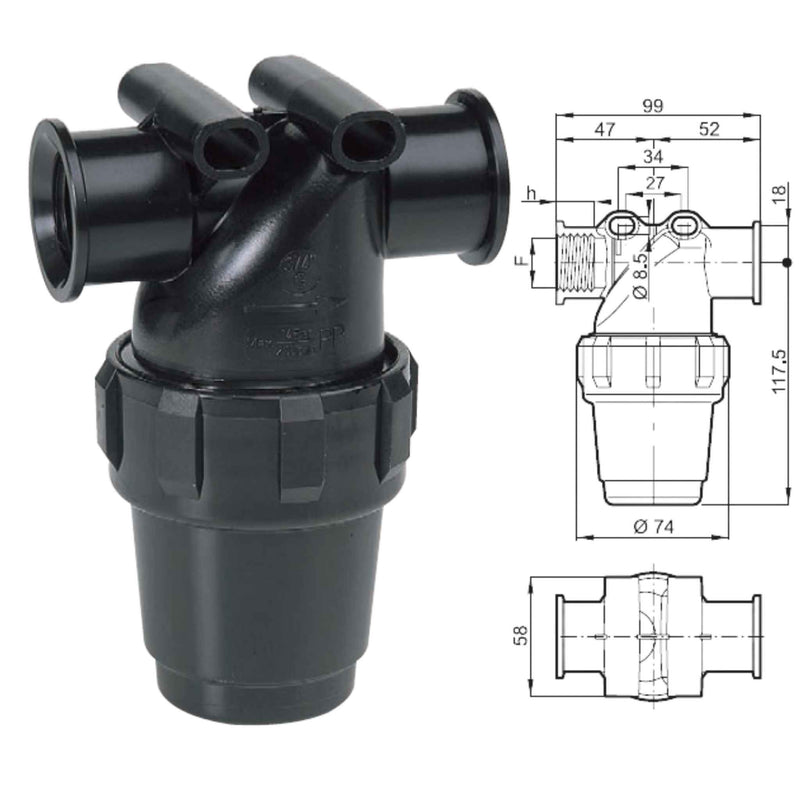

Image references
- h = 23 mm
- F = 3/4" BSP
