Red 120° - Ceramic Tip – Lechler IDK Compact Air Induction - Low Drift fan Spray tips

Ceramic tip for premium nozzle life = minimal wear and spray distortion.

When drift costs you coverage and compliance, the Lechler IDK is the nozzle that delivers. A compact air induction flat fan tip engineered for very low drift across a wide pressure range — from ultra-coarse at low pressure to medium droplets at higher pressures. Trusted by broadacre farmers across Australia for herbicide, fungicide, and insecticide applications.

Key Features

• Very low drift potential — proven performance up to 3.0 bar (size dependent)
• Wide operating pressure range — 1 to 6 bar
• Compact design: 8 mm width across flats, 22 mm long
• Fits standard TeeJet-style nozzle caps and all bayonet cap systems with 8 mm AF and threaded caps
• Direct replacement for TeeJet AIXR — same calibration rates
• Pairs with IDKS end nozzle (same size) for sharply defined boom edges

Application Rates

At 10 km/h and 3 bar with 50 cm nozzle spacing: 190 L/Ha depending on tip size.

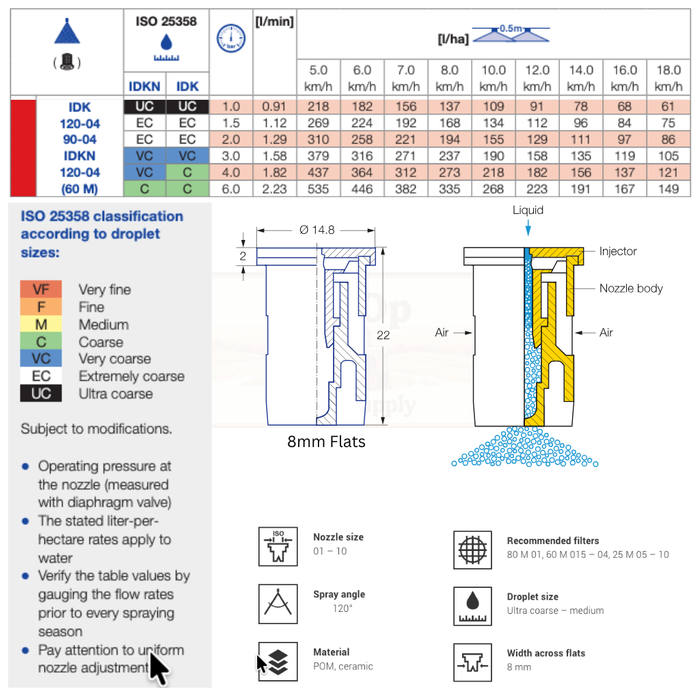

→ Download the full calibration chart (PDF)

Material

• Ceramic Insert — Extended wear life for high-volume or abrasive applications. Ideal for operations where tip longevity is critical.

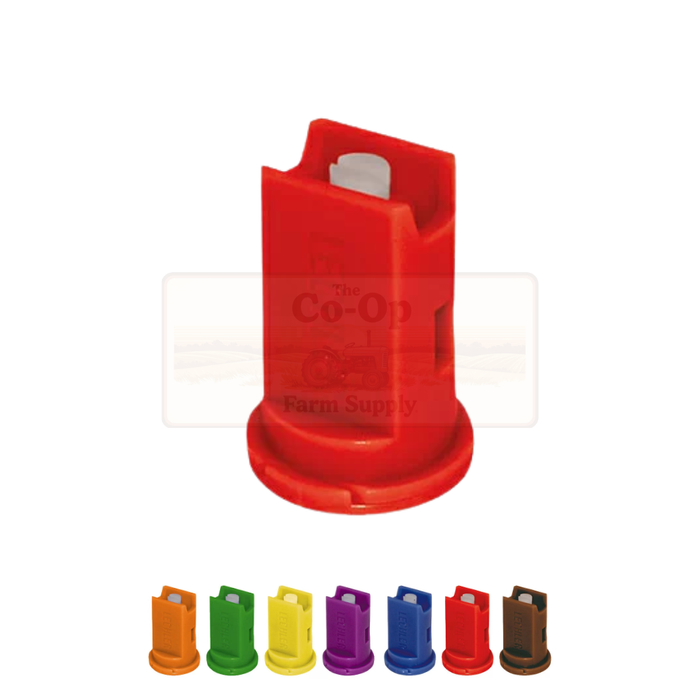

Colour Guide (ISO Standard Flow Rates @ 3 Bar)

• Red — 04 (1.60 L/min)

Suitable Applications
