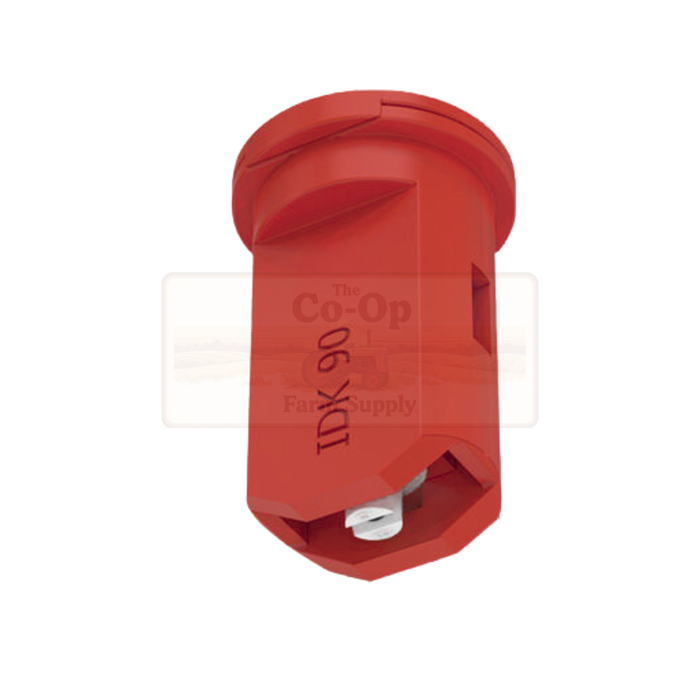

Red – Lechler IDK 90° Compact Air Induction - Low Drift fan Spray tips

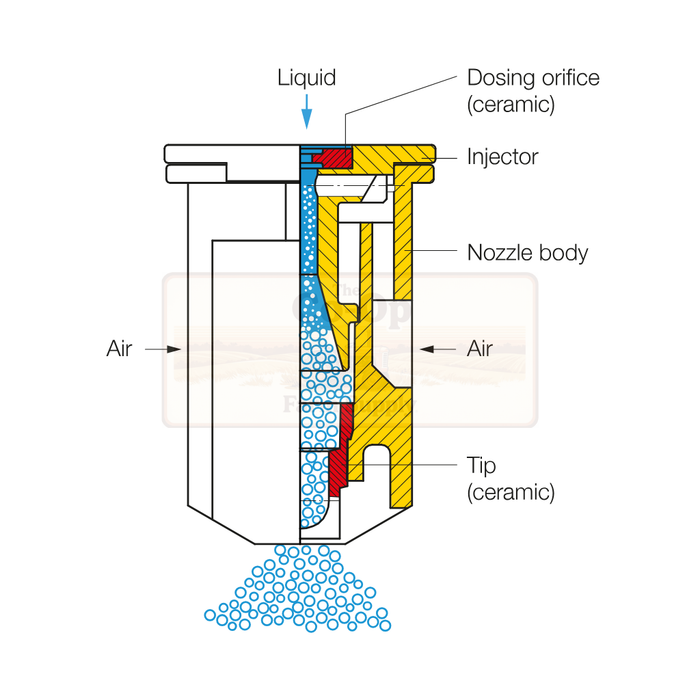

The Lechler IDK 90° is a compact air induction flat fan spray tip engineered for very low drift in viticulture, orchard, and speciality crop applications. With a 90° spray angle and ceramic insert construction, it delivers reliable coverage at extended distances from the target surface — even under variable pressure conditions.

Key Features

• 99/95/90/75/50% drift reduction depending on nozzle size, pressure, and country
• Most compact low-drift air injector flat spray nozzle available
• Only 7 mm longer than a TR hollow cone nozzle
• Large clog-resistant cross-sections
• Soiling on dosing orifice can be simply wiped off
• Breakage-resistant housing with bevelled edges and reinforced walls
• Wide operating pressure range — 2 to 20 bar (optimal 8–15 bar)

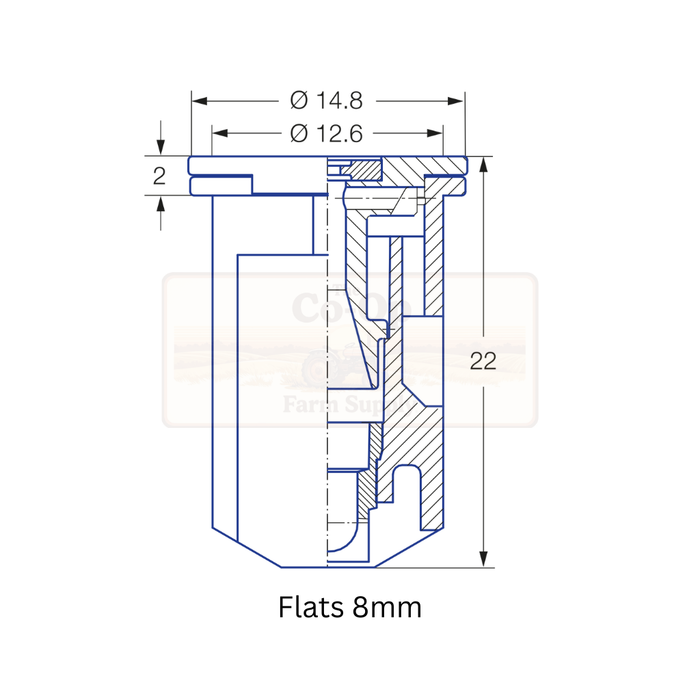

• Compact design: 8 mm width across flats, 22 mm long

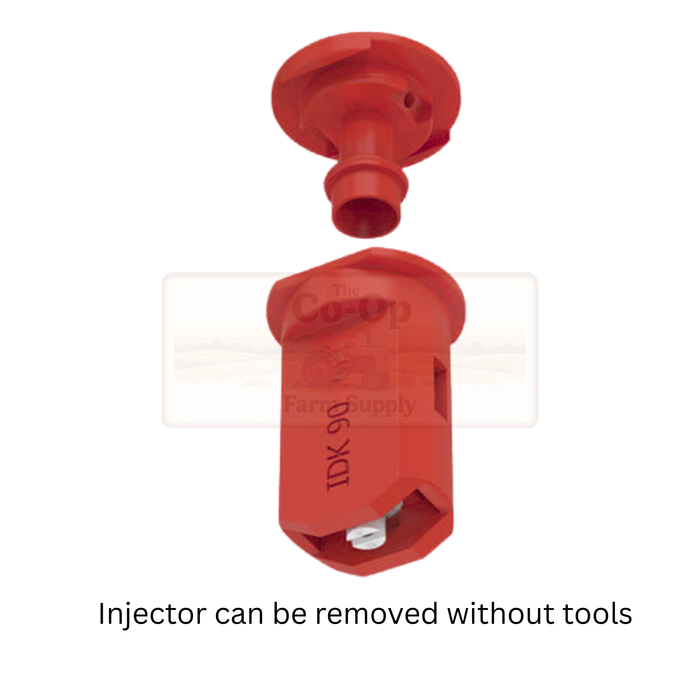

• Fits standard TeeJet-style nozzle caps and all bayonet cap systems with 8 mm AF and threaded caps

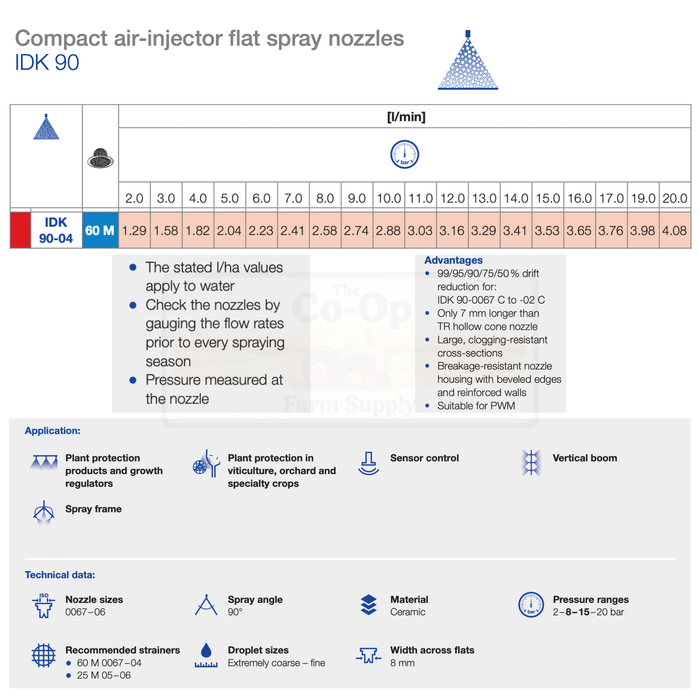

→ Download the full calibration chart (PDF)

Material

• Ceramic Insert — Extended wear life for high-volume or abrasive applications. Ideal where tip longevity is critical.

Flow Rate

• Red (04) — 1.60 L/min @ 3 bar

Suitable Applications
