Off Centre Air Induction Fan Boom Spray tip - Low Drift

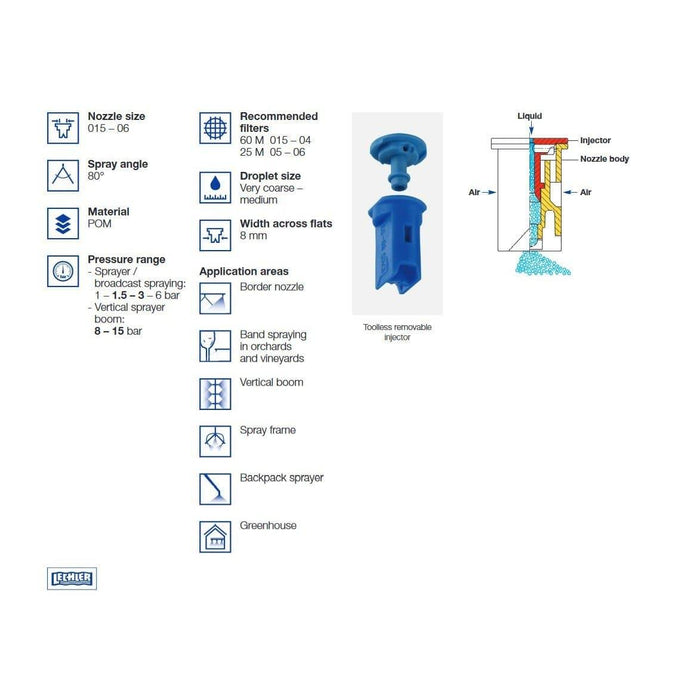

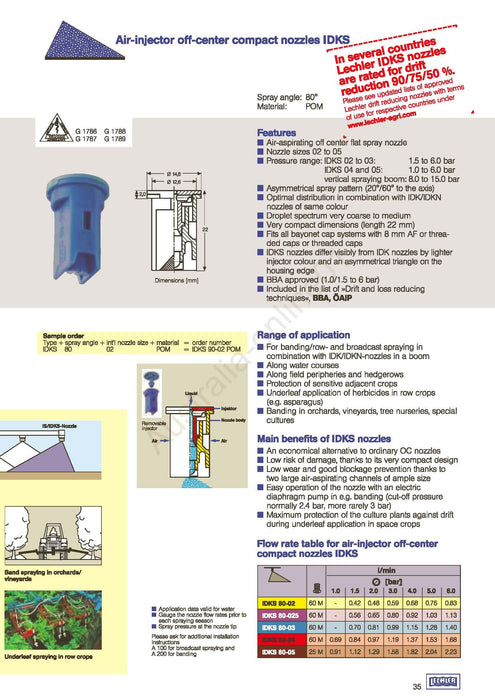

Very low-drift, compact air-injector off centre nozzle for fence-line, under-tree and similar border application and band spraying applications. Nozzles can replace the original Brass offset (OC) type with the latest technology in drift reduced spraying.

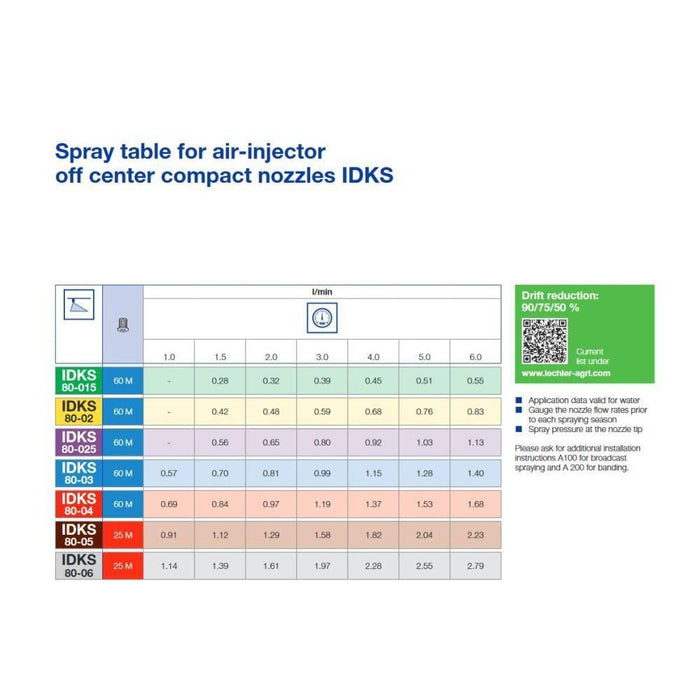

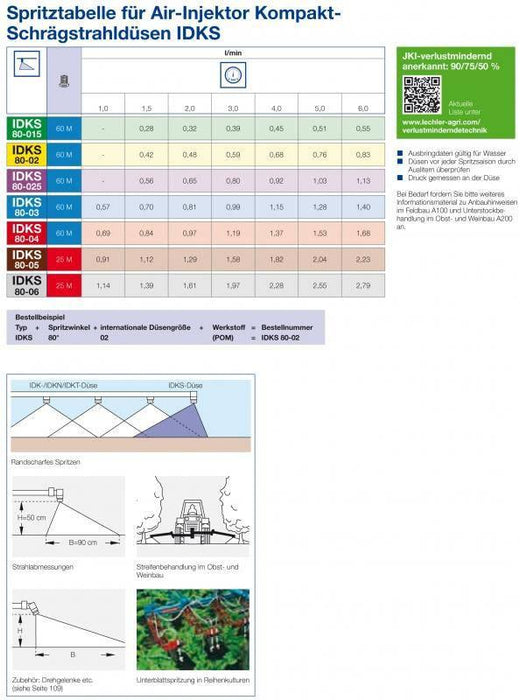

For more Spray boom calibration chart figures CLICK HERE (chart opens in a new screen)

• Fits Standard TeeJet style Nozzle cap

• Air-aspirating flat- boom spray nozzle
• Wide operating pressure range
• Low drift potential

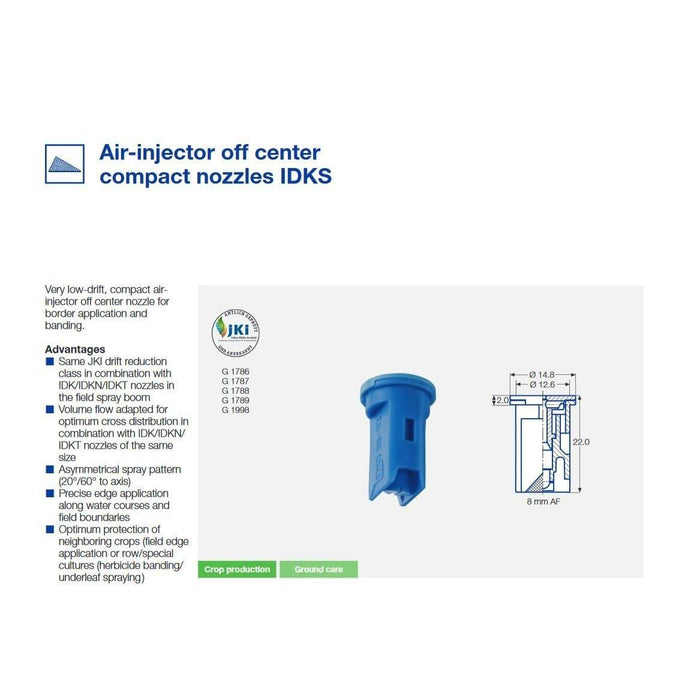

• Very compact design (8 mm width across flats- 22 mm long)
• Can be used in adjustable angle type nozzle holders
• Fits all bayonet cap systems with 8 mm AF and threaded caps
• Combines with IDK Boom nozzle (of equal size)- for sharply defined edges

• Made of moulded POM* resin (a polymer ensuring high chemical stability and an exceptionally long useful life).

*POM or Polyoxymethylene (Acetal) is a high strength, low friction engineering plastic that has excellent wear properties in both wet and dry environments and is chemically resistant to hydrocarbons, solvents, and neutral chemicals.
