Green - POM - Lechler 120° Multirange Flat Fan spray nozzle - Extended Pressure Range

Lechler's State of the art engineering and simulating techiques gaurantee the high quality value of their products to ensure you get best spray performance.

Their LU series of extended range nozzles offer wide pressure variance giving varied application rates with minimum nozzle changes.

Features;

• 120° spray angle for deeper crop penetration

• Nozzle sizes available - 015(Green) to 08 (White)
• Wide operating pressure range - 1.5 to 5.0 bar
• Fits Standard Bayonet caps with 8mm AF and threaded caps with ⌀12.6mm hole
• Fits Standard TeeJet style Nozzle cap (Hardi requires special conversion cap -Click here for more details)
• 120° Spray Angle
• Spray tip Made moulded POM* resin (a polymer ensuring high chemical stability and an exceptionally long useful life).
• Fine to coarse, wide application range (even at low application rates - down to 28 l/Ha @ 18km/h)
• Great for Plant protection and growth regulators

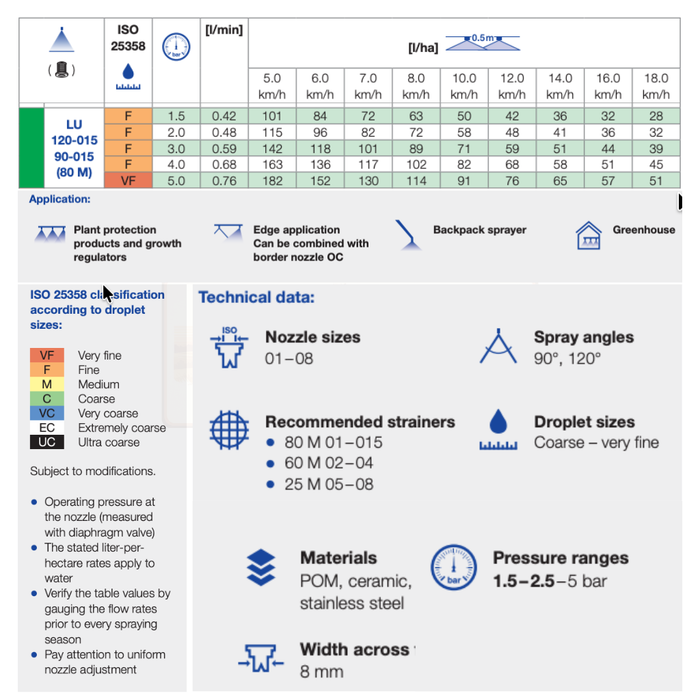

Boom spraying rate is Sprays 71 L/ha at 10 Kph using 3 Bar pressure this is for spray booms with nozzle spacing of 50cm. For more Spray boom calibration chart figures CLICK HERE (chart opens in a new screen

*POM or Polyoxymethylene (Acetal) is a high strength, low friction engineering plastic that has excellent wear properties in both wet and dry environments and is chemically resistant to hydrocarbons, solvents, and neutral chemicals.
