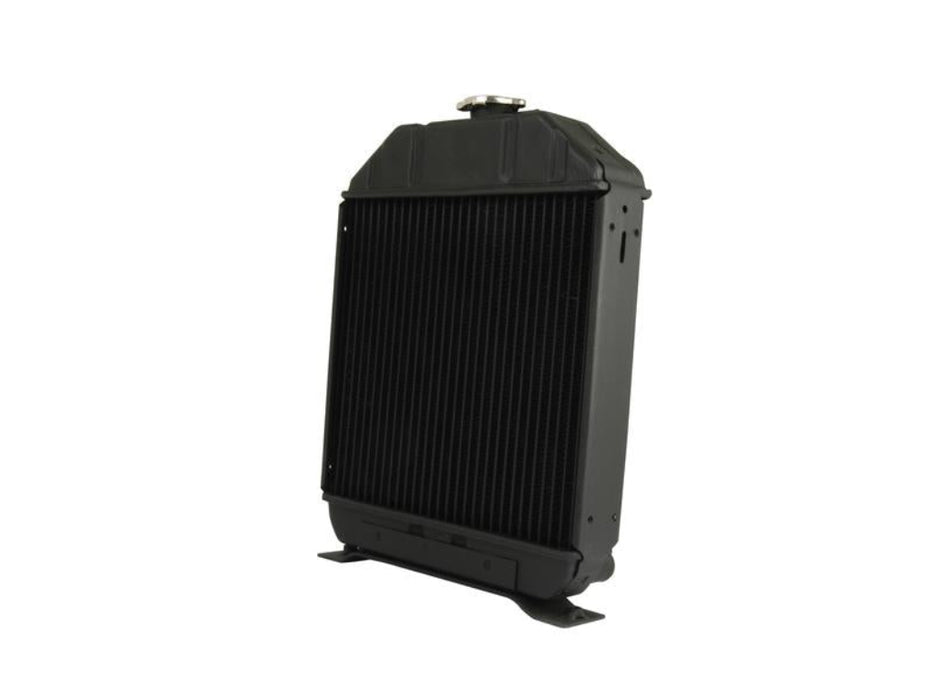

Radiator – Suitable for Kubota L Series

Radiator – Suitable for Kubota L Series

Keep your Kubota tractor running at peak temperature with this direct-fit replacement radiator from Sparex. Supplied complete with a radiator cap and engineered for reliable, long-lasting cooling performance in demanding field conditions.

Why Replace Instead of Repair?

A repaired radiator is a temporary fix and may even reduce coolant flow — a replacement is a long-term solution. Patched cores and re-soldered tanks are prone to re-failure, especially under the heat and pressure cycles of hard-working tractors. A new radiator restores full cooling capacity, protects your engine from overheating damage, and gets you back in the paddock faster. When downtime costs money, replacement pays for itself.

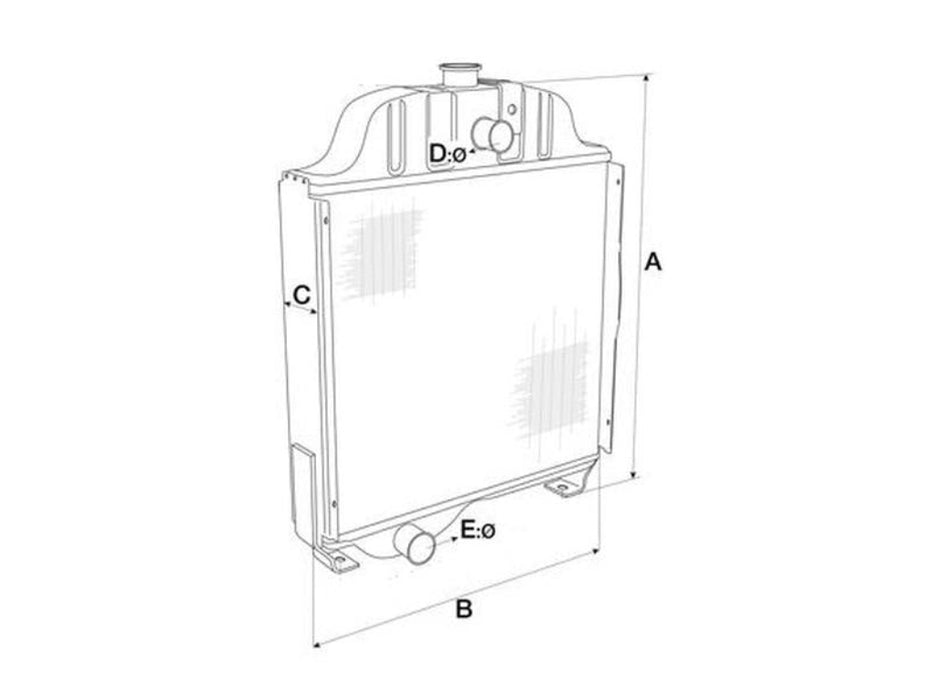

Specifications

• Overall Height (A): 505mm
• Overall Width (B): 360mm
• Thickness (C): 85.4mm
• Inlet Diameter (D): Ø35mm
• Outlet Diameter (E): Ø35mm
• Core Height: 333mm
• Core Width: 330mm (12-63/64")
• Core Thickness: 50mm (1-31/32")
• Supplied with Radiator Cap: Yes
• With Intercooler: No

OEM Part Numbers

Suitable For Make/Model
