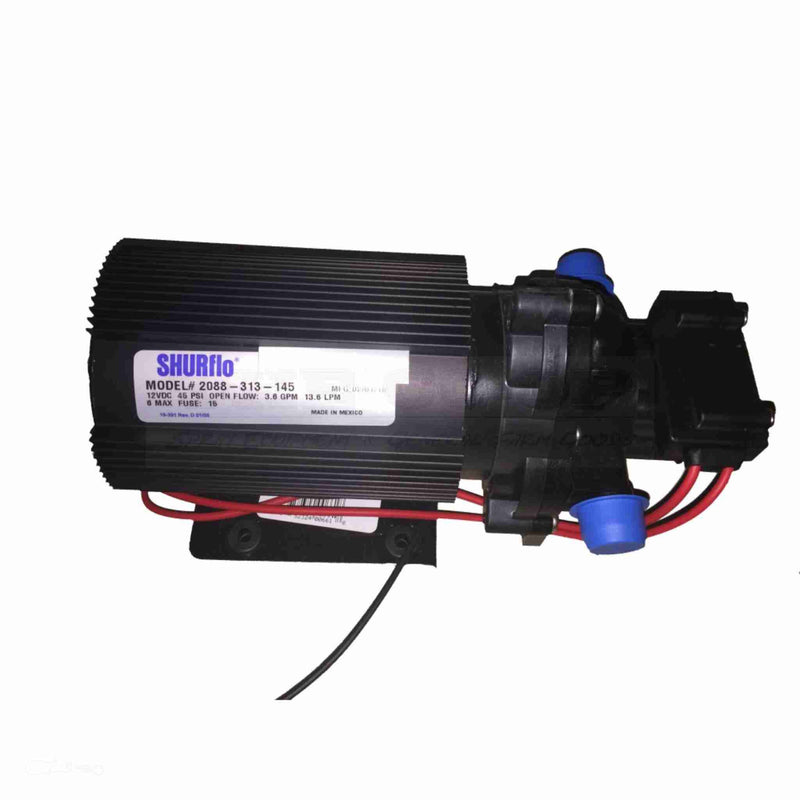

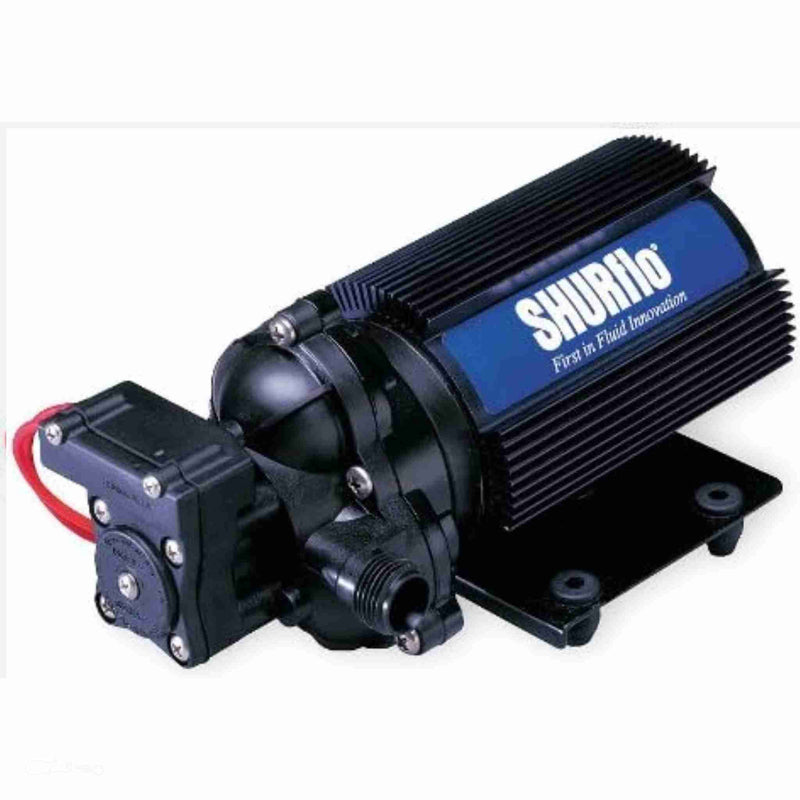

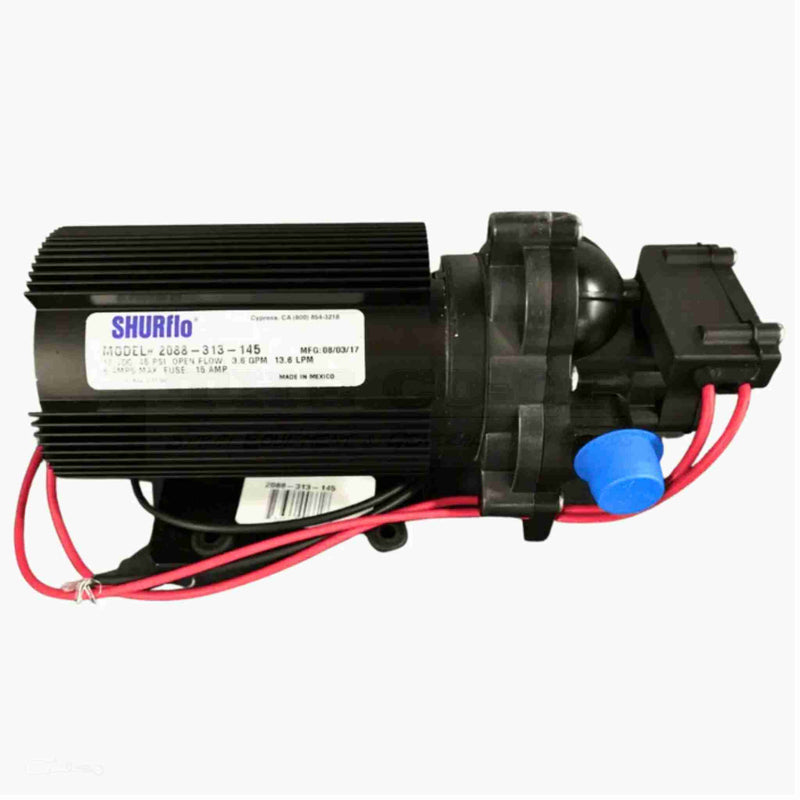

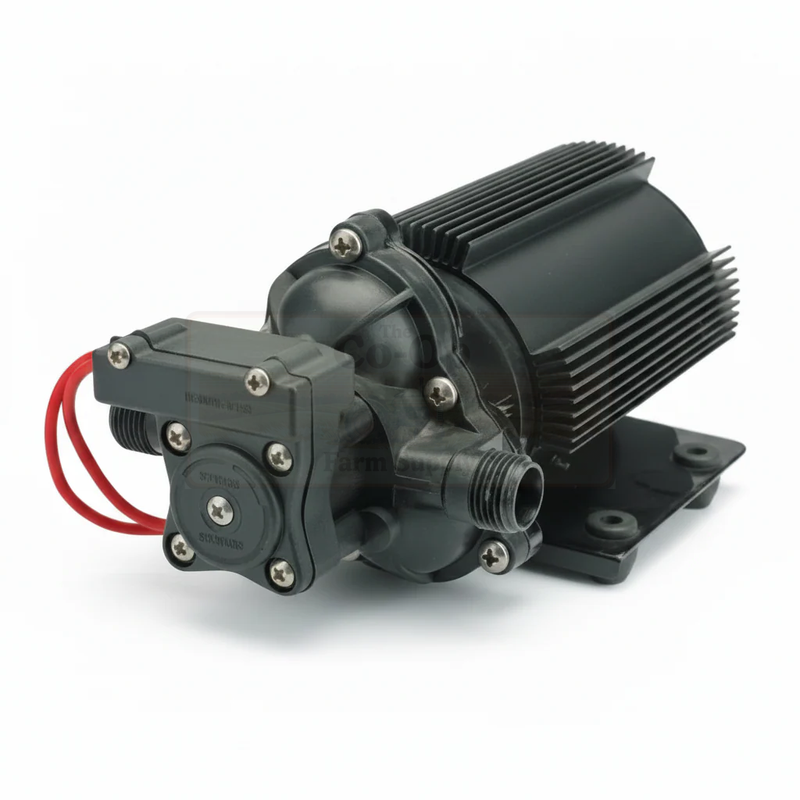

SHURflo 2088-313-145 13.6 L/min 3 Bar (45 psi) - CONTINUOUS DUTY

Original price $488.50 - Original price $488.50
Original price
$488.50
$488.50 - $488.50
Current price $488.50

The SHURflo 2088-313-145 is a heavy duty pump designed for continuous use in spraying and fluid transfer applications, featuring Viton© valves for added chemical resistance. Ideal for boom and spot spraying with bypass agitation systems.

  • Premium Pump with Cooling Fins
  • 13.6 LPM Open Flow
  • 12VDC Continuous Duty
  • Viton© Valves
  • Santoprene Diaphragm
  • 3 Bar (45 PSI)
  • Demand Switch (adjustable 30-50 PSI)
  • 1/2" MSPT Ports
  • Polypropylene Housing
  • Rubber mounted base

Specifications:

  • Positive Displacement 3 Chamber Diaphragm Pump
  • CHECK VALVE: (1-Way Operation) Prevents Reverse Flow
  • CAM: 3.0 Degree
  • MOTOR: Permanent Magnet, P/N 11-185-06, Thermally Protected
  • VOLTAGE: 12 VDC Nominal
  • PRESSURE SWITCH: Adjustable from 30 to 50 PSI. Factory Set @ 45 PSI Shut-Off, Turn On 25 PSI 5 PSI
  • LIQUID TEMPERATURE: 170 Degrees Fahrenheit (77 Degrees Centigrade) Max.
  • PRIME: Self-Priming Up To 8.0 Ft. Vertical, Max. Inlet Pressure 30 PSI (2.1 Bar)
  • PORTS: 1/2"-14 Male Parallel Thread MATERIAL OF CONSTRUCTION:
  • PLASTICS- Polypropylene
  • VALVES- Viton
  • DIAPHRAGM- Santoprene
  • FASTENERS- Stainless Steel
  • NET WEIGHT: 6.8 Lbs (3.1 Kg)
  • DUTY CYCLE: Continuous (See Temperature Rise Chart)
  • TYPICAL APPLICATIONS: Agricultural Spraying
