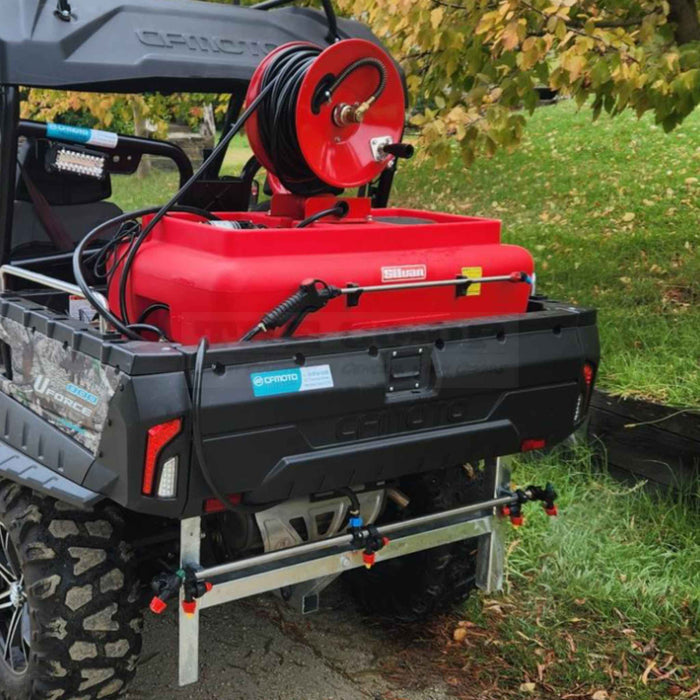

Silvan multi purpose Spray boom (Up to 7m spray width)

The Silvan multi purpose spray boom is perfect for many jobs. Equipped with a Hayman Reese attachment and independent nozzle on/off, you can set the adjustable spray boom to a height that suits you and the job. It also features non-drip nozzles and adjustable angle end nozzles, making it ideal for firebreak and fence line spraying.

Frame:

• Constructed from: RHS Welded Steel
• Finish: Hot Dip Galvanized for corrosion resistance
• Boom Width: 120cm
• Fits inside the wheel track of many Side-by-Side Vehicles

Spray Lines:

• ½ “Stainless Steel spray tube

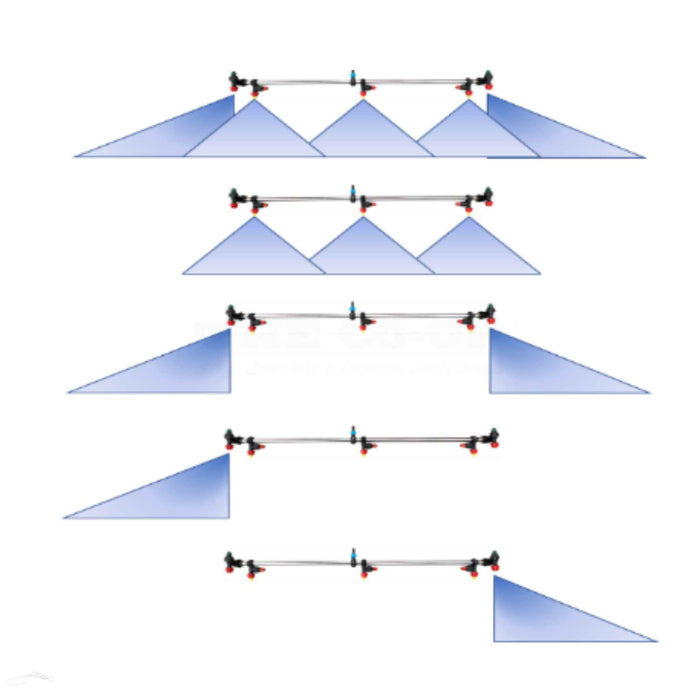

• All 5 nozzles can be independently turned ‘on and off’
• 3 x AIXR11002-VP Air Induction Nozzles fitted to non-
drip nozzle bodies at 50 mm spacings
• 2 x OC-04 Off Centre End Nozzles
• Spray Width up to 7 m
• Five adjustable boom height positions

Pump requirements:

• Minimum of 7 L/min pump required (larger volume pumps may require a pressure regulator to ensure consistent flow and no pulsation)
