Silvan Stage B Inline Suction Filter 1-1/2" BSP - 180 L/min Capacity

Premium Italian-engineered inline suction filter designed for agricultural spray systems and liquid transfer applications requiring reliable particle filtration at high flow rates.

Key Specifications

• Flow Capacity: Up to 180 L/min
• Port Size: 1-1/2" BSP threaded connections
• Cartridge Dimensions: 107 x 200 mm
• Mesh Rating: 50 mesh standard
• Application: Suction-side filtration only

Construction & Materials

• Durable polypropylene body for chemical resistance
• Brass fixing inserts for secure, long-lasting connections
• Replaceable filter screens for cost-effective maintenance
• Italian manufacturing quality and precision

Technical Notes

Important: This unit is engineered specifically for suction applications. Do not use on the pressure side of pumping systems.

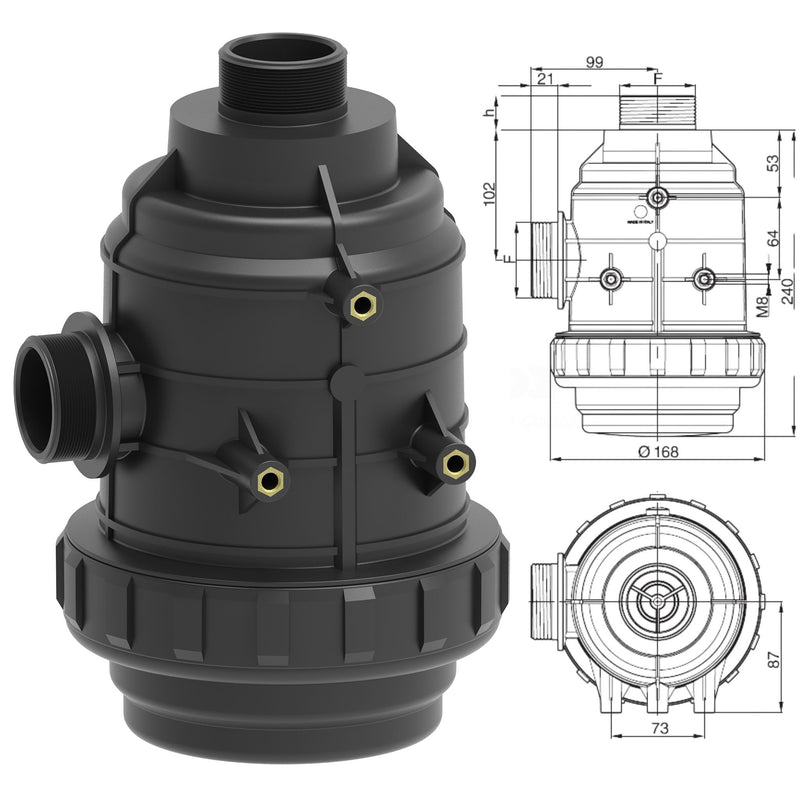

Dimensional Reference: inlet thread length (h) = 24 mm | Female Port (F) = 1-1/2" BSP

Replacement screens available separately in 32 or 50 mesh configurations to suit your filtration requirements.
