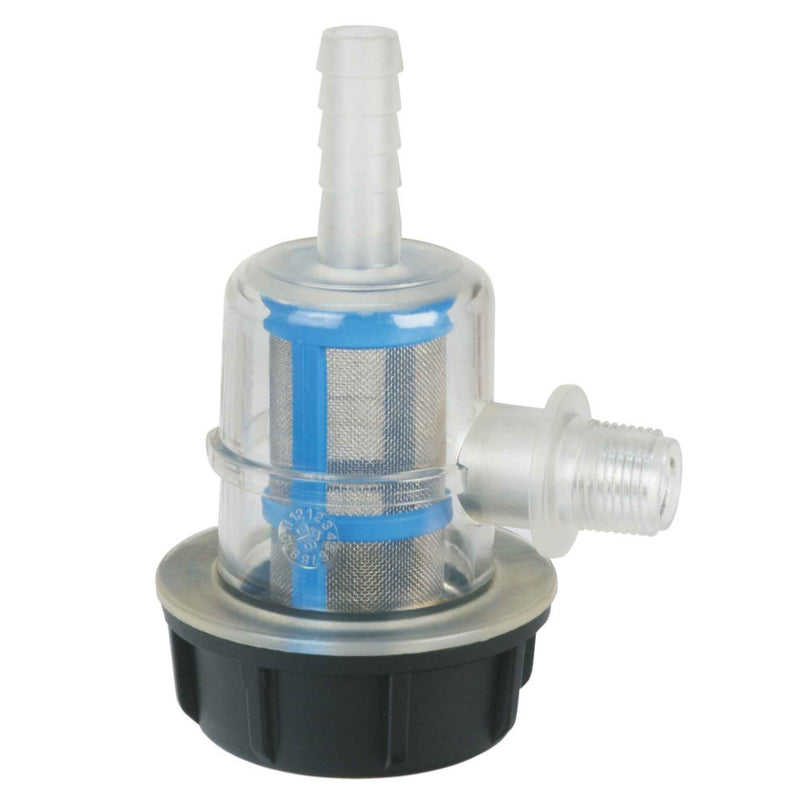

3/8 Male Thread 12v Pump Suction filter

Suction filters increase longevity of your 12v pump and components by reducing unnecessary premature wear and blockages.

Large screen area, the screen is reinforced against collapsing as can occur, its easily serviced and will assist in ensuring better productivity and longer pump life.

Filter screen is 50 mesh, its also easily removed for service.

Connects straight to the pump inlet and is fitted with a 3/8" Male thread.
The larger size filter screen means longer service intervals.

• PP made
• EPDM gaskets
• Plastic frame Stainless steel cartridge Ø 27 x 69 mm
• Filtering capacity 20 lt/min


Suits

Delavan 7812-201
Delavan 7812-301

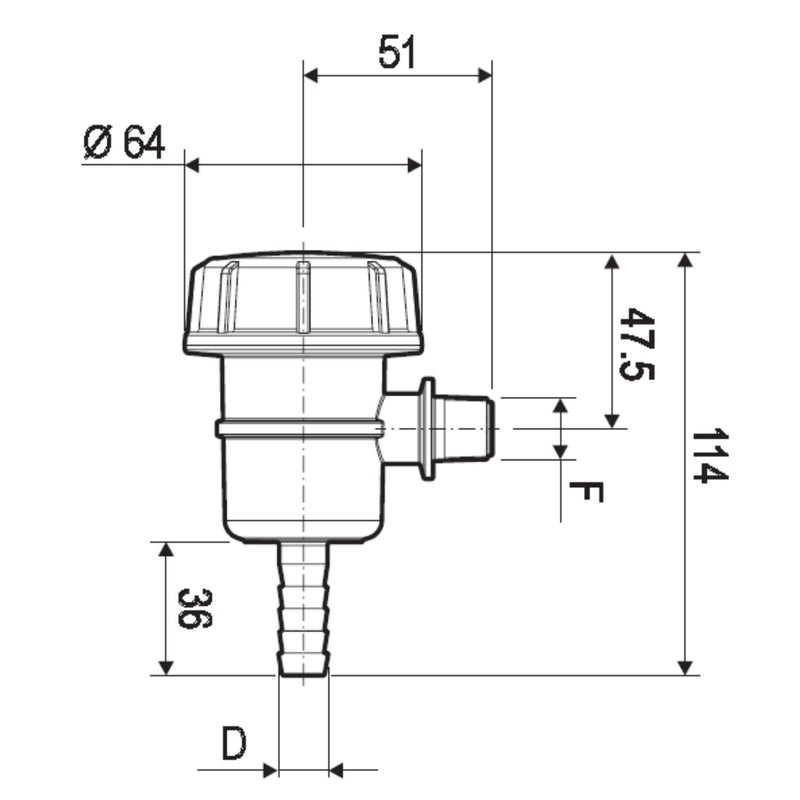

Image references

• D = 13 mm
• F = 3/8" BSP
